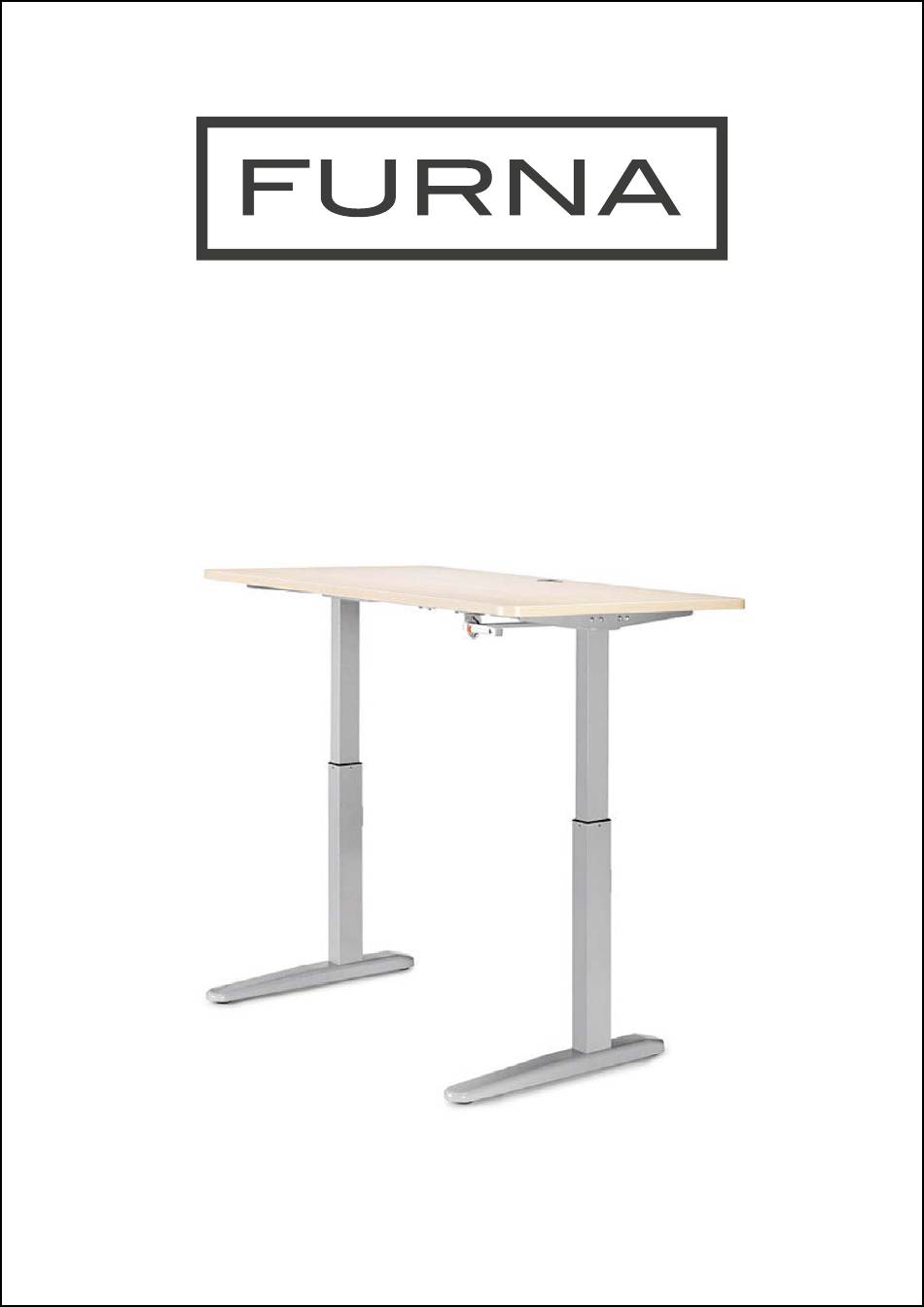

- Page 1 HE M IN G WAY M A N U A L STA N DI NG D E S K A S S E M B LY G U I D E M OD E L F N A H W Y F R M...
-
Page 2: Parts List
Parts List Frame shoulder support Qty 2 Foot Qty 2 Top Support Bar Qty 2 Main Axle Qty 2 Leg 2 Leg 1 Qty 1 Qty 1 Handle Qty 1 Shoulder connector Qty 2 Leg support bar Handle support Qty 1 Qty 1 Main axle connector Qty 1... - Page 3 1 Installation of legs and feet Erection Sequence: 1,2,3,4 Note: There is a welded bracket with two screw holes on the back of each leg. Make sure they both face the REAR of the desk (they should face away from the “long”...
-
Page 4: Frame Mount Installation
Installation preparation: Lower legs to minimum height Use the crank handle (J) to insert directly in to the heads of the two legs to wind them down to their lowest position. Do not wind hard, just until there is resistance meaning they are at the bottom. - Page 5 4 Cross beam installation Erection Sequence: 1,2,3 Insert the shoulder connector to connect both Parts used: sides of the desk frame as shown in picture. Use 8 x bolts (B) and secure loosely in place. Do not tighten at this stage. Note: Disregard any small round hole drilled into Part(s) K.
-
Page 6: Axle Installation
5 Axle installation Insert 1 Main Axle on each end of the Main Axle Connector Main Axle Main Axle Main Axle Connector Insert in to the frame as shown in picture. Each end of the Main Axle should be inserted through the crank mechanism(s) in the top of each leg. Open the black plastic leg/mechanism cap to make sure they connect to the mechanism inside properly, then tighten the black screws on the Main Axle Connector to keep it in place... - Page 7 6 Desk top mounting rails Erection Sequence: 1,2,3 Take both Top Support Bars and mount on each end of the frame as shown in picture, using 4 x A bolts on each one. NOTE: Make sure that the 3 holes are facing upwards and outwards from the frame.
- Page 8 7 Crank handle installation Axle Handle Part F The crank handle will now be installed on the right hand leg. First, assemble the Handle Connector parts needed as shown in the picture. Handle Support Part N: 2 lengths available depending on customer’s requirement. Only 1 needs to be used.
-
Page 9: Desktop Installation
Parts used: using 6 x F bolts. If you received a Furna table top without predrilled holes, you will have 6 extra wood tapping screws that can easily be drilled in to attach the desk top. In... - Page 10 9 Optional horizontal stability bar Erection Sequence: 1,2,3 NOTE: This is an optional addition to increase stability where needed. You can do this as the very last step if you choose to. Take the Leg Support Bar (two pieces of metal that slide together), and insert 2 x A bolts through the middle cutout, then fix them...
-
Page 11: Need Help
Need help? Get in touch my emailing contact@furna.co.uk or by using our Live Chat feature on our website!
