Summary of Contents for FURNA E1

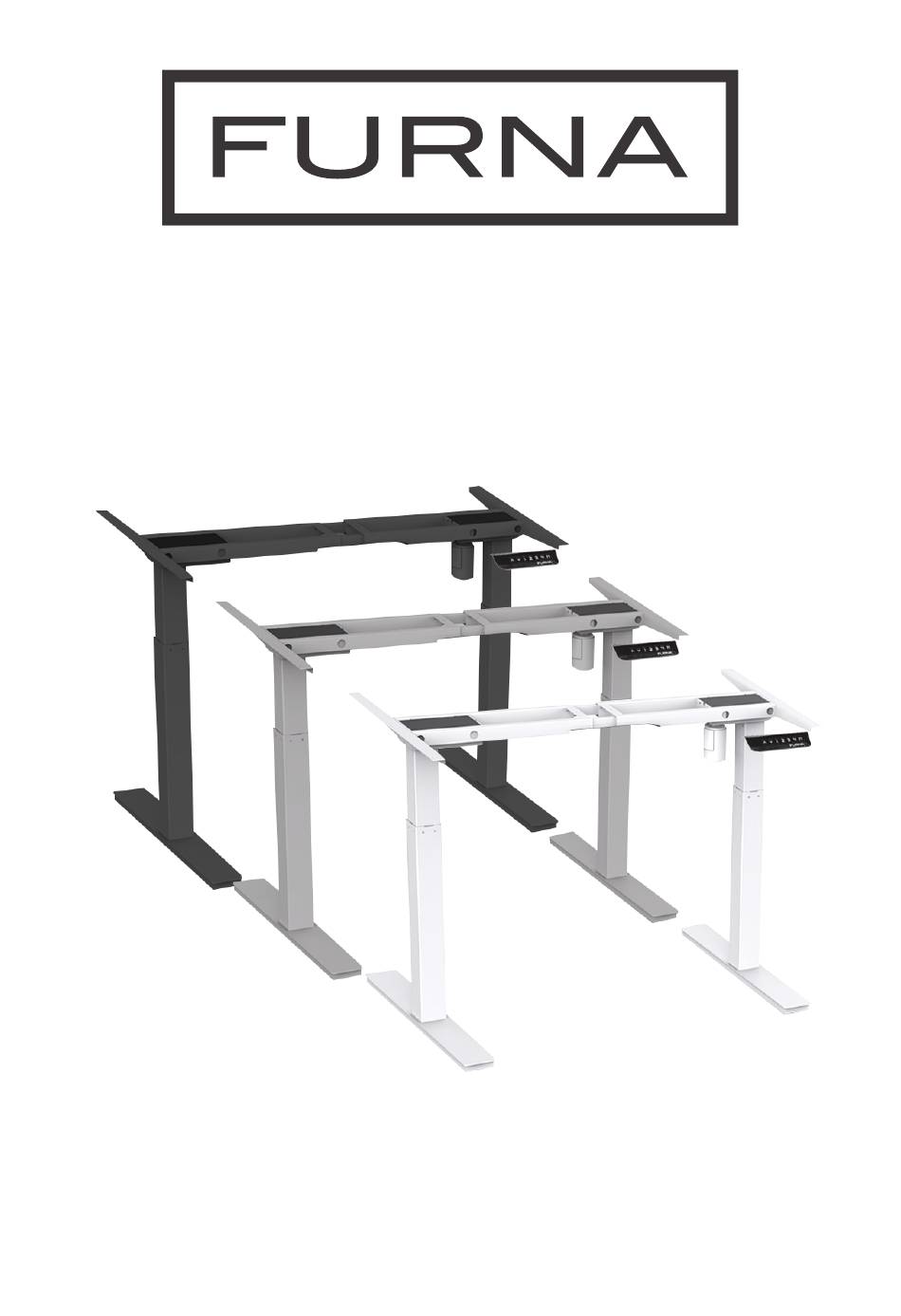

- Page 1 FURNA E1 ASSE M B LY G UI D E MODEL F NA E 1F RM 18XX X...
- Page 2 PARTS & TOOLS LIST Name Name Support Beam Axle 1set Foot Pad 2.5mm Hex Spanner Foot Margin 4mm Hex Spanner M8x16 Screw 5mm Hex Spanner Bracket Rubber Cushion M6x14 Screw Spanner Lifting System 1set ST3 5x19 Screw M8x14 Screw ST4 8x19 Screw...
- Page 3 STEP 1 Loosen the 4 screws using the hex spanner, so the frame can adjust to the desk top size as/when needed 4mm Hex spanner M6x14 8pcs STEP 2 Attach legs to the support beams using the parts shown...
- Page 4 4mm Hex spanner 8x16 screw 8pcs Foot pad 4pcs STEP 3 Attach the feet and then the foot levelling pads 4mm Hex spanner Rubber Cushion 6pcs 6x12 screw 4pcs STEP 4 Switch the frame to the upright position and attach the top support brackets...
- Page 5 STEP 5 Loosen the nut on each end of the axle (Part 9) and insert the inner hex- shaped rods into both legs. Once fully inserted into both, tighten the nuts on the Part 9 axle Main Leg There is a 1cm gap between the nut and metal plate.
- Page 6 STEP 7 Screw in the frame and control box to the under side of the desk top as shown using Part 16 (larger) wood screws. Position of control box is flexible based on preference though usually goes in the position shown, or further towards the back of the desk (when standing upright) Once in position, tighten the...
-
Page 7: Need Help
Need help? Get in touch by emailing contact@furna.co.uk or by using our Live Chat feature on our website!
