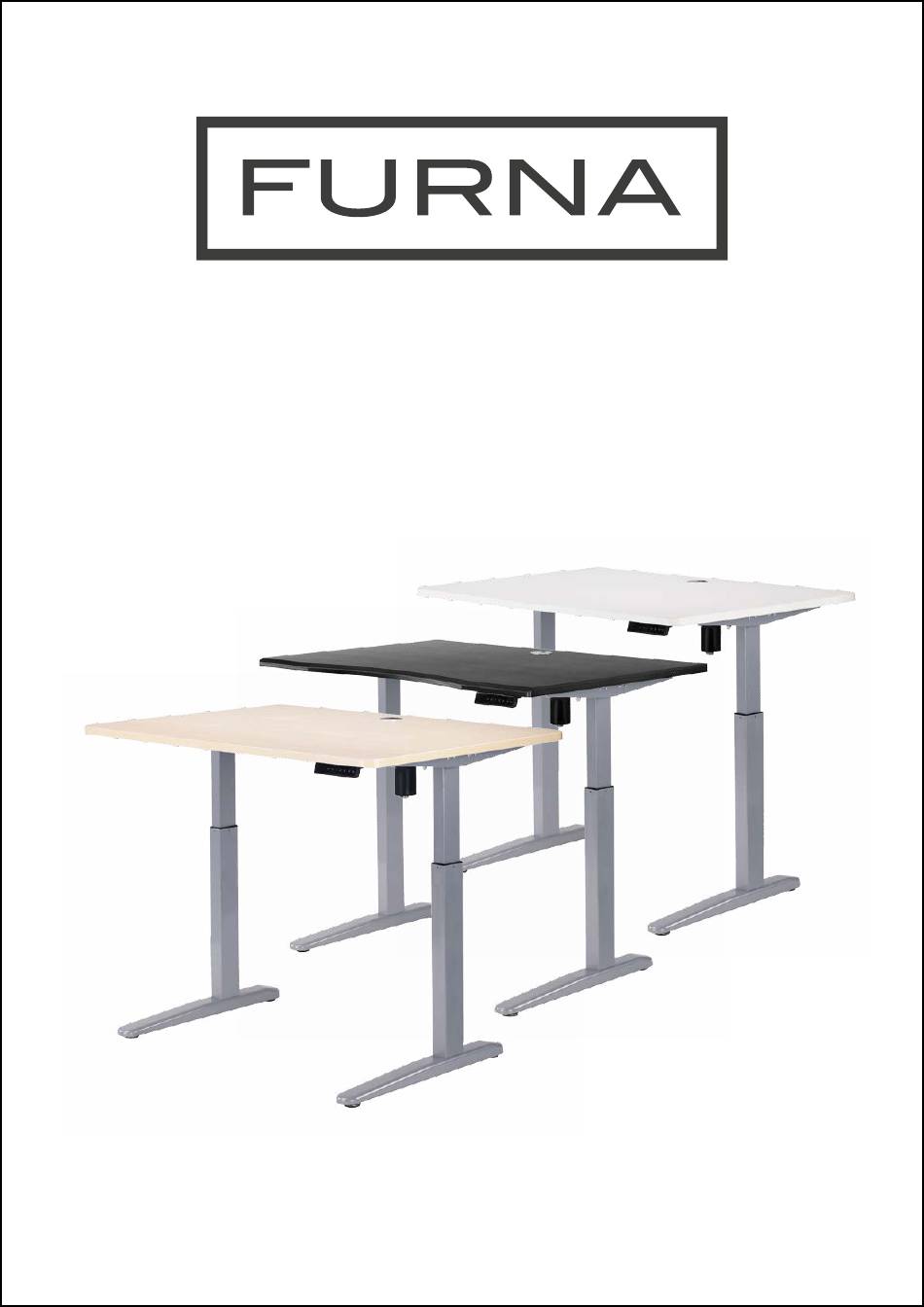

- Page 1 E lec t r ic S t an d i n g D e s k A S S E M B LY G U I D E MOD E L F N A E 1 F RM X X X 3...
-
Page 2: Parts List
Parts List Foot Frame shoulder support Qty 2 Qty 2 Main axle Qty 2 Leg 2 Qty 1 Top Support Bar Main axle connector Qty 2 Qty 1 Leg 1 Qty 1 Leg support bar Qty 1 Control Box Qty 1 Shoulder connector Qty 2 Control Panel... - Page 3 1 Installation of legs and feet Erection Sequence: 1,2,3,4 Note: There is a welded bracket with two screw holes on the back of each leg. Make sure they both face the REAR of the desk (they should face away from the “long” part of the feet).
-
Page 4: Frame Assembly
Frame assembly Part One Erection Sequence: 1,2 Connect both frame shoulder supports to the desk legs Parts 1 & 2 as shown in picture. Use Part A (M6 X 15MM bolts) and loosely tighten in place. Parts used: Qtyx8 Frame assembly Erection Sequence: 1,2, 3 Part Two Slide the shoulder connectors... -
Page 5: Axle Assembly
4 Axle assembly Erection Sequence: 1,2,3,4 Change to: Slide the two main axle bars part way into each end of the main axle connector tube. Then, position the full (3 parts) axle between the two legs Parts used: and thread the axles through the gear mechanism in each leg. - Page 6 5 Desk top supports assembly Erection Sequence: 1,2,3 Attach both Top support Bars (desk top supports) to each end of the desk frame using Part A bolts and then tighten. Part used: Top support bars Qtyx8...
- Page 7 6 Desk top attachment Turn the desk top upside down and lay flat on the floor, and put the frame on upside down on top of it for this part. Set the frame to the width that suits you and the table top (we Parts used: recommend within about 5cm from each side).
-
Page 8: Control Panel
7 Install control box & control panel Using the diagram as a guide, you may now connect the motor to the control box, and the control panel. The exact position of the control box and control panel are at your discretion. Once you have selected these positions, you can screw them in place using the remaining Parts F (tapping screws). - Page 9 8 Optional: Support bar/ modesty panel This is an optional attachment for increased stability. Firstly attach the support bar to the legs using 4 x C bolts. Once the bar is attached, use Parts C and D and screw tightly to hold in the middle cutout section. Leg Support Bar Qtyx2 Qtyx4...
- Page 10 Once the height is reached and while the LED panel is flashing, simply press one of the number buttons (1, 2, 3 or 4) and that button will then automatically adjust the desk to the set height. Congratulations, you’re ready to use your Furna E1 desk!
-
Page 11: Need Help
Need help? Get in touch by emailing contact@furna.co.uk or by using our Live Chat feature on our website!
