Summary of Contents for Hyundai HYSC210

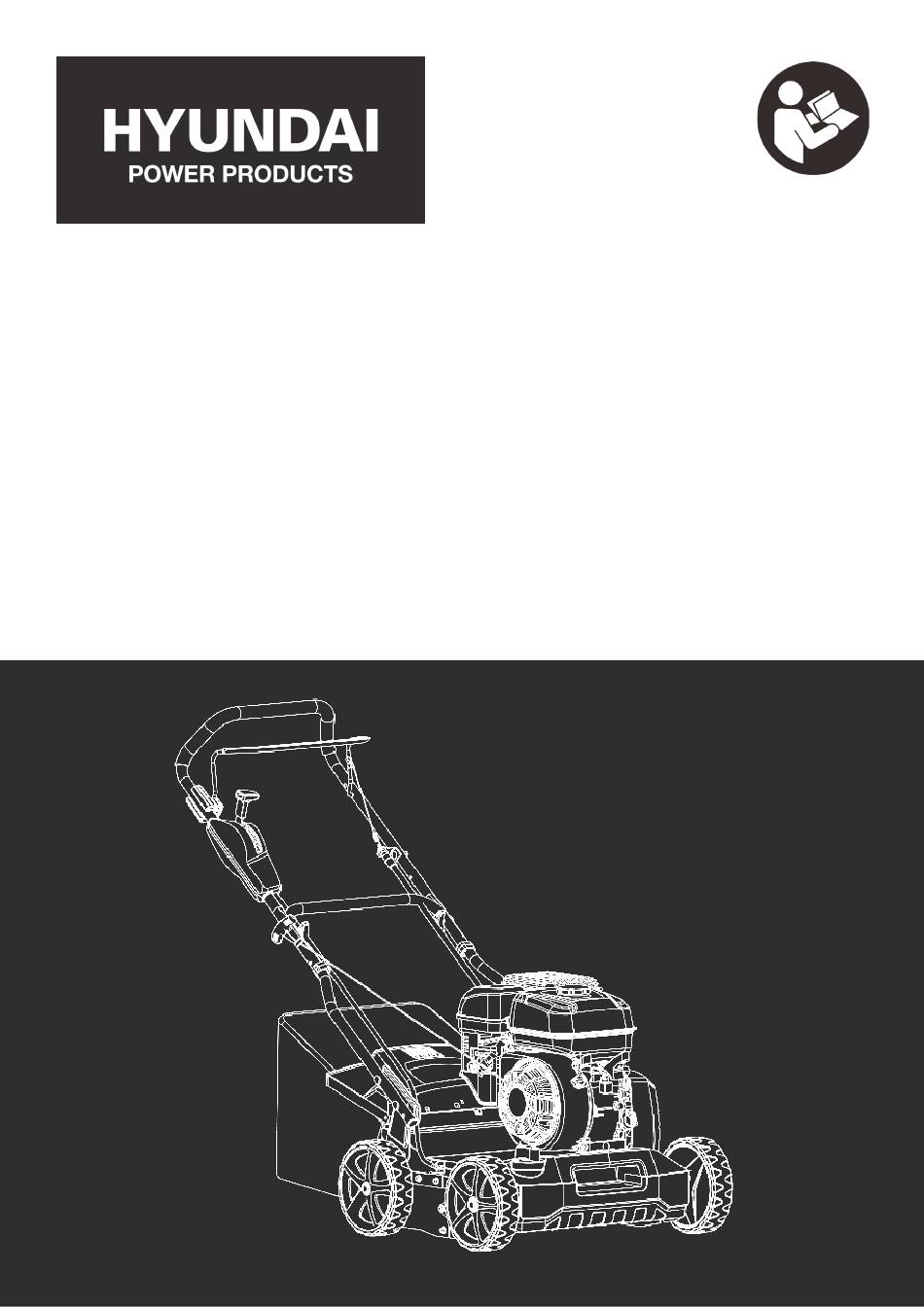

- Page 1 PETROL LAWN SCARIFIER & AERATOR HYSC210 Instruction Manual...
- Page 2 We would be delighted if you left us positive feedback! Thank you for purchasing this product. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Filling The Fuel Tank....................25 Storage And Transport…………………………………………………………..30-31 Disposal……………………………………………………………………………....32 Spare Parts……......................33 What Is Scarification....................34 Our Product Range....................35 Useful Information.....................36 Notes........................37 Contact Us........................38 Declaration Of Conformity..................39 IMPORTANT: DON’T FORGET TO REGISTER YOUR EXTENDED 3 YEAR HYUNDAI WARRANTY WITHIN 30 DAYS OF PURCHASE. https://www.hyundaipowerproducts/warranty... -
Page 4: Features
7 - Working Depth Height Adjustment Knob 8 - Wheels 9 - Grass Collector 10 - Recoil Starter Handle 11 - Transport Lever What’s In The Box • HYSC210 Petrol Scarifier • Aerator Attachment • 45L Grass Collector • Assembly Tools • User Manual... -
Page 5: Symbols On The Machine
Symbols On The Machine CAUTION! WARNING! Handle carefully. Remove the spark plug cable from the spark plug before commencing maintenance work. Always read instructions before carrying out any DANGER OF THROWN OBJECTS! repair or maintenance. Keep all bystanders and animals at least 15 metres away from the DANGER! machine during operation. -
Page 6: General Safety
General Safety WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. Training carried out. The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes DANGER... - Page 7 General Safety The excessive speed of movement or the machine away from the area of spilled fuel and absence of maintenance have a significant avoid creating any source of ignition until the influence on noise emissions and vibrations. fuel has evaporated and fuel vapours have It is necessary to take preventive steps to dissipated.
- Page 8 General Safety General Fuel Safety Electrical Safety (Where Applicable) CAUTION! ALL FUELS ARE FLAMMABLE • Electricity can kill – NEVER work on LIVE/ENERGISED equipment. • Fire hazard - keep fuel away from all sources of ignition for example heaters, • Prior to carrying out any maintenance work lamps, sparks from grinding or welding.
- Page 9 General Safety You must advise the medical staff of the type and other diseases that affect blood vessels of acid. and blood circulation as well as large and long-lasting impact of shocks are considered • Lead/acid battery = dilute sulphuric acid. factors in the formation of white finger.
-
Page 10: For Safe Operation
For Safe Operation 2. You must only work in daylight or with good During Use artificial light in good visibility conditions. Keep people, children and animals away from the 1. Never operate the engine in a confined working area. space where dangerous carbon monoxide fumes can develop. - Page 11 For Safe Operation deflectors and/or grass catchers, in place. - Before adjusting the working height 13. You must be careful near ravines, ditches 26. Always keep a safe distance from the or embankments. blade, given by the length of the handle. 14.
-
Page 12: Getting To Know The Machine
Application Any other usage not in keeping with the above mentioned ones may be hazardous and harm The HYSC210 is a petrol lawn scarifier from persons and/or damage things. Examples of Hyundai, ideally suited for small to medium improper use may include, but are not limited sized lawns. - Page 13 Getting Started CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI scarifier. We always advise reading the manual in full before operation. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide –...
-
Page 14: Assembly
Assembly STEP 4 You must read the assembly safety on the previous page before you begin. STEP 1 Attach the upper handle to the lower handle by sliding the bolt through both handlebars. STEP 5 Attach the lower handle to the mounting bracket on the scarifier deck by sliding the bolt through the lower handle bar and through one of the 2 different handlebar height holes... - Page 15 Assembly STEP 7 STEP 10 Lift the rear discharge flap and hook the grass Attach the cable clamp around the cable and catcher over the back of the scarifier. fix to the handlebar. STEP 8 STEP 11 Manoeuvre the grass collector into position Slowly pull the recoil starter handle up to the ensuring it is hooked firmly in place.
-
Page 16: Cable Attachment
Cable Attachment Cable Attachment STEP 3 NOTE - If you are stood behind the lawnmower: OPC Cable: This attaches to the lever in front of the main handlebar and if followed, will attach to the engine. STEP 1 Position the cable until it lies flat in the lever. -
Page 17: Before Each Use
Starting Procedure Cold Start CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – a poisonous, colourless and odourless gas that STEP 1 can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area. NOTE - This machine is shipped without fuel and oil and MUST be filled before use. -
Page 18: Starting Procedure
Starting Procedure Warm Start STEP 4 STEP 1 Repeat the cold start procedure but leave the choke in the ON position. Pull back and hold the Operator Presence Control lever towards the main handle. STEP 5 Gently pull the recoil starter handle until you feel resistance, then pull swiftly until the engine starts. -
Page 19: After Each Use
Stopping Procedure CAUTION - The engine and exhaust will STEP 3 remain hot for a while after use. Ensure the engine and exhaust has cooled before carrying out any maintenance, refuelling or storage. After Each Use • Examine the machine for damage. •... -
Page 20: Adjusting Working Depth
Using The Machine CAUTION - Do not make any adjustment STEP 3 to the scarifier without stopping the engine first. NOTE - Check the oil level before operation. Adjusting Working Depth The scarifier is equipped with a working depth adjustment lever offering multiple working Move the transport lever to the transport depths. -
Page 21: Troubleshooting
Troubleshooting NOTE - Where necessary, all corrective actions should be carried out by suitably qualified persons. Problem Possible Cause Possible Corrective Action Engine does not start Throttle choke is not in the Move throttle choke to correct correct position position Fuel tank is empty. -
Page 22: Specifications
Specifications NOTE - All machines are tested and inspected so there may be some residual oil left in the machine so please fill with caution. Model HYSC210 Engine Type Single Cylinder OHV Engine Size 210cc Nominal Power Engine Speed 2800rpm Fuel Tank Capacity 3.6L... -
Page 23: Maintenance And Care
Maintenance & Care Safety sharpening. All work on the blade (disassembly, sharpening, balancing, 1. WARNING - Before cleaning or doing re-assembly and/or replacing) should be maintenance work, you need to disconnect carried out at a specialised centre as they are the spark plug cable and read the relevant demanding jobs that require special skills and instructions. - Page 24 Maintenance & Care Routine Maintenance 6. It is highly recommended to change the IMPORTANT - Routine and accurate engine oil every 100 hours or 12 months. This maintenance is essential for maintaining will ensure the machine will function properly original machine safety and performance over time.
-
Page 25: Checking Oil Level
Checking Oil And Fuel Filling The Fuel Tank Checking Oil Level CAUTION - ALL FUELS ARE FLAMMABLE 1. Remove the oil filler cap and wipe the dipstick clean. ALWAYS fuel and defuel in a well ventilated 2. Refit the dipstick without screwing it down. area outside of buildings. - Page 26 Maintenance & Care The Spark Plug STEP 7 Refit the cleaned and adjusted speak plug by hand to avoid cross threading then lightly STEP 1 tighten with a plug spanner. You MUST allow the engine to cool down STEP 8 before carrying out any maintenance.
- Page 27 Maintenance & Care Air Filter STEP 3 Inspect the air filter and if it shows any signs CAUTION - A dirty air filter will restrict the of damage or wear, replace immediately. air flow to the carburetor, which will reduce engine efficiency.
- Page 28 Maintenance & Care Blade Removal Fuel And Carburetor CAUTION - ALL FUELS ARE FLAMMABLE CAUTION - Drain the machine of fuel before removing or replacing the blade. ALWAYS fuel and defuel in a well ventilated ALWAYS fuel and defuel in a well ventilated area outside of buildings.
- Page 29 Maintenance & Care STEP 4 STEP 3 Refit the shaft securing bracket and bolt back in to place. Check Belt Tightness Check belt tension (arrowed). There should be 10-15mm of movement. To tighten belt, STEP 1 loosen the centre pulley bolt and push pulley towards the front of the scarifier to take up slack and re-tighten centre bolt.
-
Page 30: Storage And Transport
Maintenance & Care Cleaning Storage CAUTION - DO NOT use a hose pipe or CAUTION - When storing the machine, pressure washer to clean the engine. Water make sure it has been cleaned as in the can damage the engine or contaminate the section before. - Page 31 Maintenance & Care Transportation And Handling 7. Remove the spark plug and pour 1 teaspoon of fresh engine oil down the cylinder bore. With the spark plug still removed, cover 1. Whenever the machine is to be handled, the spark plug hole with a lint free clean cloth, lifted, transported or tilted you must: ensuring no dirt or debris falls into the cylinder - Wear sturdy work gloves...
-
Page 32: Disposal
Maintenance & Care Recycling And Disposal This symbol means you should ‘Reduce - Reuse - Recycle’ We do not offer a takeback scheme for the recovery of We are a Member of the VALPAK Waste Electrical Electronic National Compliance Scheme and our Equipment (WEEE) &... -
Page 33: Spare Parts
Spare Parts Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible. Part Part Number Blade PAB003200... -
Page 34: What Is Scarification
About Scarification Scarification What Is Scarification? The steel blades are specially designed to Scarification is the removal of moss, lawn remove moss, thatch and dead grass. clippings and dead grass blades from the During use, the blades penetrate the ground stem of the grass to maintain a healthy to ensure the lawn absorbs nutrients better. -
Page 35: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumper / Power Barrow Motorhome Generators Yard Sweeper Pressure Washers Self Propelled Yard Sweeper Power Brush Petrol, Diesel And Electric Pressure Washers Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 36: Useful Information
Register your 3 year warranty within 30 days of purchase at: To leave a review, please go to: www.hyundaipowerequipment.co.uk/warranty uk.trustpilot.com/review/hyundaipowerequipment.co.uk Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS Ordering Spare Parts website: www.hyundaipowerproducts.co.uk Only use original spare parts: The Manual Updates... -
Page 37: Notes
Notes... -
Page 38: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. -
Page 39: Declaration Of Conformity
101dB(A) 105dB(A) 3400 scarifier Product Details Brand: Hyundai Model: HYSC210 Description: Petrol lawn scarifier Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by: Roland Llewellin, Managing Director... - Page 40 Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
