Parrot Uncle F4701 Installation & Operating Instruction

CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION. IF UNSURE CONSULT
A QUALIFIED ELECTRICIAN
SAFETY RULES
1. To avoid possible electric shock, turn off the electricity at the main fuse box or circuit panel before you begin the fan installation or before
servicing the fan or installing accessories.
2. Read all instructions and safety information carefully before installing your fan and save these instructions.
3. Make sure all electrical connections comply with local codes or ordinances and the National Electrical Code. If you are unfamiliar with electric
wiring, please use a qualified and licensed electrician.
4. Make sure you have a location selected for your fan that allow clear space for the blades to rotate, and at least seven (7) feet of clearance
between the floor and the fan blade tips. The fan should be mounted at least thirty (30) inches from walls or other upright structures.
5. WARNING: The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 pounds. To reduce
the risk of fire, electric shock or personal injury, mount to the outlet box marked acceptable for fan supported and use mounting screws provided
with the outlet box. The box must be supported directly by the building structure.
6. WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use
mounting screws provided with the outlet box most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
7. Electrical diagrams are for reference only. Light kits that are not packed with the fan must UL listed and marked suitable for use with the model
fan you are installing. Switches must be UL. general use switches. Refer to the instructions packaged with the light kits and switches for proper
assembly.
8. After installation is complete, check that all connections are absolutely secure.
9. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
10. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device, or rheostat.
11. Do not insert anything into the fan blades while they are rotating.
12. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as "flanges") during assembly or after
installation. Do not insert objects in the path of the blades.
13. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
14. Do not use water or detergent when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
15. The fan is suitable for indoor use only.
16. Please do not use the fan in a specific environment like high temperature environment, high radiation environment, lampblack or
other abnormal use environments.
NOTE: Please do not use the fan in a specific environment like high temperature environment, high radiation environment, lampblack or other
abnormal use environments.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.
NOTE: This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities are different or
are impaired, or lack of experience or knowledge, unless such persons are supervised or trained to operate the appliance by a person responsible
for their safety.
NOTE: Children should be supervised to ensure that they do not use appliances as a toy.
TECHNICAL INFORMATION
SKU Rated Voltage
F4701 110-120 VAC
INSTALLING THE FAN
Tools Required: Phillips screwdriver, Pair of pliers, straight slot screwdriver, adjustable wrench, step ladder, and wire cutters.
INSTALLLING THE MOUNTING BRACKET
The ceiling fan must be installed in a location so that the blades are 12"( 300mm) spacing from the tip of the blade to the nearest objects or walls. When hanging the Fan REMEMBER to turn off the
power. Follow the instruction below to hang your fan properly:
1. For concrete ceiling, drill two holes in
the ceiling and secure the mounting
bracket to the ceiling with two
Φ0.32"(8mm)（distance between the
two holes should be appropriate）
expansion screws, flat washers,nuts
provided and tighten with a spanner.
NOTE:Hanger after the installation must be able to withstand the weight of 45kg or more
Parrotuncle Lighting, 218 Black Tie Lane, Chapel Hill, NC
Parrot Uncle YOU CAN BE SURE OF are trademarks of Eileen Grays LLC.
Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all
Rated power(motor) . Light CCT.
56W 6xE12 Max. 25W
2. For wood ceiling, Secure the
mounting bracket to the ceiling is
capable of carrying a load of at least
100lbs(45kgs) with two long mounting
screws and washers provided. Be sure
at least 0.12"(30mm) of the screw is
threaded into the support.
www.parrotuncle.com
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
THANK YOU FOR YOUR PURCHASE
instructions before using the product
BEFORE INSTALLATION

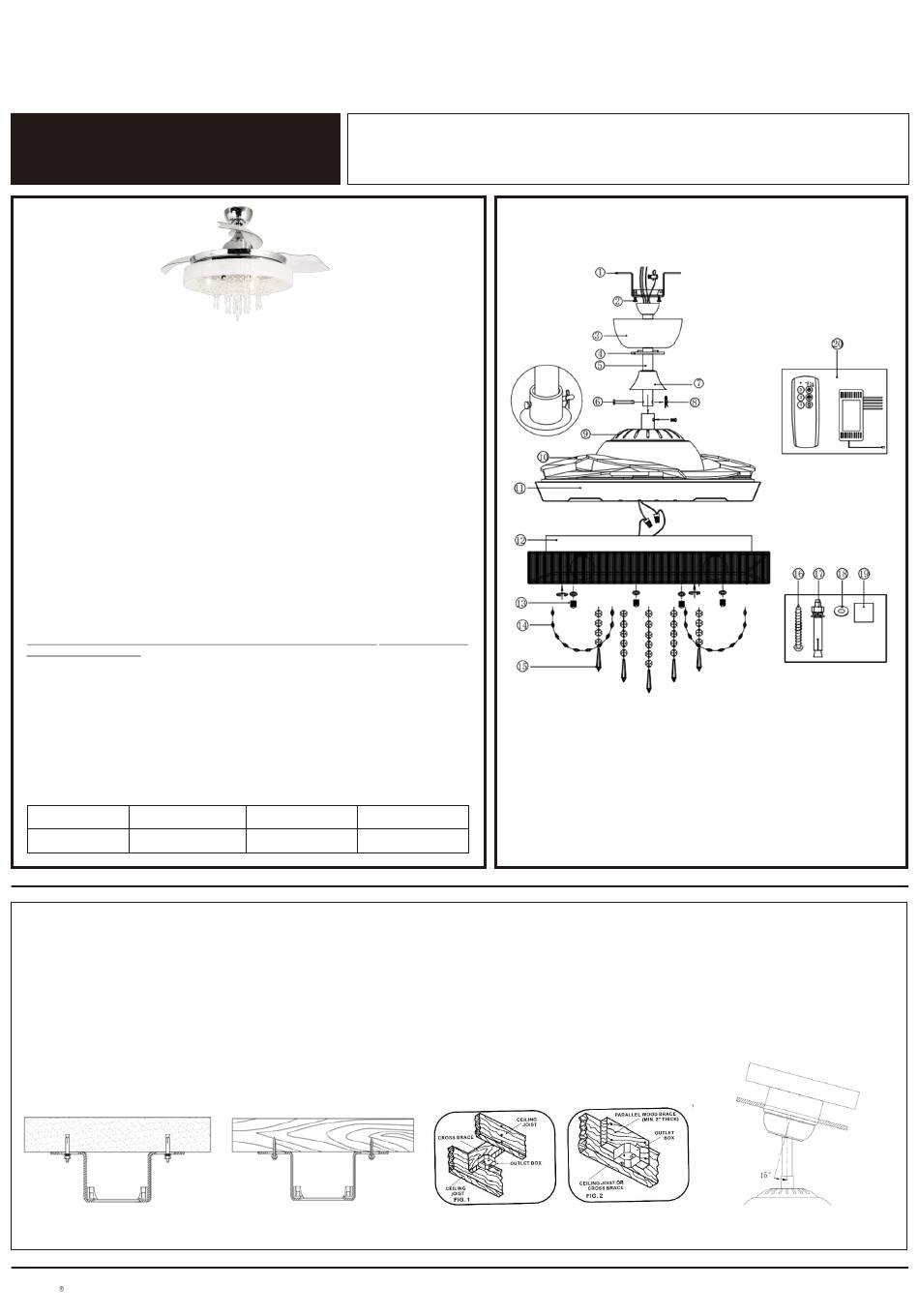

Unpack your fan and check the contents.You should have followings:
1. Mounting Bracket
2. Canopy screws
3. Canopy
4. Decorative canopy cover
5. Downrod &hanger ball
6. Bolt
7. Coupling cover
3. For installing to outlet box, secure the outlet box
directly to the building structure. Use appropriate
fasterners and building materials. The outlet box and its
support must be able to fully support the moving weight
of the fan(at least 100lbs). Use a UL listed metal outlet
box. Do not use a plastic outlet box. Figure 1& 2
examples to mount the outlet box.
Used under license by Eileen Grays LLC.
Installation & Operating Instructions for the
Owner's Installation ,Manual
8. Pin 15. Crystal chain B
9. Top housing 16. Wood screws
10. Blades 17. Expansion screw
11. Fan motor assembly 18. Screw washers
12. Light pan 19. Balance tapes
13. Garnish nuts 20. Remote control
14. Crystal chain A
4. Refer to the Fig. in right for mounting
when the ceiling is angled max. 15
degree angle.
All rights reserved.
F4701
Made in China
