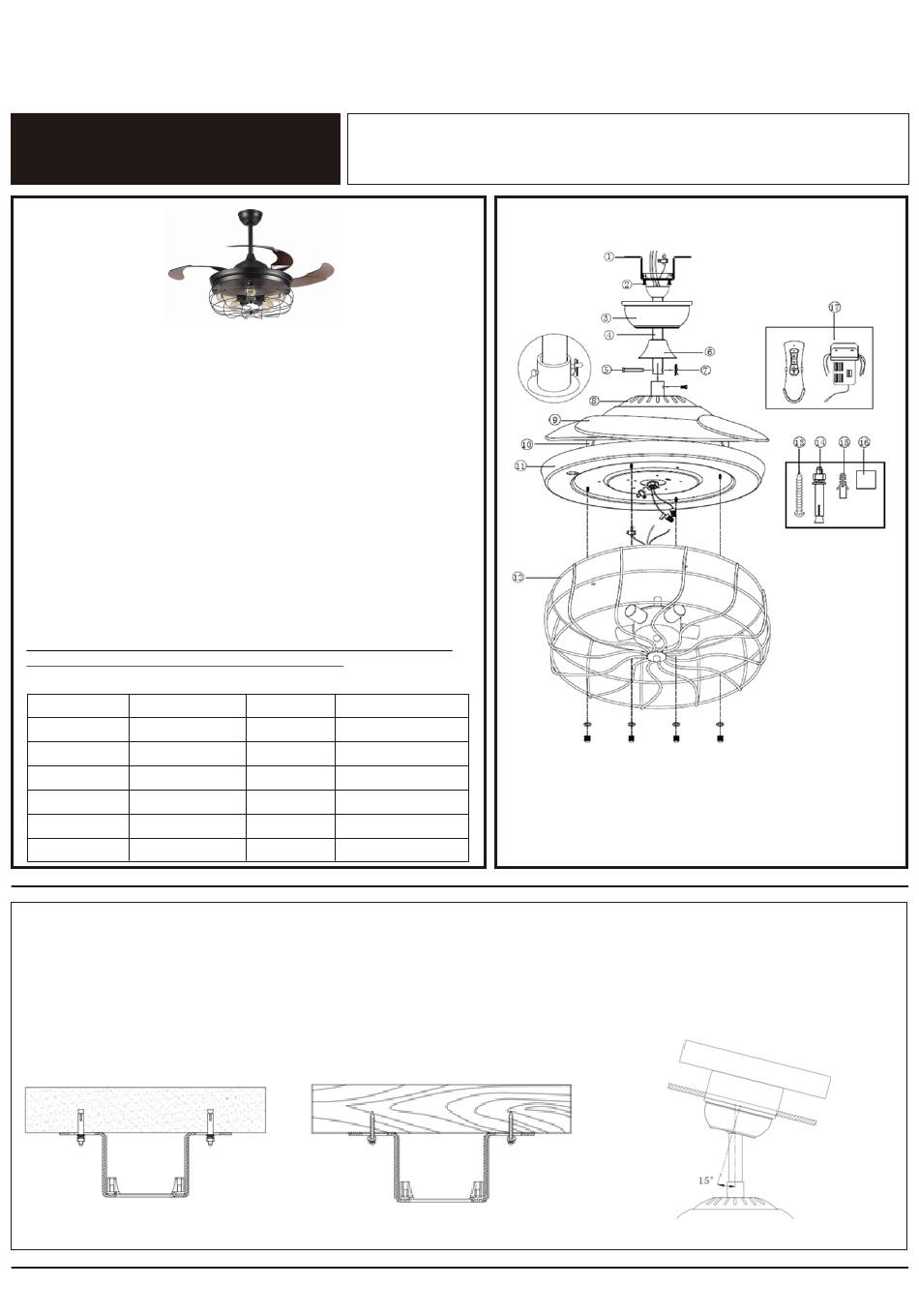

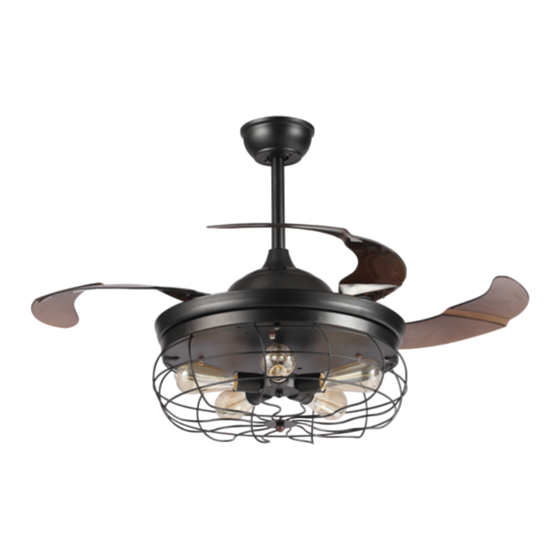

Parrot Uncle F4503 Installation & Operating Instructions

CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION. IF UNSURE CONSULT
A QUALIFIED ELECTRICIAN
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control
device.
4. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "Acceptable for
Fan Support of 45kg (99.12 lbs.) Or Less" and use mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of light fixtures are not acceptable for fan support and may need to be replaced. Due
to the complexity of the installation of this fan, a qualified licensed electrician is strongly recommended.
5. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of
45KGS. Use only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the
fan.
9. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will
be suitable for most cleaning.
10. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box.
11. Electrical diagrams are for reference only.
12. The fan is suitable for indoor use only.
Please do not use the fan in a specific environment like high temperature environment, high
13.
radiation environment, lampblack or other abnormal use environments.
TECHNICAL INFORMATION
SKU Rated Voltage
F4503 110-120V AC
F4503AG 110-120V AC
F4503DWH 110-120V AC
110-120V AC
F4503DWOW
F4503SN 110-120V AC
F3602 110-120V AC
INSTALLING THE FAN
Tools Required: Phillips screwdriver, Pair of pliers, straight slot screwdriver, adjustable wrench, step ladder, and wire cutters.
INSTALLLING THE MOUNTING BRACKET
The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest o
Follow the instruction below to hang your fan properly:
1. For the concrete ceiling, drill two holes in the ceiling
and secure the mounting bracket to the ceiling with two
Φ8 (distance between the two holes should be
appropriate) expansion screws, flat washers,nuts
provided and tighten with a spanner.
NOTE:Hanger after the installation must be able to withstand the weight of 45kg or more
Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all
Rated power(motor) . Light CCT.
56W
E26 5*40W(MAX) EXCLUDE
56W
E26 5*40W(MAX) EXCLUDE
56W E26 5*40W(MAX) EXCLUDE
56W
E26 5*40W(MAX) EXCLUDE
56W E26 5*40W(MAX) EXCLUDE
41W E26 4*40W(MAX) EXCLUDE
2. For the wood ceiling, Secure the mounting bracket to the
ceiling is capable of carrying a load of at least 45KGS with
two long mounting screws and washers provided. Be sure
at least 30mm of the screw is threaded into the support.
WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
THANK YOU FOR YOUR PURCHASE
instructions before using the product
BEFORE INSTALLATION
Unpack your fan and check the contents.You should have followings:
1. Mounting Bracket
2. Canopy screws
3. Canopy
4. Downrod&hanger ball
5. Bolt
6. Coupling cover
7. Lock pin
bjects or walls. When hanging the Fan REMEMBER to turn off the power.
3. Refer to the Fig. in right for mounting when the ceiling is
angled max. 15 degree angle.
Installation & Operating Instructions for the
Owner's Installation ,Manual
8. Top housing 15. Plastic anchor
9. Blades 16. Balance tapes
10. Fan motor assembly 17. Remote control set
11. Base plate
12. Light kit
13. Wood screws
14. Expansion screws
F4503
.
