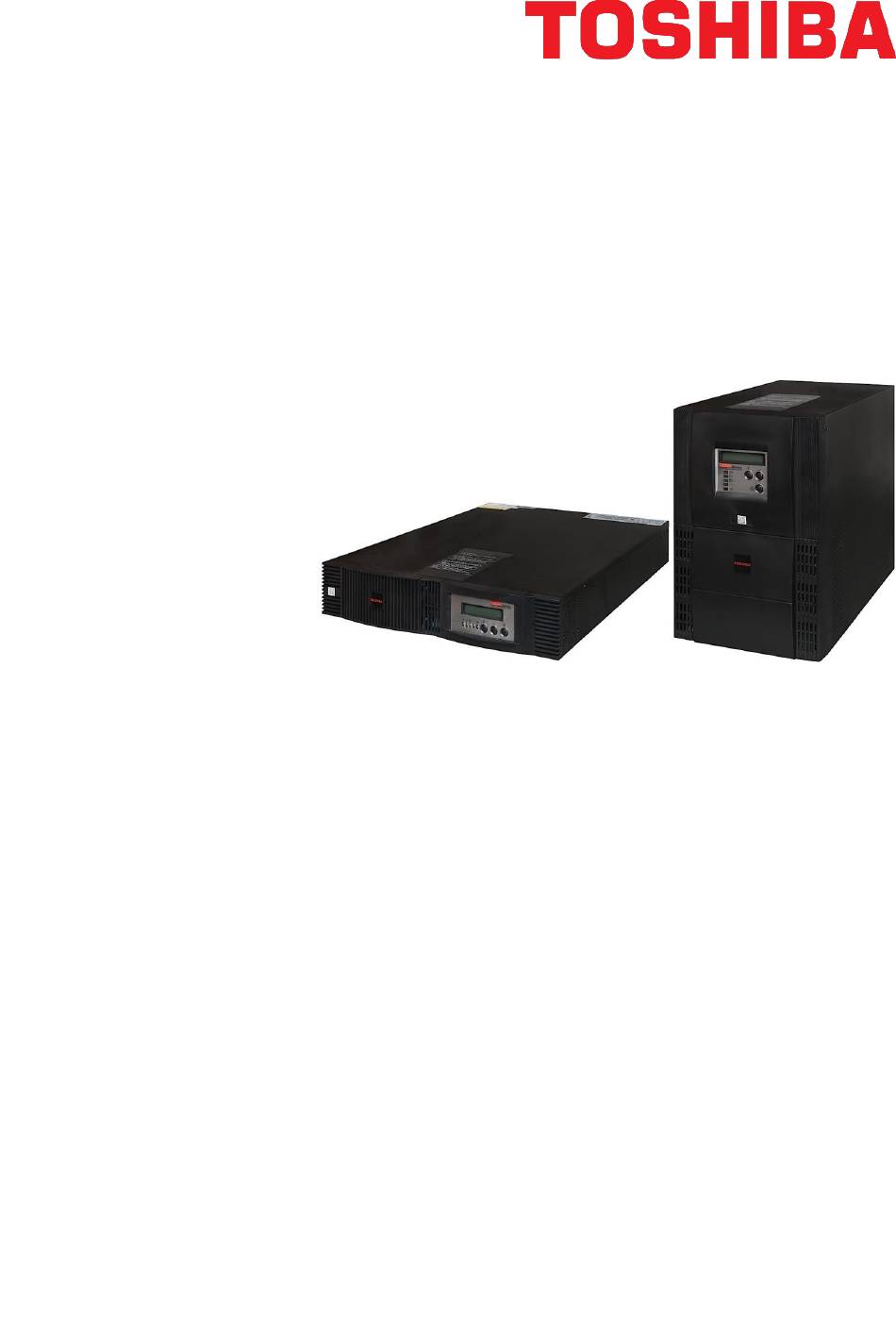

- Page 1 T1000 SERIES UPSMON PRO USER GUIDE 120V 1-3kVA Document: 96449 -001 March 2020...
- Page 2 Using UPSMON-PRO Monitoring Software With this UPS monitoring software, you can: • Get UPS connection from serial port or USB port • Monitor UPS status, battery capacity, output voltage, load level, etc. • Record and review historical UPS events • Record and review UPS information by line chart •...
- Page 3 UPSMON-PRO buttons and indicators • Button : Current Status UPSMON PRO User Guide 96449-001...
- Page 4 Electrical AC Utility Power / Battery Power Power supplied Voltage Output voltage from the UPS outlets Supplied (V) Power ON-Line / Bypass / Normal Condition Remaining Battery The percentage of remaining capacity Capacity Battery Status Normal / Testing / Failed The percentage of the UPS load UPS Load Battery...
- Page 5 Setting up Shutdown Configuration Once the power failure occurs, it helps you to automatically shut down Windows and the UPS: Button: Run Time Shutdown Type 2. 1 Hibernate: power-saving state and puts your open documents and programs on your hard disk 2.
- Page 6 6.1 "Time to Execute Command File (sec)": your command will have this amount of time to run/execute then UPSMON PRO will start OS shutdown "UPS shutdown Delay": this duration is gives time for PC shutdown as shown in the below figure ------------------------------------------------------------------------------------------------------------------- NOTE: The total time span between power failure, PC shutdown, and UPS OFF/Shutdown depends on UPS load and the battery capacity, etc.
- Page 7 Checking Event List Displays all UPS events which have taken place • Button: Historical Event Checking Data Graph 1. Button: Record Viewer 2. Records and actively shows UPS information : I/P Voltage, I/P Frequency, O/P Voltage, and Battery 3. Calendar view for checking Historical Events UPSMON PRO User Guide 96449-001...
- Page 8 Configure E-mail notification feature Supplies an active E-Mail notification 1. Button: Notification 2. Enable this function 3. Enter your SMTP Mail server's information ( ex : SMTP Server, User name, Port, Authentication, Sender's mail, Receiver's mail) 4. With Mail Test button, it can check your mail configuration and connection --------------------------------------------------------------------------------------- NOTE: This feature requires your e-mail account support SMTP Server UPSMON PRO User Guide 96449-001...
- Page 9 --------------------------------------------------------------------------------------- UPS Control Battery Test / Green Mode / Silence / Outlet Control 1. Battery Test : It is important to perform UPS self-tests to assure that the UPS and batteries are working properly to protect your PC and connected peripheral devices •...
- Page 10 Multi Outlets Control 1. Button: Multi - Outlets 2. Turn ON/OFF the outlets power directly 3. Set up the UPS-Outlet shutdown sequence for blackout condition --------------------------------------------------------------------- NOTE: This feature requires the specific UPS to support --------------------------------------------------------------------- Multi OS Connect The UPSMON-PRO can function as both Host or Client 1.
- Page 11 (Client) (Client) (Client) (Client) Host 2. UPSMON-PRO Client • Via Internet / Intranet and UPSMON-PRO Host • All other PCs connect to UPSMON-PRO Host • UPSMON-PRO Clients can do any behavior like Host (Ex : Shutdown Client-PC) • Choose UPSMON-PRO with Host IP address UPSMON PRO User Guide 96449-001...
- Page 12 Status of the UPS: 3. UPSMON-PRO-for-Linux Client • Via the Internet / Intranet and UPSMON-PRO Host • Other PCs connect to UPSMON-PRO Host • Execute the UPSMON-PRO-for-Linux application : ./upsmon • Choose UPSMON-PRO with Host IP address • UPSMON: Start Monitor ==> Connection is successful •...
- Page 13 --------------------------------------------------------------------------------- NOTE: Mutually network connection is necessary for this function --------------------------------------------------------------------------------- UPSMON PRO User Guide 96449-001...
- Page 14 UPS Schedule Allows for automatic UPS OFF / ON / Battery self-test 1. Button: Schedule 2. Recurrence & Occurrences : Once / Daily / Weekly / Monthly 3. Event : UPS shutdown / UPS start / Battery Test 4. If you set up the UPS shutdown, all the other UPSMON PRO-Clients will execute OS shutdown earlier 30 seconds than UPSMON-Host -------------------------------------------------------------------------------- NOTE: The time of UPS shutdown must be earlier than UPS start...
- Page 15 <EX> UPS down time: 2016 / 8 / 30 20:00 ---- UPS start time: 2016 / 8 / 31 06 : 00 1. 2016/8/30 -- 19 : 59 : 30 ==> Pop up 30 seconds count down message 2016/8/30 -- 19 : 59 : 30 ==> All the other UPSMON-PRO Clients start to shutdown OS 2.
- Page 16 UPS Web Portal Remotely monitoring the UPS via browser: 1. Button: Connect Enable Web Server UPSMON Function 3. IP Address: Make sure this Windows has an IP address (ex : 10.192.136.231) Port : 8000 default Default User Name : UPSMON Default Password : UPSMON ------------------------------------------------------------------------------------------ NOTE: This feature requires your Windows have a connectable IP address...
- Page 17 UPSMON PRO User Guide 96449-001...
- Page 18 SOCIAL INFRASTRUCTURE SYSTEMS GROUP POWER ELECTRONICS DIVISION 13131 West Little York Rd., Houston, TX 77041 Tel: 855-803-7087 Fax 713-896-5212 US 800/231-1412 Canada 800/872-2192 Mexico 01/800/527-1204 www.toshibaups.com Printed in the USA UPSMON PRO User Guide 96449-001...
