Toshiba 1600 Series Product Specifications

Uninterruptible power systems, 3.6kva 240v in - 240v out tower maintenance bypass solution
Hide thumbs

Advertisement

Quick Links

Product Specifications
INPUT
Voltage
Voltage Range
Frequency
Synchronization window
Power Factor
THD Current
Topology
OUTPUT
Voltage
Capacity (VA)
Capacity (W)
Voltage Regulation
Voltage Distortion
Step Load
Rated Current
Max Peak Current
Toshiba International Corporation
Uninterruptible Power Systems

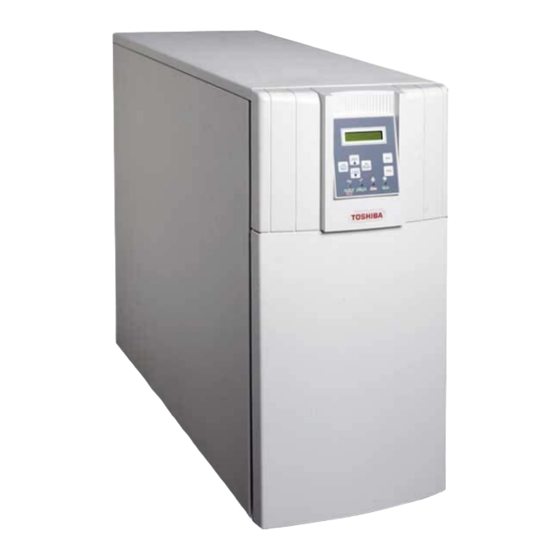

1600EP Series 3.6kVA 240V In - 240V Out Tower Maintenance Bypass Solution
Toshiba's 1600EP Series is an on-line Uninterruptible Power Supply (UPS) systems
provide continuous computer-grade ac power in a compact, high performance, and energy
efficient unit. The UPS unit assures safe and reliable operation of critical office equipment.
This can range from word processors and personal computers to mini-computers and local
area networks. All units feature an audible alarm, which sounds if the battery voltage drops
below standard during use. This is an additional aid to help in retaining the valuable office
data banks. All units allow for computer interfacing.
This model is a Maintenance Bypass solution. Maintenance Bypass solution is a two
breaker maintenance bypass panel. This is a 240V input and 240-output solution.
True On-Line, Double Conversion, Input PF Correction
Less than 6% THD at Full Non-Linear Load. Less than 3% THD at full Linear Load.
± 8 % max from 100% to 0 % or from 0% to 100 % linear load
UE3G2L036C61TMB
240Vac
168V~264V (+10% to -30%)
50/60 Hz Auto Sensing
± 3Hz
Greater than 0.95
Less than 5% at Full Load
240Vac
3600
3100
± 3%
15A
45A
