Models VHC 30, VHC 36, VHC 48, VHC 60 (ducted configuration)
1
2
3
O.A.
4
C.A.
5
C.E. / E.A.
6
2
S.A.
R.A.
1. DX cooling coil.
1.
2. Drain pan.
3. Outdoor air damper.
4. Mixed air damper actuator.
5. Dual condenser exhaust / powered exhaust
fans.
6. Condenser coil.
7. Supply air fan(s).
8. Hot Water Coil. Optional electric or steam
coil available.
9. Electrical box / controls enclosure.
NOTE: The component arrangement shown above may vary slightly from that in the unit ventilator supplied.

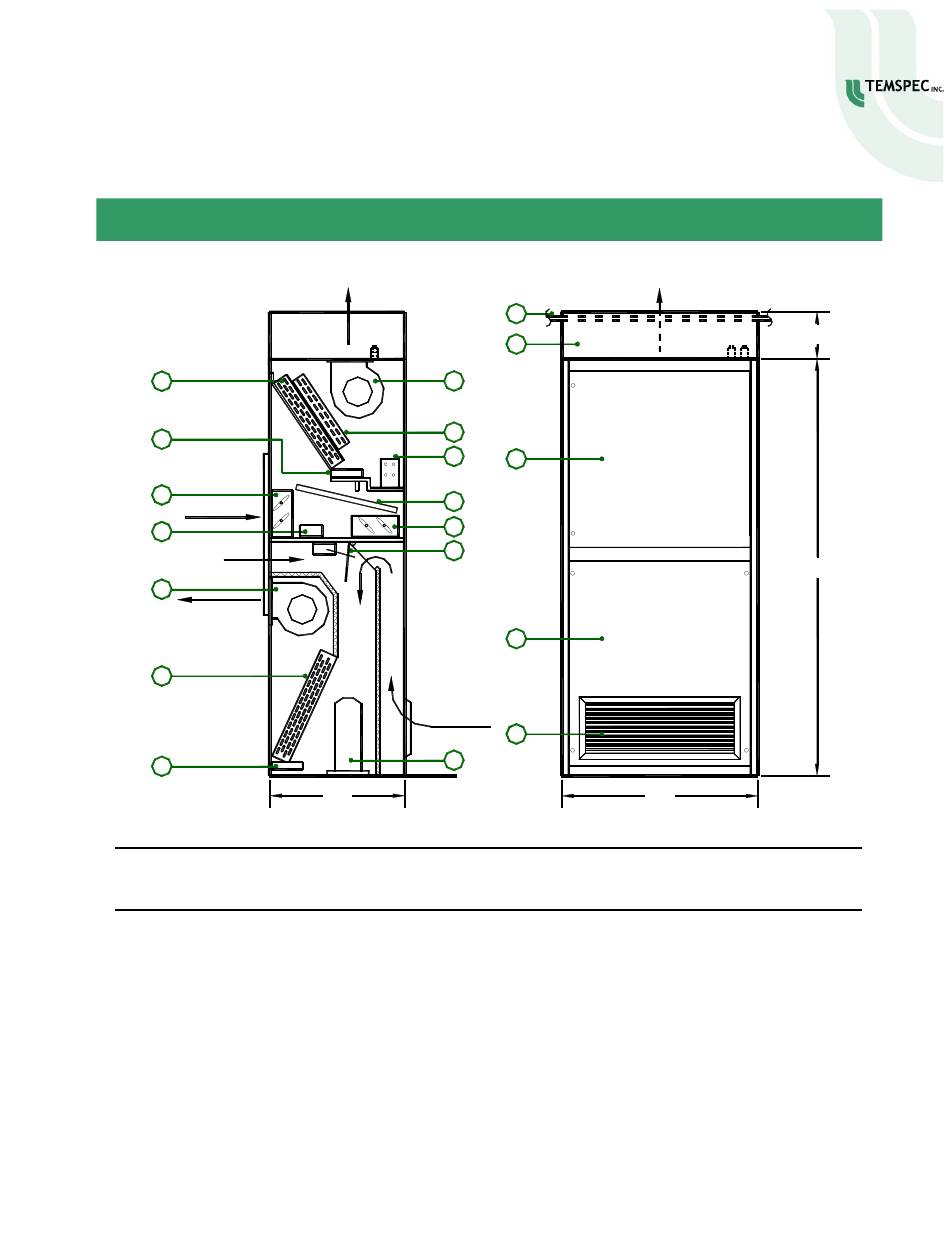

TYPICAL LAYOUT
S.A.
7
8
9
10
11
12
E.A.
R.A. / E.A.
13
30"
SIDE SECTION
Supply Air
O.A.
Return Air C.A.
S.A.
14
15
16
17
18
44"
FRONT ELEVATION
Outdoor Air C.E.
Condenser Air E.A.
10. Filters.
11. Return air damper.
12. Modulating powered exhaust damper
and actuator module (optional).
13. Compressor.
14. Ceiling tile.
15. Top extension / duct shroud to suit
ceiling height (optional).
16. Filter/coil hinged access panel.
17. Removable access panel.
18. Heavy duty return air grille.
-5-
H
93"
Condenser Exhaust Air
Room Exhaust Air
