Models VLC 24, VLC 30, VLC36
E.A.
E.A.
1
2
3
4
O.A.
5
C.A.
C.E.
SIDE SECTION
S.A.
R.A.
1. Barometric relief damper assembly (optional).
2. Hot water coil. Optional electric or steam
coil available.
3. Dual supply air fans.
4. Outdoor air damper.
5. Condenser coil.
6. DX cooling coil.
7. Drain pan.
8. Electrical box / controls enclosure.
9. Mixed air damper actuator.
10. Filter.
NOTE: The component arrangement shown above may vary slightly from that in the unit ventilator supplied.

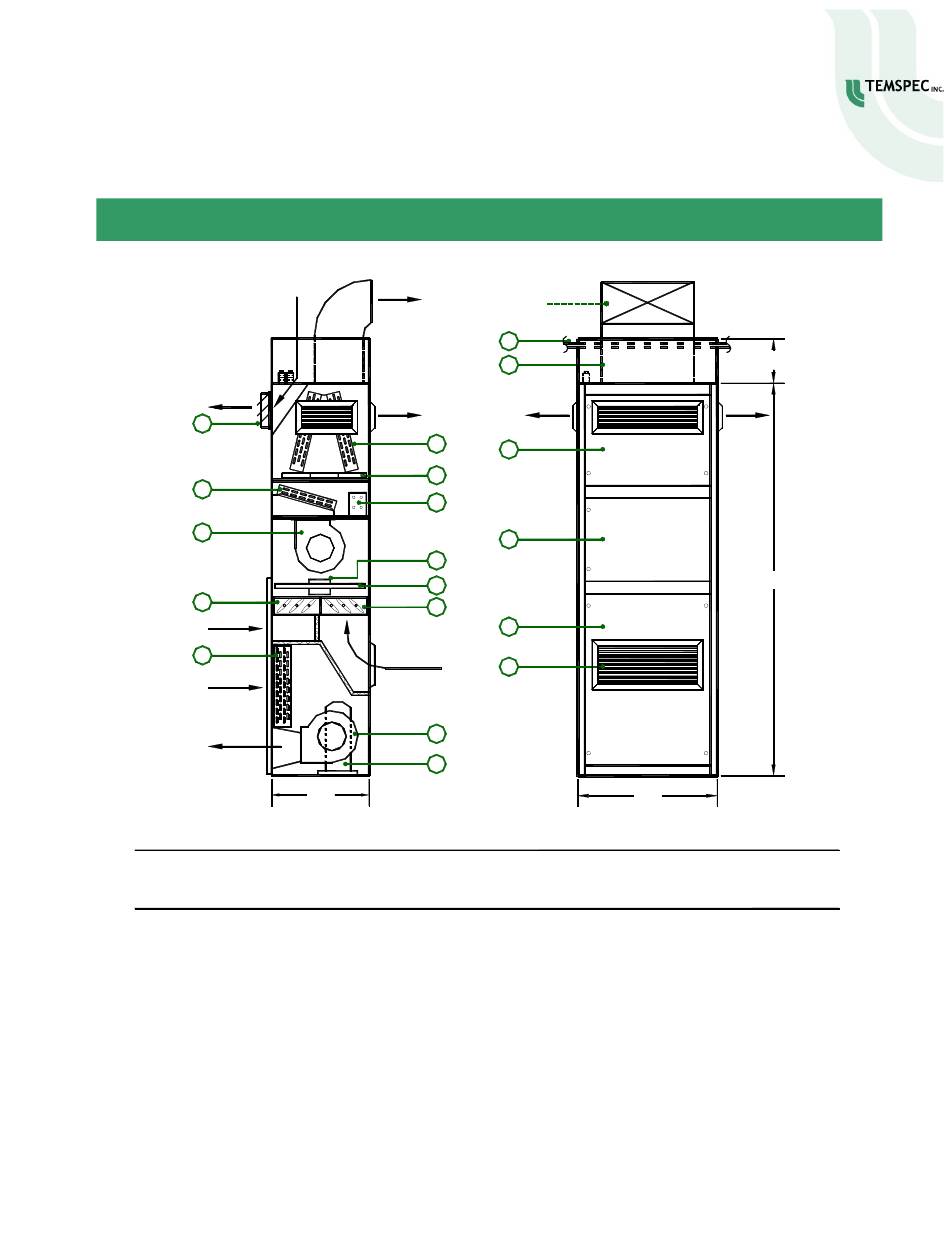

TYPICAL LAYOUT
S.A.
S.A.
6
7
8
9
10
11
R.A.
12
13
23"
Supply Air
O.A.
Return Air C.A.
Duct By
Others
14
15
S.A.
16
17
18
19
33"
FRONT ELEVATION
Outdoor Air C.E.
Condenser Air E.A.
11. Return air damper.
12. Single condenser fan.
13. Compressor.
14. Ceiling tile.
15. Top extension /duct shroud to suit
ceiling height (optional).
16. Coil access panel (removable) with optional
double deflection discharge grille.
17. Filter access panel, hinged.
18. Removable access panel.
19. Heavy duty return air grille.
-2-
H
S.A.
93"
Condenser Exhaust Air
Room Exhaust Air
