6720 Columbus Road
Mississauga, Ontario
Canada, L5T 2G1
Tel: (905) 670 3595
Fax: (905) 670 3592
www.temspec.com

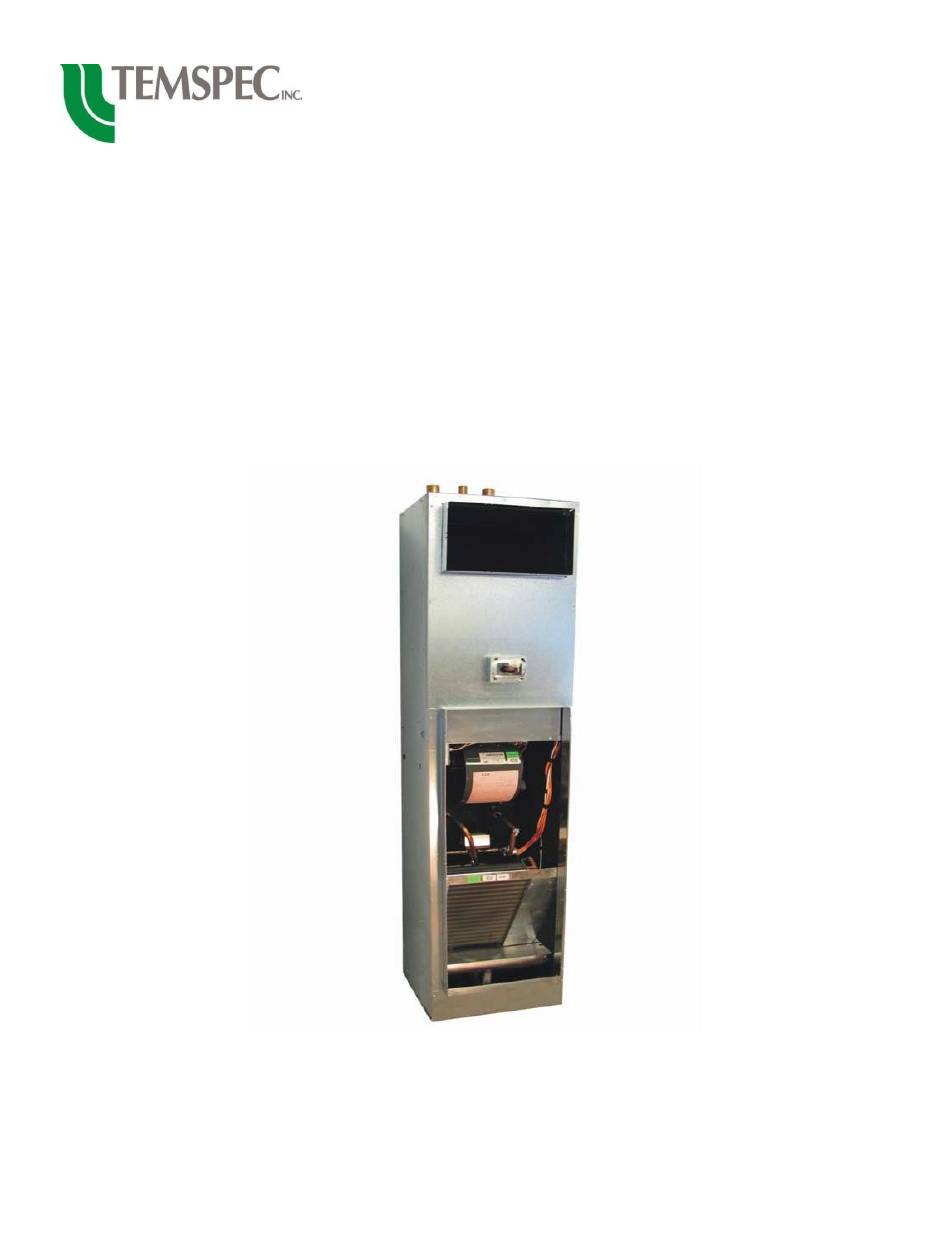

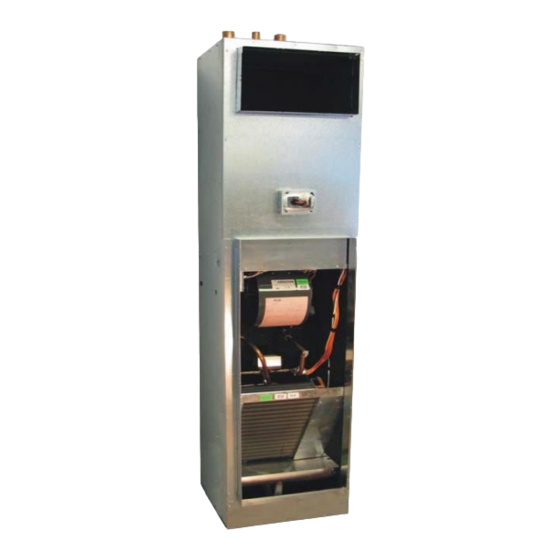

Vertical Stack Fan Coil Units
Models: TVA, TVE, TVS
Installation, OPERATION AND
MAINTENANCE MANUAL
141111
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Temspec TVA
Summary of Contents for Temspec TVA
- Page 1 6720 Columbus Road Mississauga, Ontario Canada, L5T 2G1 Tel: (905) 670 3595 Fax: (905) 670 3592 www.temspec.com Vertical Stack Fan Coil Units Models: TVA, TVE, TVS INSTALLATION, OPERATION AND MAINTENANCE MANUAL 141111...
- Page 2 Make allowance for the 1” flange around the grille. Call Temspec at the time of submittal review if side supply air openings need to be lowered or rotated to a vertical position to avoid interference with walls or doors.
- Page 3 Mechanical fittings can loosen during transportation and handling. If contractor /installer deem it necessary to tighten mechanical fittings Temspec does not assume any responsibility for this procedure. It is stressed that the component manufacturer's recommended procedures be strictly followed.
- Page 4 Temspec does not advise on the location or method of anchoring as this is the responsibility of the engineering company retained to design the riser system.
-
Page 5: Electrical Connection
Temspec does not recommend the use of a fan coil unit during construction/drywall installation as a space heater or air conditioner. Motor exposure to drywall dust can reduce motor life and leads to premature failure Ducted Units Remove the supply air opening knock-out in the top panel of the fan coil. - Page 6 MODELS: TVA, TVE & TVS IOM Manual the remote disconnect device prior to removing the fan/motor shield. Do not use the motor speed switch as a disconnect method. All wiring must enter the unit through designated openings and not through the riser stub out openings.
-
Page 7: Maintenance Instructions
MODELS: TVA, TVE & TVS IOM Manual MAINTENANCE INSTRUCTIONS Safety Always isolate the unit electrically before removing the front access panel. Do this by opening the circuit breaker (or other switching device) in the distribution panel in the suite. Do not use the fan switch as the means of isolation.
