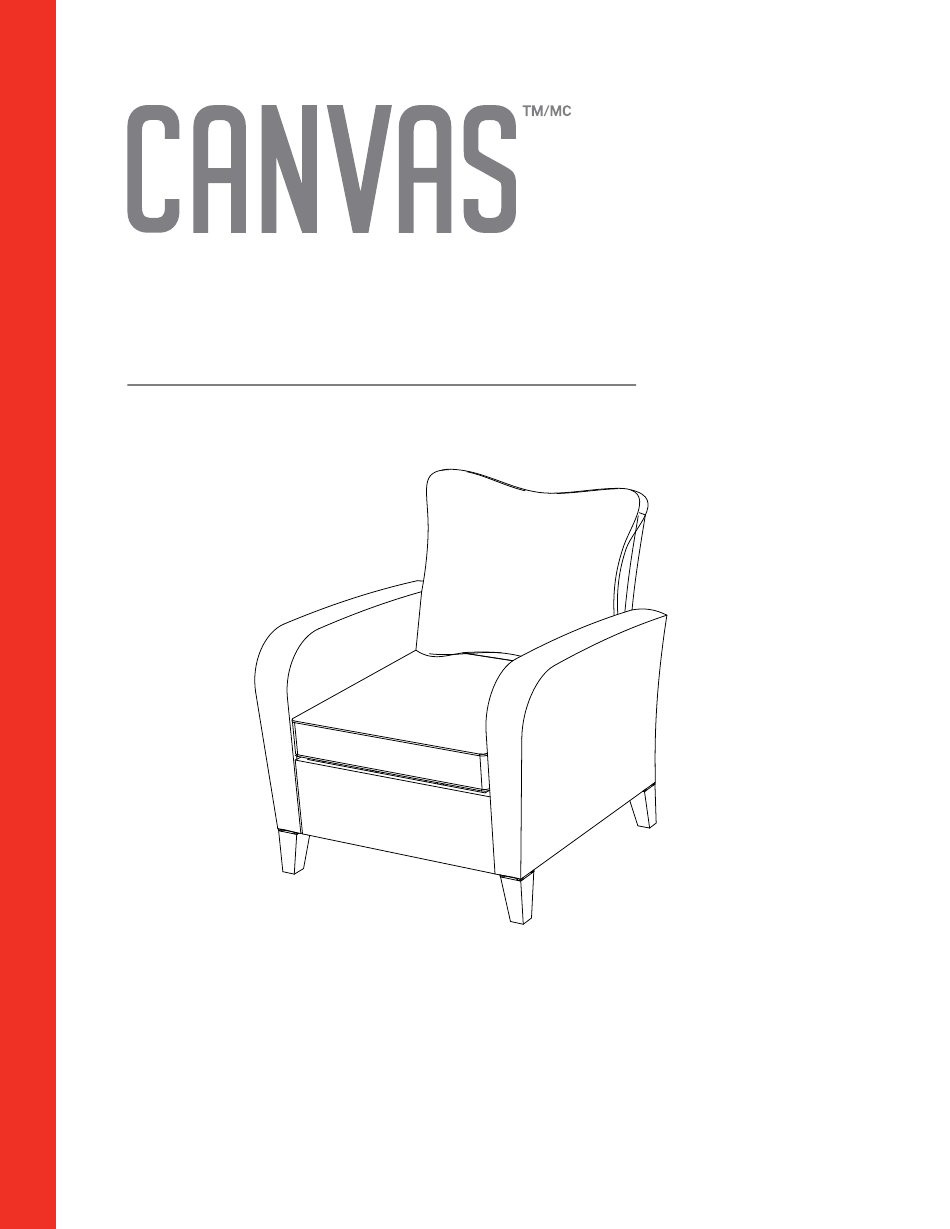

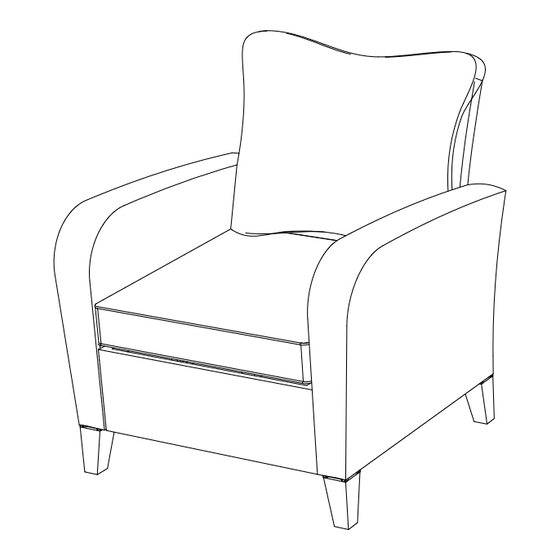

BRETON ARM CHAIR
PRODUCT NO. 088-2184-2
ASSEMBLY INSTRUCTIONS
Toll free: 1-888-670-6684
IMPORTANT: Please read and understand this manual before any assembly.
Before beginning assembly of product, make sure all parts are present. Compare
parts with packaging contents list. If any part is missing, or if you have any questions,
contact the customer service department at 1-888-670-6684.
Advertisement
Related Manuals for Canvas BRETON ARM CHAIR 088-2184-2
Summary of Contents for Canvas BRETON ARM CHAIR 088-2184-2
- Page 1 BRETON ARM CHAIR PRODUCT NO. 088-2184-2 ASSEMBLY INSTRUCTIONS Toll free: 1-888-670-6684 IMPORTANT: Please read and understand this manual before any assembly. Before beginning assembly of product, make sure all parts are present. Compare parts with packaging contents list. If any part is missing, or if you have any questions, contact the customer service department at 1-888-670-6684.
- Page 2 Made in China IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
- Page 3 Important Safety Instructions Parts List Assembly Cleaning and Maintenance Technical Data Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the armchair. Caution! Always keep children under close supervision while they are using or around this product.
- Page 4 PRODUCT NO. 088-2184-2 Right arm - 1 Screw with washer M6X35 - 8 Left arm - 1 Screw with washer M6X30 - 2 Seat panel - 1 Nut with washer - 4 Back panel - 1 Hex key - 1 Wrench - 1 Seat cushion - 1 Back cushion - 1...
- Page 5 CAUTION! • The maximum weight capaicty of the armchair is 225 lb (102 kg). Do not stand on the product. • Keep children away during assembly. This product contains small parts which can be swallowed by children. • Keep fingers away from the places where they can be pinched or trapped. •...
- Page 6 PRODUCT NO. 088-2184-2 Note: Do not tighten screws all the way until you have assembled the armchair. Once assembly is complete, tighten each screw. Step 1 Requires part 3, 4, B, D Attach the seat panel to the back panel using the screws with washers, aligning the holes.
- Page 7 Step 3 Requires parts 2, 3, 4, A, D Connect the left arm to the back panel using the screws with washers; and then use the screws with washers to connect the seat panel 3, aligning the holes. When assembled, tighten the screws with the hex key D. Step 4 Requires parts 1, 2, 7, C, E...
- Page 8 PRODUCT NO. 046-3456-8 | MODEL NO. 088-163 PRODUCT NO. 088-2184-2 CAUTION! • Check all screws and nuts periodically for tightness, tightening them again as required. • Clean the product with a slightly damp cloth and a little detergent. Let it dry thoroughly. •...
- Page 9 This CANVAS product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace a defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
