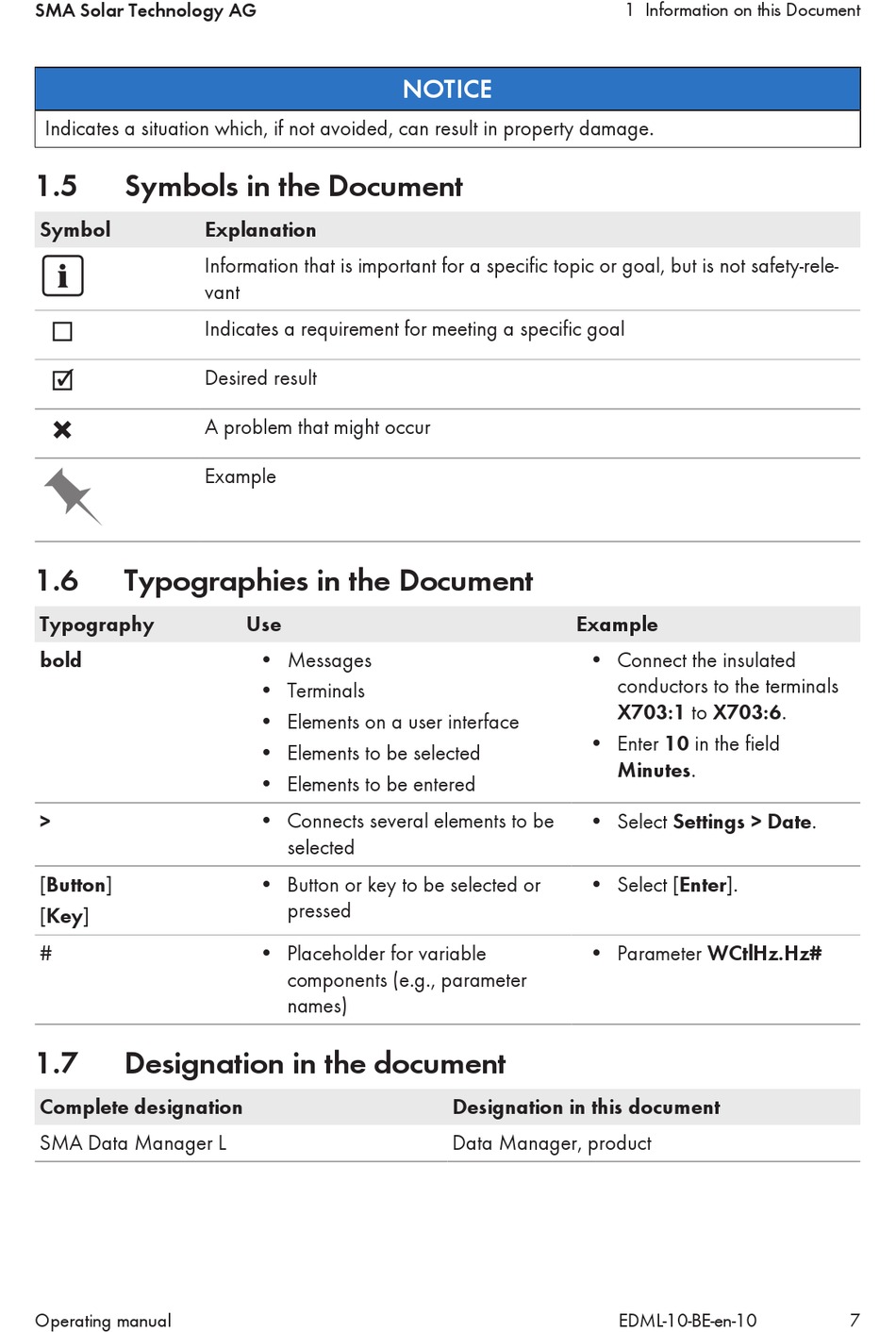

Symbols In The Document; Typographies In The Document; Designation In The Document - SMA DATA MANAGER L Operating Manual

SMA Solar Technology AG
Indicates a situation which, if not avoided, can result in property damage.
1.5

Symbols in the Document

Symbol
☐
☑
✖
1.6

Typographies in the Document

Typography
bold
>
[Button]
[Key]
#
1.7

Designation in the document

Complete designation
SMA Data Manager L
Operating manual
Explanation
Information that is important for a specific topic or goal, but is not safety-rele-
vant
Indicates a requirement for meeting a specific goal
Desired result
A problem that might occur
Example
Use
• Messages
• Terminals
• Elements on a user interface
• Elements to be selected
• Elements to be entered
• Connects several elements to be
selected
• Button or key to be selected or
pressed
• Placeholder for variable
components (e.g., parameter
names)
NOTICE
Designation in this document
Data Manager, product
1 Information on this Document
Example
• Connect the insulated
conductors to the terminals
X703:1 to X703:6.
• Enter 10 in the field
Minutes.
• Select Settings > Date.
• Select [Enter].
• Parameter WCtlHz.Hz#
EDML-10-BE-en-10 7
