SMA DATA MANAGER L Operating Manual
Hide thumbs
Also See for DATA MANAGER L:
- Operating manual (64 pages) ,
- Technical information (22 pages)
Related Manuals for SMA DATA MANAGER L
Summary of Contents for SMA DATA MANAGER L

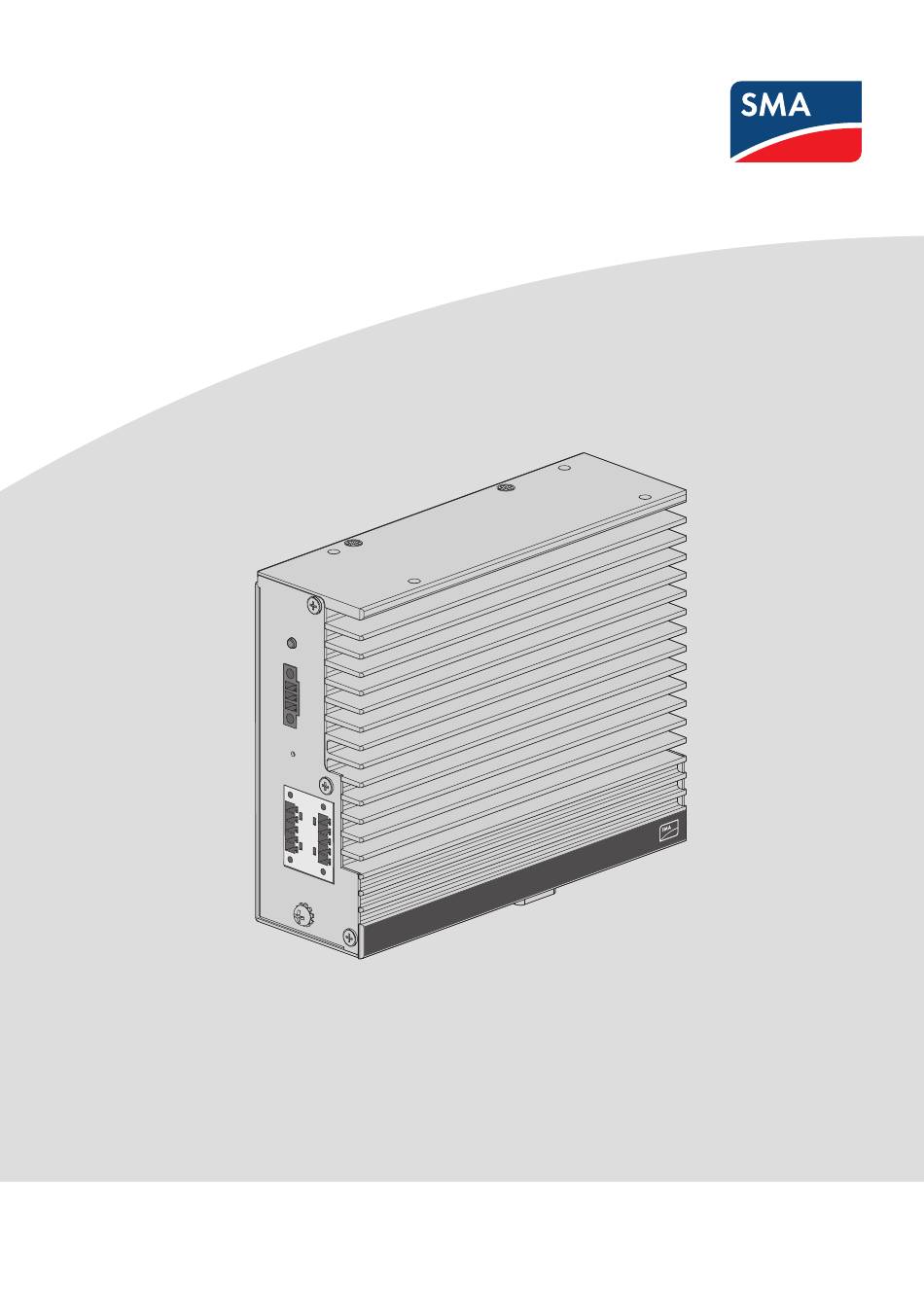

- Page 1 Operating manual SMA DATA MANAGER L A G E M A N D A T A ENGLISH EDML-10-BE-en-10 | Version 1.0...
- Page 2 SMA Solar Technology AG Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..........Information on this Document ............Validity ........................Target Group......................Content and Structure of this Document ..............Levels of Warning Messages ..................Symbols in the Document .................. - Page 4 Deleting the Admin Account..................43 Firmware Update ..............45 Firmware Update ................45 Updating the Product Firmware ................45 Updating the Firmware of Connected SMA Products ..........46 10 Troubleshooting................ 47 Troubleshooting ................47 11 Decommissioning the Product ..........49 Decommissioning the Product ............
- Page 5 SMA Solar Technology AG Table of Contents 13 Accessories ................53 Accessories..................53 14 Contact ..................54 Contact..................... 54 15 EU Declaration of Conformity ..........57 EU Declaration of Conformity............57 16 Compliance Information ............58 Compliance Information ..............58...
-
Page 6: Information On This Document
You will find the latest version of this document and further information on the product in PDF format and as eManual at www.SMA-Solar.com. You can also call up the eManual via the user interface of the product. Illustrations in this document are reduced to the essential information and may deviate from the real product. -
Page 7: Symbols In The Document
• Button or key to be selected or • Select [Enter]. pressed [Key] • Placeholder for variable • Parameter WCtlHz.Hz# components (e.g., parameter names) Designation in the document Complete designation Designation in this document SMA Data Manager L Data Manager, product Operating manual EDML-10-BE-en-10... -
Page 8: Additional Information
"PUBLIC CYBER SECURITY - Guidelines for a Secure PV System Technical information Communication" "SMA SPEEDWIRE FIELDBUS" Technical information "SMA GRID GUARD 10.0 - Grid management services through Technical Information SMA Inverter" Answers to frequently asked questions FAQ on product page User information on the operation and features of the product... -
Page 9: Safety
Any other application may cause personal injury or property damage. Alterations to the SMA products, e.g., changes or modifications, are only permitted with the express written permission of SMA Solar Technology AG. Unauthorized alterations will void guarantee and warranty claims and in most cases terminate the operating license. - Page 10 2 Safety SMA Solar Technology AG DANGER Danger to life due to electric shock from touching an ungrounded product in the event of an error A product that is not grounded may be energized in the event of an error. Touching an ungrounded product results in death or serious injury due to electric shock in the event of an error.
- Page 11 Manipulation of PV system data in Ethernet networks You can connect the supported SMA products to the Internet. When connected to the Internet, there is a risk that unauthorized users can access and manipulate the data of your PV system.
-
Page 12: Supported Products
• Sunny Portal powered by ennexOS • 1 SMA Inverter Manager with 1 Sunny Tripower Storage 60 • 1 SMA Inverter Manager with up to 42 Sunny Tripower 60 / Sunny Highpower Peak1 • SMA Hybrid Controller Supported Products from Other Manufacturers Energy meters: •... - Page 13 SMA Solar Technology AG 2 Safety Sensors (only in conjunction with external I/O systems): • Irradiation sensors that can output a current signal in the range from 4 mA to 20 mA • Anemometers that can output a current signal in the range from 4 mA to 20 mA •...
-
Page 14: Scope Of Delivery
Figure 1: Components included in the scope of delivery Position Quantity Designation SMA Data Manager L Mounting plate for mounting on the DIN rail (TH 35-7.5) DIN rail mounting bracket for mounting on the DIN rail (TH 35-7.5) Wall mounting brackets for mounting on a wall... -
Page 15: Product Overview
SMA Solar Technology AG 4 Product Overview Product Overview Product Description P o w e r In p u t R e s e Figure 2: Design of the product Position Designation Operation button Starts the product Terminal for the voltage supply... -
Page 16: Symbols On The Product
4 Product Overview SMA Solar Technology AG Position Designation Labels with internet address, registration ID (RID), identification key (PIC), de- vice key and MAC addresses of the Ethernet interfaces Type label The type label clearly identifies the product. The type label must remain per- manently attached to the product. -
Page 17: Led Signals
SMA Solar Technology AG 4 Product Overview Symbol Explanation Grounding conductor This symbol indicates the position for connecting a grounding conductor. Ground This symbol indicates the position for the connection to ground. WEEE designation Do not dispose of the product together with the household waste but in accor- dance with the disposal regulations for electronic waste applicable at the in- stallation site. -
Page 18: Sunny Portal
The colors of the network port LEDs and what each color indicates are not standardized The colors used by SMA Solar Technology AG for the Link LED and the Activity LED and what each color indicates may be different to those used in third-party products. - Page 19 The product is equipped with a Modbus interface. The Modbus interface is deactivated by default and must be configured as needed. The Modbus interface of the supported SMA products is designed for industrial use – via SCADA systems, for example – and has the following tasks: •...
- Page 20 The PV energy is therefore consumed exclusively at the place where it is generated. This product enables the limitation of the active power feed-in of the connected SMA inverters and inverters of other manufacturers, provided these are connected via SunSpec Modbus and support this function, to 0% with active closed-loop control of specifications at the grid-connection point.
-
Page 21: Mounting
SMA Solar Technology AG 5 Mounting Mounting Requirements for Mounting Requirements for the Mounting Location: WARNING Danger to life due to fire or explosion Despite careful construction, electrical devices can cause fires. This can result in death or serious injury. - Page 22 5 Mounting SMA Solar Technology AG Dimensions for mounting: 150 (5.91) 10.2 (0.4) 178 (7.01) Figure 3: Dimensions for wall mounting (Dimensions in mm (in)) Recommended clearances: If you maintain the recommended clearances, adequate heat dissipation will be ensured. Thus, you will prevent power reduction due to excessive temperature.
-
Page 23: Mounting The Product On The Din Rail
SMA Solar Technology AG 5 Mounting (2.8) (2.8) Figure 4: Recommended clearances (dimensions in mm (in)) Mounting the Product on the DIN Rail There are two options for mounting the product on the DIN rail: • Mounting the product with the back to the DIN rail •... - Page 24 5 Mounting SMA Solar Technology AG 2. Attach the DIN rail bracket to the mounting plate using six of the supplied screws. 3. Position the product onto the DIN rail from above and press on the bottom. ☑ The product snaps audibly into place.
-
Page 25: Mounting The Product On The Wall
SMA Solar Technology AG 5 Mounting 2. Position the product onto the DIN rail from above and press on the bottom. ☑ The product snaps audibly into place. 3. Ensure that the product is securely in place. Mounting the Product on the Wall Additionally required mounting material (not included in the scope of delivery): ☐... - Page 26 5 Mounting SMA Solar Technology AG 5. Insert the supplied screws through the holes and tighten. Use the washers if necessary. 6. Ensure that the product is securely in place. EDML-10-BE-en-10 Operating manual...
-
Page 27: Connection
SMA Solar Technology AG 6 Connection Connection Overview of the Connection Area U S B 2 P 2 R L A N S -2 3 U S B 3 2 / 4 2 P o w e r In U S B 2... -
Page 28: Connecting Signal Source To Digital Input
6 Connection SMA Solar Technology AG 2. Strip off 6 mm (0.24 in) of the conductor insulation from each of the required connection cable conductors. 3. Trim unneeded insulated conductors of the connection cable flush with the cable sheath. 4. Push one bootlace ferrule onto each stripped insulated conductor up to the stop, if necessary. -
Page 29: Connecting The Network
Reserved for future applications Reserved for future applications Reserved for future applications Reserved for future applications Ground * For information on SMA products with fast stop function see manual of the SMA products. Circuitry overview: POWER SUPPLY UNIT BUFFERMODULE EDML-10... - Page 30 ☐ UV-resistant for outdoor use. Connection to a DHCP network SMA Solar Technology AG recommends using the network port LAN1 for the network communication with external nodes (e.g. SCADA system, Sunny Portal). Network port LAN1 is preconfigured with a DHCP function.
-
Page 31: Connecting The Voltage Supply
6 Connection Connection to a static network SMA Solar Technology AG recommends using the network port LAN2 for the system communication with all nodes within a system (e.g. inverter, energy meter). Network port LAN2 is preconfigured with the static IP address 172.16.0.141. - Page 32 6 Connection SMA Solar Technology AG Requirements for the power supply unit: • Short-circuit current: < 8 A • Nominal output power: 5 W • DC output voltage: 9 V to 36 V • Compliance with the requirements on current sources with limited power in accordance with...
- Page 33 SMA Solar Technology AG 6 Connection WARNING Danger to life due to electric shock Lethal voltages are present at the connection point of the utility grid. This can result in death or serious injury. • Disconnect the connection point from voltage sources and ensure that the connection point is voltage-free.
-
Page 34: Commissioning
Web browser signals a security vulnerability After the IP address has been entered, a message might appear indicating that the connection to the user interface of the product is not secure. SMA Solar Technology AG guarantees the security of the user interface. -
Page 35: Commissioning The Product
Web browser signals a security vulnerability After the IP address has been entered, a message might appear indicating that the connection to the user interface of the product is not secure. SMA Solar Technology AG guarantees the security of the user interface. -
Page 36: Registering In Sunny Portal
7 Commissioning SMA Solar Technology AG Configuring the network settings • To configure the network settings, select Change the network configuration. Observe that the automatic network configuration is set by default via DHCP server and recommended by SMA Solar Technology AG. - Page 37 SMA Solar Technology AG 7 Commissioning 4. Select [Register]. ☑ After a few minutes you will receive an e-mail containing a link and your access data to Sunny Portal. 5. If you have not received an e-mail from Sunny Portal, check whether the e-mail has been redirected to a folder for junk mail or whether an incorrect e-mail address has been entered.
-
Page 38: Operation
8 Operation SMA Solar Technology AG Operation Design of the User Interface Figure 9: Design of the user interface (example) The user interface of the product and the user interface of Sunny Portal are uniform. The product is configured and commissioned on site via the user interface of the product. -
Page 39: Configuring Limitation Of Active Power Feed-In
In the event of a communication failure between the product and the inverter, the inverter is reduced to an output power of 0% during fallback). For more information see the inverter manual at www.SMA-Solar.com. Operating manual EDML-10-BE-en-10... -
Page 40: Configuring Reactive Power As A Function Of Grid Voltage
8 Operation SMA Solar Technology AG Requirements: ☐ The configuration for the active power limitation must be agreed upon with the responsible grid operator. ☐ There must be an appropriate energy meter installed at the grid-connection point within the system. -
Page 41: Configuring Modbus Devices
SMA Solar Technology AG 8 Operation Requirements: ☐ There must be an appropriate energy meter installed at the grid-connection point within the system. Procedure: 1. Log into the user interface of the Data Manager. 2. Select the menu item Grid management service in the menu Configuration. -
Page 42: Configuring A System With Several Data Managers
8 Operation SMA Solar Technology AG Registering a New Modbus Device and Assigning a Modbus Profile Requirement: ☐ The Modbus devices must be in operation and connected to the Data Manager. Procedure: 1. Log into the user interface of the Data Manager. -
Page 43: Resetting The Product
SMA Solar Technology AG 8 Operation Superordinate master Select the option Superordinate master in the installation assistant if you use the Data Manager as a superordinate device without other subordinate Data Managers for open-loop or closed-loop control of your system. With this option, the superordinate Data Manager forwards the open-loop or closed-loop control commands to the subordinate Data Manager via Modbus. - Page 44 8 Operation SMA Solar Technology AG 3. Enter the device key from the label on the product or from the supplied label. 4. Select [Delete]. ☑ The Data Manager is performing a restart. Then a new admin account can be created.
-
Page 45: Firmware Update
SMA Solar Technology AG 9 Firmware Update Firmware Update Updating the Product Firmware There are two ways to update the product firmware: • Enabling Automatic Firmware Update (recommended) • Updating the Firmware at the product via USB Flash Drive Enabling Automatic Firmware Update (recommended) •... -
Page 46: Updating The Firmware Of Connected Sma Products
☐ USB flash drive at least in the version 2.0 ☐ The Data Manager must be in operation. ☐ The Data Manager must be connected to the connected SMA products via the local network. ☐ The connected SMA products must be in operation. -
Page 47: Troubleshooting
• Ensure that no more than permissible devices are in the system. The network configuration of the local network is incorrect. • Ensure that the network configuration is correct. SMA Solar Technology AG recommends automatic network configuration. The Data Manager user in- The firmware has been updated to a newer version. - Page 48 • The firmware version must be later than the firmware version date via USB flash drive. installed on the SMA product. Ensure that you have downloaded the correct firmware version for your SMA product and update the firmware again.
-
Page 49: Decommissioning The Product
SMA Solar Technology AG 11 Decommissioning the Product 11 Decommissioning the Product WARNING Danger to life due to electric shock Lethal voltages are present at the connection point of the utility grid. This can result in death or serious injury. - Page 50 11 Decommissioning the Product SMA Solar Technology AG • If mounted to a wall, unscrew the screws from the wall mounting bracket and remove the product. 5. If the product is to be disposed of, dispose of the product in accordance with the locally applicable disposal regulations for electronic waste.
-
Page 51: Technical Data
SMA Solar Technology AG 12 Technical Data 12 Technical Data Communication SMA devices Max. 200 devices • incl. I/O systems and power analyzers Max. 10 devices, Ethernet, Modbus TCP Connections Voltage supply 3-pole terminal Network (LAN) 2 x 10/100/1000 Mbps (RJ45) - Page 52 12 Technical Data SMA Solar Technology AG Equipment Intel® Atom™ processor (Quad Core, 1.91 GHz) Data storage Solid State Disk (SSD), 128 GB Warranty 2 years Certificates and approvals www.SMA-Solar.com EDML-10-BE-en-10 Operating manual...
-
Page 53: Accessories
GmbH & Co. KG (8DI, 8DO, 4AI, 4AO, 4RTD) * Not permitted in all countries (e.g., Japan). For information on whether an accessory is permitted in your country, visit the website of your country's SMA subsidiary company at www.SMA-Solar.com or contact your distributor. Operating manual... -
Page 54: Contact
14 Contact SMA Solar Technology AG 14 Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Device type • Serial number •... - Page 55 Toll free for Australia: 1800 SMA AUS SMA Online Service Center: (1800 762 287) www.SMA-Service.com International: +61 2 9491 4200 United Arab SMA Middle East LLC India SMA Solar India Pvt. Ltd. Emirates Abu Dhabi Mumbai +971 2234 6177 +91 22 61713888 SMA Online Service Center: www.SMA-Service.com ไทย Service Partner for String inverter: 대한민국...
- Page 56 14 Contact SMA Solar Technology AG United States SMA Solar Technology Toll free for USA and US Territories America LLC +1 877-MY-SMATech (+1 877-697-6283) Rocklin, CA International: +1 916 625-0870 Canada SMA Solar Technology Toll free for Canada / Sans frais pour le Canada : Canada Inc.
-
Page 57: Eu Declaration Of Conformity
(L 174/88, June 8, 2011) and 2015/863/EU (L 137/10, March 31, 2015) (RoHS) SMA Solar Technology AG confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above- mentioned directives. The entire EU Declaration of Conformity can be found at www.SMA- Solar.com. -
Page 58: Compliance Information
Changes or modifications made to this equipment not expressly approved by SMA Solar Technology AG may void the FCC authorization to operate this equipment. - Page 60 www.SMA-Solar.com...
