AquaLabo STAC2 Start Manual

Hide thumbs Also See for STAC2:

Table of Contents

Download this manual

Installation of the 4 wall fixings

On the box, screw the 4 wall fixings with 4 screws provided.

Wired link between computer and STAC V2

It is recommended to turn off the computer Wifi.

◼

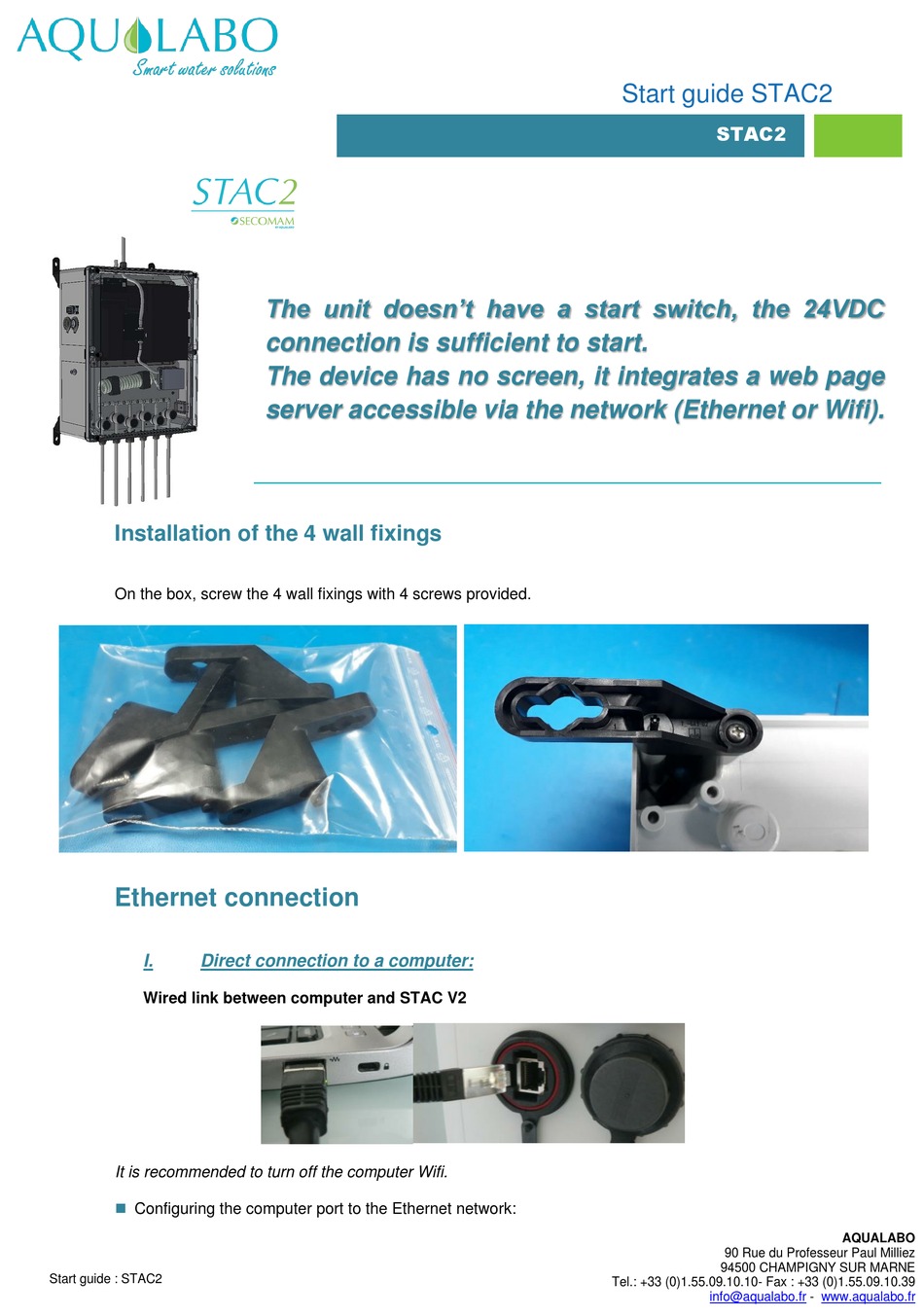

Start guide : STAC2

The unit doesn't have a start switch, the 24VDC

connection is sufficient to start.

The device has no screen, it integrates a web page

server accessible via the network (Ethernet or Wifi).

Start guide STAC2

STAC2

90 Rue du Professeur Paul Milliez

94500 CHAMPIGNY SUR MARNE

Tel.: +33 (0)1.55.09.10.10- Fax : +33 (0)1.55.09.10.39

info@aqualabo.fr

AQUALABO

www.aqualabo.fr

Table of Contents

Do you have a question about the STAC2 and is the answer not in the manual?

Page 1 It is recommended to turn off the computer Wifi. ◼ Configuring the computer port to the Ethernet network: AQUALABO 90 Rue du Professeur Paul Milliez 94500 CHAMPIGNY SUR MARNE Start guide : STAC2 Tel.: +33 (0)1.55.09.10.10- Fax : +33 (0)1.55.09.10.39 info@aqualabo.fr www.aqualabo.fr...
Page 2 - Open the V4 internet protocol in the local network connection properties (double click on the line). Path : Control Panel\Network and Internet\Network and Setting Center - Configure the IP address of the computer’s Ethernet port with the same IP address class as the STAC2 (default is 192.168.200.xxx, where xxx is between 1 and 255)
Page 3 If no DHCP service, see Section I. Wifi Connexion It is possible to create a Wifi access point with its smartphone or Android tablet for the STAC2 connect on it. The STAC2 is able to connect itself automatically to three identified WIFI only. A user defined WIFI and two rescue Wifi.
Page 4 For some SmartPhone, this information is not easily visible, thus an alternative hotspot on which the STAC2 has static IPs is available. It is important to understand that this hotspot should not be used by default. Indeed, IP conflicts could be created by using this hotspot.
Page 5 STAC2 ◼ It is possible to prevent the STAC2 from connecting to Wifi via the button « Shutdown Wifi » Note: The new WIFI settings are operated by pressing the APPLY to STAC button at the top of the page.
