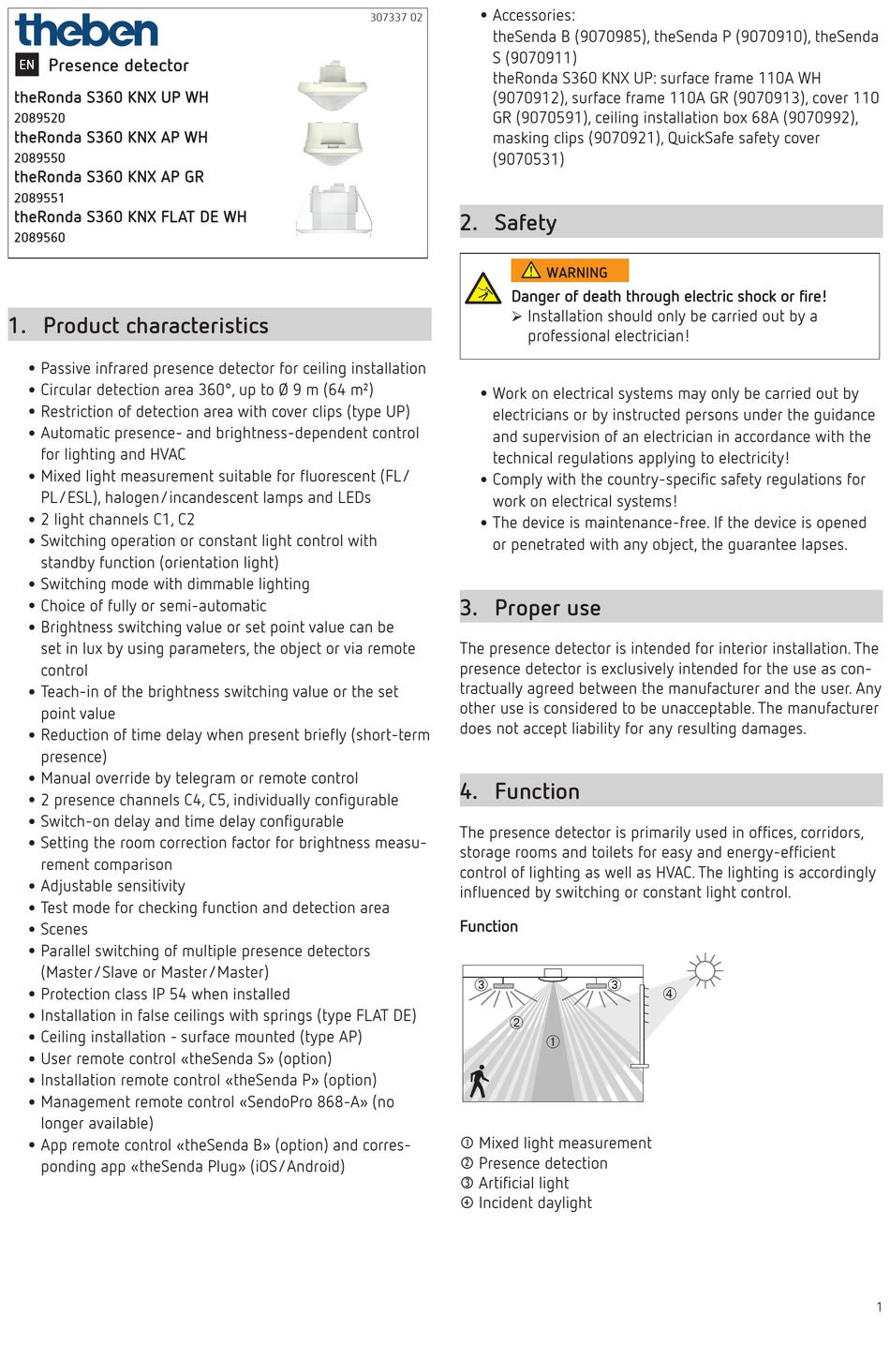

Presence detector
EN
theRonda S360 KNX UP WH
2089520
theRonda S360 KNX AP WH
2089550
theRonda S360 KNX AP GR
2089551
theRonda S360 KNX FLAT DE WH
2089560
1. Product characteristics
Passive infrared presence detector for ceiling installation
Circular detection area 360°, up to Ø 9 m (64 m²)
Restriction of detection area with cover clips (type UP)
Automatic presence- and brightness-dependent control
for lighting and HVAC
Mixed light measurement suitable for fluorescent (FL/
PL/ESL), halogen/incandescent lamps and LEDs
2 light channels C1, C2
Switching operation or constant light control with
standby function (orientation light)
Switching mode with dimmable lighting
Choice of fully or semi-automatic
Brightness switching value or set point value can be
set in lux by using parameters, the object or via remote
control
Teach-in of the brightness switching value or the set
point value
Reduction of time delay when present briefly (short-term
presence)
Manual override by telegram or remote control
2 presence channels C4, C5, individually configurable
Switch-on delay and time delay configurable
Setting the room correction factor for brightness measu-
rement comparison
Adjustable sensitivity
Test mode for checking function and detection area
Scenes
Parallel switching of multiple presence detectors
(Master/Slave or Master/Master)
Protection class IP 54 when installed
Installation in false ceilings with springs (type FLAT DE)
Ceiling installation - surface mounted (type AP)
User remote control «theSenda S» (option)
Installation remote control «theSenda P» (option)
Management remote control «SendoPro 868-A» (no
longer available)
App remote control «theSenda B» (option) and corres-
ponding app «theSenda Plug» (iOS/Android)
Accessories:
307337 02
theSenda B (9070985), theSenda P (9070910), theSenda
S (9070911)
theRonda S360 KNX UP: surface frame 110A WH
(9070912), surface frame 110A GR (9070913), cover 110
GR (9070591), ceiling installation box 68A (9070992),
masking clips (9070921), QuickSafe safety cover
(9070531)
2. Safety
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
professional electrician!
Work on electrical systems may only be carried out by
electricians or by instructed persons under the guidance
and supervision of an electrician in accordance with the
technical regulations applying to electricity!
Comply with the country-specific safety regulations for
work on electrical systems!
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
3. Proper use
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in offices, corridors,
storage rooms and toilets for easy and energy-efficient
control of lighting as well as HVAC. The lighting is accordingly
influenced by switching or constant light control.
Function
 Mixed light measurement
 Presence detection
 Artificial light
 Incident daylight
WARNING
1
