Presence detector
EN
thePrema S360 DALI UP WH
2070525
thePrema S360 DALI UP GR
2070526

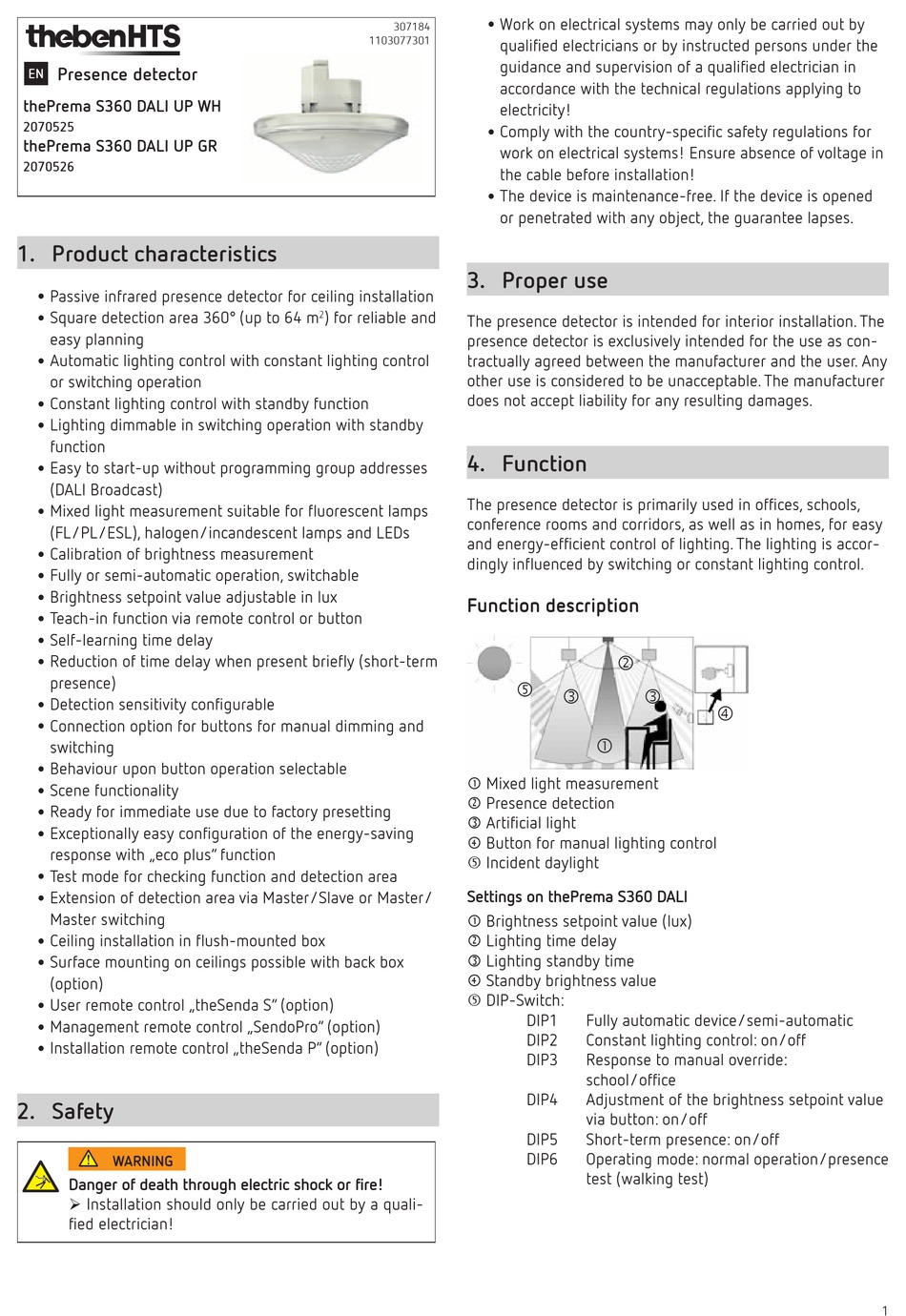

1. Product characteristics
Passive infrared presence detector for ceiling installation
Square detection area 360° (up to 64 m
easy planning
Automatic lighting control with constant lighting control
or switching operation
Constant lighting control with standby function
Lighting dimmable in switching operation with standby
function
Easy to start-up without programming group addresses
(DALI Broadcast)
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
Calibration of brightness measurement
Fully or semi-automatic operation, switchable
Brightness setpoint value adjustable in lux
Teach-in function via remote control or button
Self-learning time delay
Reduction of time delay when present briefly (short-term
presence)
Detection sensitivity configurable
Connection option for buttons for manual dimming and
switching
Behaviour upon button operation selectable
Scene functionality
Ready for immediate use due to factory presetting
Exceptionally easy configuration of the energy-saving
response with „eco plus" function
Test mode for checking function and detection area
Extension of detection area via Master/Slave or Master/
Master switching
Ceiling installation in flush-mounted box
Surface mounting on ceilings possible with back box
(option)
User remote control „theSenda S" (option)
Management remote control „SendoPro" (option)
Installation remote control „theSenda P" (option)
2. Safety
WARNING
Danger of death through electric shock or fire!
 Installation should only be carried out by a quali-
fied electrician!
307184
1103077301
3. Proper use
) for reliable and
2
The presence detector is intended for interior installation. The
presence detector is exclusively intended for the use as con-
tractually agreed between the manufacturer and the user. Any
other use is considered to be unacceptable. The manufacturer
does not accept liability for any resulting damages.
4. Function
The presence detector is primarily used in offices, schools,
conference rooms and corridors, as well as in homes, for easy
and energy-efficient control of lighting. The lighting is accor-
dingly influenced by switching or constant lighting control.
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Button for manual lighting control
 Incident daylight
Settings on thePrema S360 DALI
 Brightness setpoint value (lux)
 Lighting time delay
 Lighting standby time
 Standby brightness value
 DIP-Switch:
Work on electrical systems may only be carried out by
qualified electricians or by instructed persons under the
guidance and supervision of a qualified electrician in
accordance with the technical regulations applying to
electricity!
Comply with the country-specific safety regulations for
work on electrical systems! Ensure absence of voltage in
the cable before installation!
The device is maintenance-free. If the device is opened
or penetrated with any object, the guarantee lapses.
DIP1
Fully automatic device/semi-automatic
DIP2
Constant lighting control: on/off
DIP3
Response to manual override:
school/office
DIP4
Adjustment of the brightness setpoint value
via button: on/off
DIP5
Short-term presence: on/off
DIP6
Operating mode: normal operation/presence
test (walking test)
1
