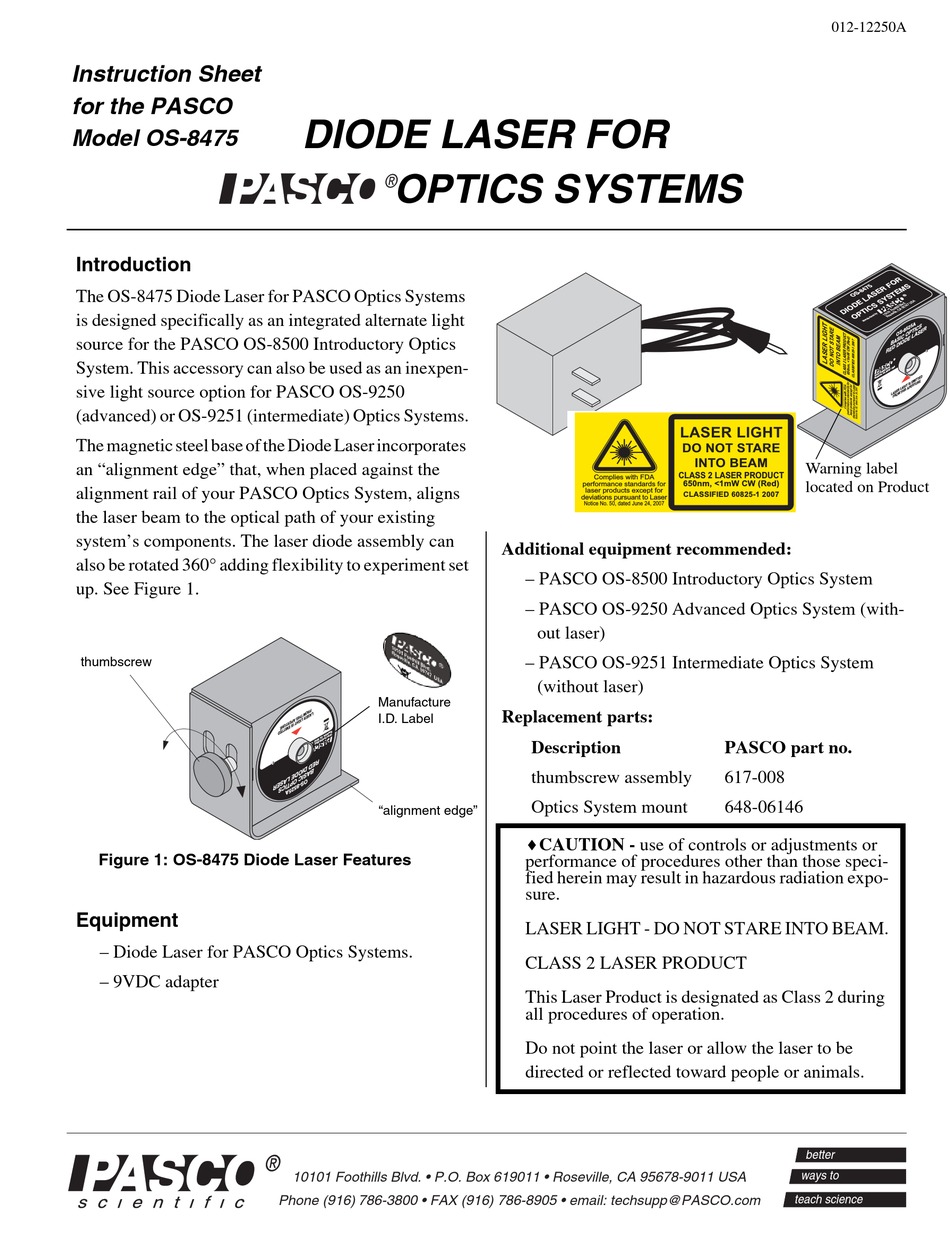

Pasco Scientific OS-8475 Instruction Sheet

Instruction Sheet
for the PASCO
Model OS-8475
Introduction
The OS-8475 Diode Laser for PASCO Optics Systems
is designed specifically as an integrated alternate light
source for the PASCO OS-8500 Introductory Optics
System. This accessory can also be used as an inexpen-
sive light source option for PASCO OS-9250
(advanced) or OS-9251 (intermediate) Optics Systems.
The magnetic steel base of the Diode Laser incorporates
an "alignment edge" that, when placed against the
alignment rail of your PASCO Optics System, aligns
the laser beam to the optical path of your existing
system's components. The laser diode assembly can
also be rotated 360° adding flexibility to experiment set
up. See Figure 1.
thumbscrew
Figure 1: OS-8475 Diode Laser Features
Equipment
– Diode Laser for PASCO Optics Systems.
– 9VDC adapter
DIODE LASER FOR
OPTICS SYSTEMS
Manufacture
I.D. Label
"alignment edge"
10101 Foothills Blvd. • P.O. Box 619011 • Roseville, CA 95678-9011 USA
Phone (916) 786-3800 • FAX (916) 786-8905 • email: techsupp@PASCO.com
LASER LIGHT
CLASS 2 LASER PRODUCT
Complies with FDA
performance standards for
laser products except for
deviations pursuant to Laser
Notice No. 50, dated June 24, 2007
Additional equipment recommended:
– PASCO OS-8500 Introductory Optics System
– PASCO OS-9250 Advanced Optics System (with-
out laser)
– PASCO OS-9251 Intermediate Optics System
(without laser)
Replacement parts:
Description
thumbscrew assembly
Optics System mount
CAUTION - use of controls or adjustments or
performance of procedures other than those speci-
fied herein may result in hazardous radiation expo-
sure.
LASER LIGHT - DO NOT STARE INTO BEAM.
CLASS 2 LASER PRODUCT
This Laser Product is designated as Class 2 during
all procedures of operation.
Do not point the laser or allow the laser to be
directed or reflected toward people or animals.
012-12250A
DO NOT STARE
INTO BEAM
Warning label
650nm, <1mW CW (Red)
located on Product
CLASSIFIED 60825-1 2007
PASCO part no.
617-008
648-06146
