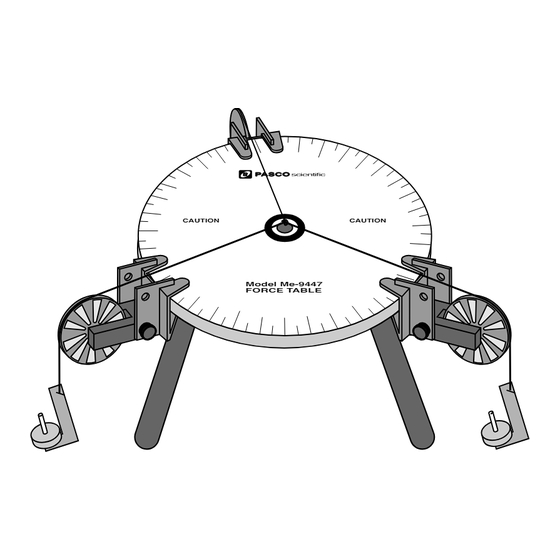

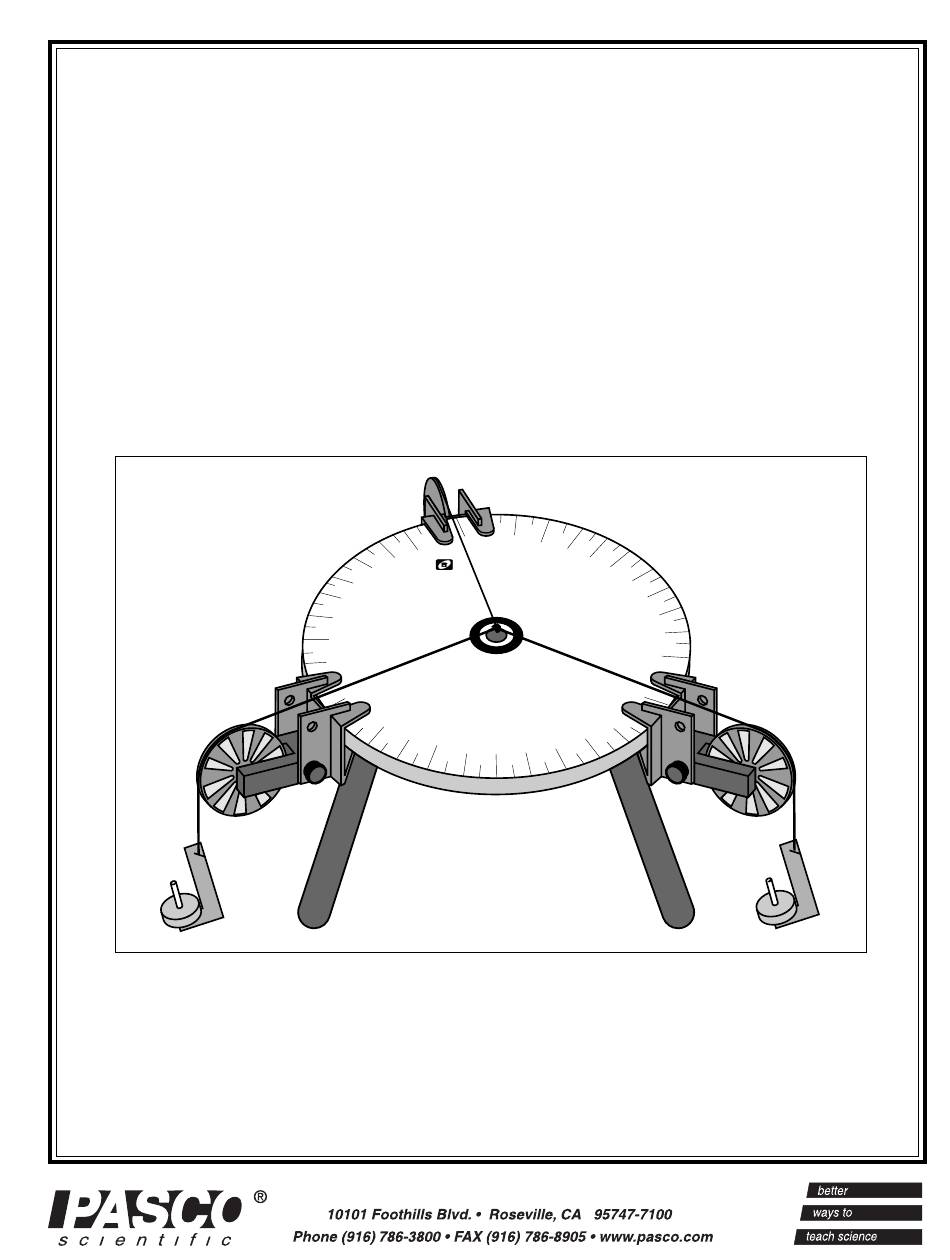

- Page 1 Instruction Manual 012-04715 4/96 and Experiment Guide Revision B for the PASCO scientific Model ME-9447 Force Table PASCO scientific CAUTION CAUTION Model Me-9447 FORCE TABLE Copyright © November 1991 $5.00...
-
Page 3: Table Of Contents
Force Table 012-04715B Table of Contents Section Page Copyright andWarranty ..................ii Equipment Return ..................... ii Introduction ...................... 1 Equipment ......................1 Assembly ......................2 Experiment 1: Vector Addition ................ 5 Appendix ......................9 Storage ....................9 Protractor ......................10 ®... -
Page 4: Equipment Return
ACCEPTED FOR RETURN WITHOUT AN Limited Warranty AUTHORIZATION FROM PASCO. PASCO scientific warrants this product to be free from When returning equipment for repair, the units defects in materials and workmanship for a period of one must be packed properly. Carriers will not accept year from the date of shipment to the customer. -
Page 5: Introduction
Force Table 012-04715B Introduction The PASCO Model ME-9447 Force Table is used to The PASCO force table has several excellent features: physically demonstrate the addition of vectors using • It is lightweight. the concept of equilibrium. The vectors are forces supplied by the weight of the masses that hang over ➤... -
Page 6: Assembly
Force Table Assembly Clip PASCO scientific CAUTION CAUTION Model Me-9447 FORCE TABLE Bottom of Force Table Figure 1 Force Table: Before and After Assembly Assembly ➀ through the hole in the center of the table. The advan- Remove the three legs from the clips on the bottom tage of the anchor string is that a higher precision can of the plastic force table disk. - Page 7 MAXIMUM ON MAXIMUM ON MASS HANGERS MASS HANGERS Center Post Model ME-9447 FORCE TABLE Ring Figure 2 Ring Method of Stringing Force Table Ring Method ➤ NOTE: A string can be attached to the See Figure 2. To use this method, screw the center post PASCO mass hanger by wrapping the string up until it stops so that it sticks up above the table.
- Page 8 012-04715B Force Table ®...
-
Page 9: Experiment 1: Vector Addition
012-04715B Experiment 1: Vector Addition EQUIPMENT NEEDED: ME-9447 Force Table, –3 pulleys and pulley clamps, –3 mass hangers, –mass set, –string, – metric ruler, –protractor, –2 sheets of paper Purpose The purpose of this experiment is to use the force table to experimentally determine the force which balances two other forces. - Page 10 012-04715B Force Table θ Figure 5 Components Component Method Two forces are added together by adding the x- and y-components of the forces. First the two forces are broken into their x- and y-components using trigonometry: x + A y and B x + B where is the x-component of vector...
- Page 11 Force Table 012-04715B Setup ➀ Assemble the force table as shown in the Assembly section. Use three pulleys (two for the forces that will be added and one for the force that balances the sum of the two forces). ➁ If you are using the Ring Method, screw the center post up so that it will hold the ring in place when the masses are suspended from the two pulleys.
- Page 12 012-04715B Force Table Analysis To determine theoretically what mass should be suspended from the third pulley, and at what angle, calculate the magnitude and direction of the equilibrant ( ) by the component method and the graphical method. Component Method On a separate piece of paper, add the vector components of Force A and Force B to determine the magnitude of the equilibrant.
-
Page 13: Appendix
Force Table 012-04715B Appendix Storage The force table may be stored with or without the pulleys and pulley clips attached. To minimize the storage space needed for the force table, remove the legs by unscrewing them from the table. Then put the legs in the clips that are on the underside of the force table. -
Page 14: Protractor
012-04715B Force Table Protractor Template ®... - Page 15 Force Table 012-04715B Protractor Template ®...
- Page 16 012-04715B Force Table ®...
- Page 17 Force Table 012-04715B Technical Support Feed-Back Contacting Technical Support If you have any comments about this product or this Before you call the PASCO Technical Support staff it manual please let us know. If you have any sugges- would be helpful to prepare the following information: tions on alternate experiments or find a problem in the •...
