- Page 1 OWNER’S M NU L Thank you for choosing our Air Conditioner. Please read this owner’s manual carefully before operating the unit and keep it for future reference. 00724-25/06/2015 © Tous droits réservés, GREE Canada, 2017...
-
Page 2: Table Of Contents
Operation Notices Precautions....................2 Parts name....................6 Screen Operation Guide Buttons on remote control................7 Introduction for icons on remote control display screen........ 7 Introduction for buttons on remote control............ 8 Fonction WIFI....................14 Operation guide.................... 15 Replacement of batteries in remote control..........15 Emergency operation.................. - Page 3 Indicates a hazardous situation that, if not avoided, will DANGER result in death or serious injury. Indicates a hazardous situation that, if not avoided, could WARNING result in death or serious injury. Indicates a hazardous situation that, if not avoided, may CAUTION result in minor or moderate injury.
- Page 4 Precautions WARNING Operation and Maintenance • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 5 Precautions WARNING Operation and Maintenance • Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. • Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner.
- Page 6 Precautions WARNING Attachment • Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. • Must follow the electric safety regulations when installing the unit. • According to the local safety regulations, use qualified power supply circuit and circuit break.
- Page 7 Precautions WARNING • Do not put through the power before finishing installation. • If the power supply wire is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 8 Precautions WARNING • If you need to relocate the air conditioner to another place, only a qualified person can perform the work. Otherwise, it may cause personal injury or damage. • Select a location which is out of reach for children and far away from animals or plants.If it is unavoidable, please add a fence around the outdoor unit for safety purpose.
-
Page 9: Parts Name

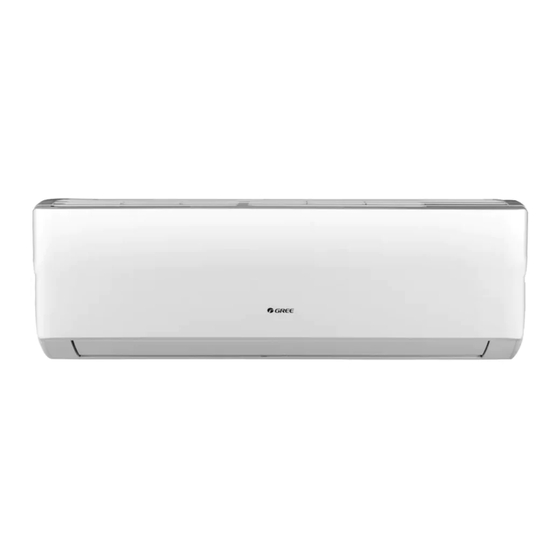

Parts name Indoor Unit Air inlet Panel Filter Horizontal louver Power Air outlet Temp. display Remote control NOTICE : Actual product may be different from above graphics, please refer to actual products. - Page 10 ON/OFF button FAN button MODE button +/- button TURBO button Button Button CLOCK button TIMER ON/ TIMER OFF button TEMP button I FEEL button LIGHT button ON/OFF button FAN button X-FAN button QUIET button MODE button +/- button SLEEP button I feel Set fan speed Quiet...
-
Page 11: Introduction For Buttons On Remote Control
Introduction for buttons on remote control • After putting through the power, the air conditioner will beep. The operation indicator " " is ON (red indicator). After that, you can operate the air conditioner by using the remote control. • Under ON status, pressing the button on the remote control, the signal icon on the remote control display will blink once and the air conditioner will beep, wich means the signal has been sent to... - Page 12 Introduction for buttons on remote control TURBO BUTTON While running in Cool or Heat mode, press to turn the Turbo function on or off. When the Turbo function is on, the Turbo symbol will be displayed. The symbol will automatically disappear if the mode or fan speed is changed.
- Page 13 TEMP button Press this button to select from the setting temperature, indoor ambient temperature and outdoor ambient temperature. When the indoor unit is firstly turned on, it will display the setting temperature ” ”. When the display status shows ” ”, it is the in- door ambient temperature that is displayed.
- Page 14 Introduction for buttons on remote control Press this button, can select Sleep 1 ( ), Sleep 2 ( ), Sleep 3 ( ) and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted. • Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status after run for one hour, the main unit setting temperature will increase 1°C (1°For 2°F), 2 hours, setting temperature increased 2°C (3°For 4°F), the unit will run at this setting temperature;...
- Page 15 Utilisation des boutons de la télécommande • Sleep 3 - the sleep curve setting under Sleep mode by DIY: (1) Under Sleep 3 mode, press "Turbo" button for a long time, remote controller enters into user individuation sleep setting status, at this time, the time of remote controller will display "1 hour", the setting temperature "88"...
- Page 16 About swing up and down 1. Press swing up and down button continuously more than 2s, the m ain unit will swing backand forth from up to down , and then loosen the button, the unit will stop swing and present position of guide louver will be kept immediately. 2.
- Page 17 Support Android 4.0 and above version above version Scan the QR code or search "GREE+" in the application market to download and install it. When "GREE+" App is installed, register the account and add the device to GREE+ App Download Linkage achieve long-distance control and LAN control of Gree smart home appliances.
-
Page 18: Operation Guide
Operation guide General operation 1. After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3. -
Page 19: Emergency Operation
Emergency operation If the remote control is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. As shown in the figure, open the panel, press the auxiliary button to turn on or turn off the air conditioner. When the air conditioner is turned on, it will operate under auto mode. - Page 20 Clean and maintenance Clean filter Very Important : before cleaning your main filter, check if there is a spe- cial filter attached to it (rectangular shape, as illustrated on the following page – p.20); take it out and clean it separately, where applicable, and as per instructions detailed on page 20.
- Page 21 Some models are provided with : (1) A Bio-Sterilization with Cold Catalyst Filter: a new purified material with superior bio- bactericide properties; it is a high efficient bacteria sterilizer and dust collector. Filter Life Span: filter needs to be replaced every 6 to 12 months.
-
Page 22: Malfunction Analysis
Malfunction analysis General analysis Please check below items before asking for maintenance. If the malfunction still can't be eliminated, please contact local dealer or qualified professionals. Problem Check items Solution Whether it’s interfered severely Cut the power supply off and put the (such as static electricity,stable power back after about 3min, and voltage)? - Page 23 Malfunction analysis Problem Check items Solution Power failure? Wait until power resumes. Air switch trips off ? Ask professional to replace air switch. Wiring has malfunction? Ask professional to replace it. conditioner can’t Has the unit been turned on im- Wait for 3min, and then turn operate mediately after being...
- Page 24 Malfunction analysis Problem Check items Solution Eliminate the source of the odour. Either there is an odour source in the room, such as furniture or Odours are Clean the filter. cigarette, or the filter is dirty. emitted There may be interference, Cut the power supply off and such as thunder, wireless put the power back and then...
- Page 25 Malfunction analysis Error code When air conditioner status is abnormal, temperature indicator on indoor unit will blink and display corresponding error code. Please refer to list below for identification of error code. Error code Troubleshooting It can be eliminated after restarting the unit. If not , please contact qualified professionals for service.
-
Page 26: Installation Dimension Diagram
Installation dimension diagram At least 15cm At least 15cm... - Page 27 Safety precautions for installing and relocating the unit To ensure safety, please be mindful of the following precautions. WARNING When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant. Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury.
-
Page 28: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill • Contact your local agent or a certified technician for installation. Selection of installation location Installing the unit in the following 1. There should be no obstruction near places may cause malfunction. -
Page 29: Requirements For Electric Connection
Requirements for electric connection 1. Must follow the electric safety regulations when installing the unit. 2. According to the local safety regulations, use qualified power supply circuit and air switch. 3. Make sure the power supply matches with the requirement of air conditioner. -
Page 30: Installation Of Indoor Unit
Installation of indoor unit Recommend the installation location to the client and then confirm it with the client. Step Two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level meter and then point out the screw fixing holes on the wall. - Page 31 Installation of the indoor unit Note: Indoor Outdoor • Pay attention to dust prevention and take relevant safety measures when opening the hole. • The plastic expansion particles are 5-10 not provided and should be bought locally. Step Four: outlet pipe 1.The pipe can be led out in the 2.
- Page 32 Installation of indoor unit Hex nut diameter Tightening torque (N-m) open-end wrench 30~40 union nut pipe torque wrench indoor pipe 4.Wrap the indoor pipe and joint of connection pipe with insulating pipe, insulating pipe and then wrap it with tape. Step Six: install drain hose 1.Connect the drain hose to the outlet pipe of indoor unit.
