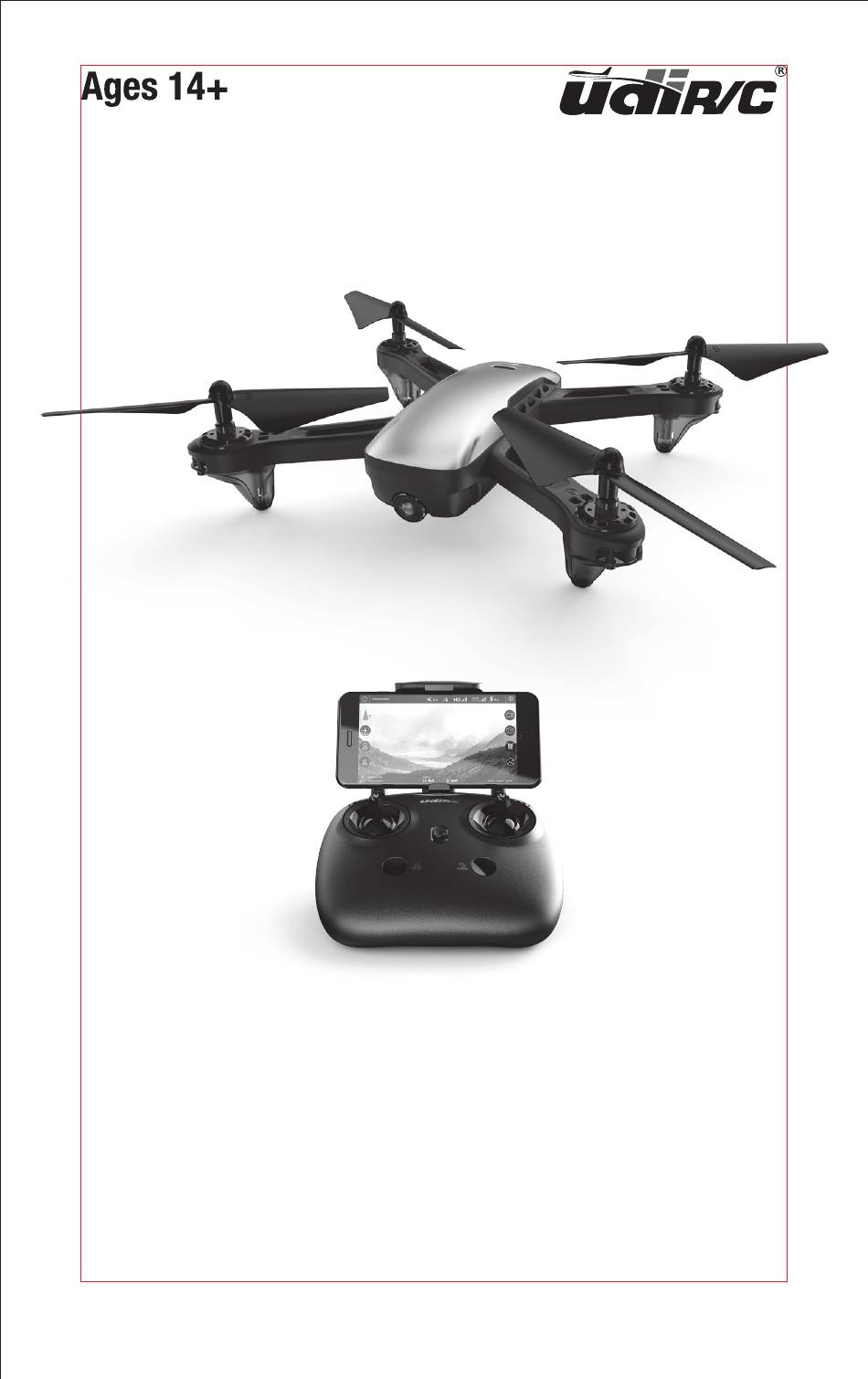

- Page 1 U52G Operation Guidance Suitable for 720P/1080P. This product supports GPS positioning and is recommended for outdoor flight! * This wifi camera pinpoint is 5G, please confirm whether the phone is supported.
- Page 2 www.udirc.com...
-
Page 3: Table Of Contents
www.udirc.com Catalog Instruction for Drone and Transmitter Parts installation Check List Before Flight Pre-flight Operation Instruction Functions Introduction To know your APP Display the photos and video Spare Parts Troubleshooting Important Statement * A reminder that the toy shall be used with caution since skill is required in order to control the flight and avoid collisions with the user, objects or third parties. -
Page 4: Instruction For Drone And Transmitter
www.udirc.com Instruction for Drone and Transmitter Drone Front Propeller A Propeller B Drone upper Top cover housing Left Right Propeller B Propeller A Power Switch Rear Camera Front LED Front LED (Green) (Green) TF Card Slot Drone bottom housing Rear LED Rear LED (Red) (Red) - Page 5 www.udirc.com Exploded View Name Name Propeller A Top cover Bearing Switch board Gears Lipo battery Motor holder Receiver board Red LED motor board Battery holder Counter clockwise motor (White connector) Magnetic plate Transmission shaft Wifi camera board Lampshade Drone bottom housing Cushion Camera holder part Propeller B...
- Page 6 www.udirc.com Transmitter Phone Holder Power switch Video Photo Left stick Right stick (press down to follow) (press down to surround) One key returning home One key taking off / One key landing High/middle/ low speed (short press) Trimmer Mode Button Toggle GPS (long press) Battery Cover Key Function...
- Page 7 www.udirc.com Encircling key: Press down the key, the drone enters the function of encircling, press it again to exist. The key to follow: Press down the key, the drone enters the function of following, press it again to exist. High/middle/low speed (short press): Short press the key to have the switch of high/ middle/low speed mode GPS switch (long press):...
-
Page 8: Parts Installation
www.udirc.com Parts installation Charging Instruction for Drone Battery 1. Connect the drone battery with USB cable first and then choose one of the method as below picture shown to connect with USB plug. 2. The red USB indicator light keeps bright when charging and the light turns green when fully charged. - Page 9 www.udirc.com Propeller installation diagram 1. To remove the screw by screw driver in counter clockwise,and remove the damaged propeller upwards(picture 9). 2. To install the new propeller,make sure the propeller rotated direction is correct first, and then mount propeller on transmission shaft of the motors and press down, and then tighten the screw.
-
Page 10: Check List Before Flight
www.udirc.com Precautions before flying 1. Make sure the transmitter and the battery of the drone are saturated. 2. Before starting, please confirm that the left stick of the transmitter is in the middle position. 3. While turning on the drone, the order of power switch must be obeyed. Before turning off the drone, turn on the power switch of the transmitter first, then turn on the power switch of drone;The power switch of the drone should be shut down first,then turn off the transmitter. -
Page 11: Pre-Flight Operation Instruction
www.udirc.com Flying steps Opposite frequency Turn on the power. Pull the left stick to the lowest position and let go, the light goes off slowly. It indicates the transmitter enters the frequency state. Press the key of power for two seconds to start the drone, it makes the right frequency successfully. - Page 12 www.udirc.com GPS Signal search After the successfully right frequency, the drone enters the search of GPS signal automatically. When the left blue indicator of transmitter turns from shiny to long bright, it indicates the connection to GPS signal is successful finished. If not, the drone can’t fly up.
- Page 13 www.udirc.com Unlocking/locking the motor Unlock the motor: Push the left and right stick inward to the 45 degree angle simultaneously. Lock the motor: The operation will cause the motor stop running immediately before the drone takes off. One key taking off/one key landing After unlocking the drone, press the key for about one second, the drone will fly up to 1.2 meters high above the sky automatically.
- Page 14 www.udirc.com Flying Control Forward / Backward Trimmer When taking off, if the drone tilts forward , press the trimmer button, and push the right stick backward. Otherwise push it forward. Left / Right Tilts Trimmer When taking off, if the drone tilts to the left, press the trimmer button, Trimmer and push the right stick to the right.
-
Page 15: Functions Introduction
www.udirc.com Function Introduction Video While taking videos, click the key to start videoing. The transmitter will make the sound of “di” to indicate you to operate it. If you want to stop it, you can click it again. Photo While taking photos, press the key of taking photos once, you can take one photo;... - Page 16 www.udirc.com Encircling flight Press down the right stick, the transmitter will make the sound of “di”, then it goes to the function of encircling flight. The drone will fly to a default radius then it waits for the direction controlled by the user. Adjust the speed and direction of the drone by manipulating the right stick.
- Page 17 www.udirc.com High / middle / low speed mode switch Press down the key, it will make the sound of “di”, this indicates to the low speed mode”L”; Press it down again, it makes the sound of ‘di’ twice, that comes to the middle speed mode “M”;...
-
Page 18: To Know Your App
www.udirc.com Possibility of entry into runaway protection mode * The remote control is off. * Flight distance exceeds the effective distance of remote control signal transmission. * There is an obstacle between the remote control and the drone. * Remote control signal is disturbed. Stuck Protection 1. - Page 19 www.udirc.com * To take photo and record video (Suitable for 1080P only.) 1. Insert the TF card to the slot in accordance with Picture 13. (*TF card is not included) 2. Photos taken will be saved to the mobile phone library and the TF card in the drone,and the video file is saved on the TF card only;...
-
Page 20: Spare Parts
Components (Sold separately) These are the components for choice below. For your convenient purchase, now we list each part for you, you can purchase ones you want from local distributor. U52G-01 U52G-02 U52G-03 U52G-04 Drone upper housing Drone bottom housing... - Page 21 Bearing Transmission shaft U52G-29 U52G-30 U52G-31 U52G-32 Acrylic ring Screw driver Allen wrench Transmitter * U52G-33 * U52G-34 * U52G-35 TF Card Card reader 1080P Wifi (suitabe for 1080P only) (suitabe for 1080P only) camera board (suitabe for 1080P only)
-
Page 22: Troubleshooting
www.udirc.com Troubleshooting Problem Problem Cause Solution 1. Low battery. 1. Replace the controller battery. 2. Install the batteries following the polarity 2. The batteries are incorrectly positioned. controller indicators. indicator 3. Clean the dirt between the battery and light is off. 3. - Page 23 www.udirc.com FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
