udir/c U61 User Manual

Suitable for indoor flight
Hide thumbs

Advertisement

Quick Links

Download this manual
U61
USER
MANUAL
Suitable for indoor flight
▲This product is suitable for users over 14 years old.
▲Stay away from the rotating propeller
▲Read the<important statement and safety guidelines >carefully.

Advertisement

loading
Need help?

Need help?

Do you have a question about the U61 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for udir/c U61

Summary of Contents for udir/c U61

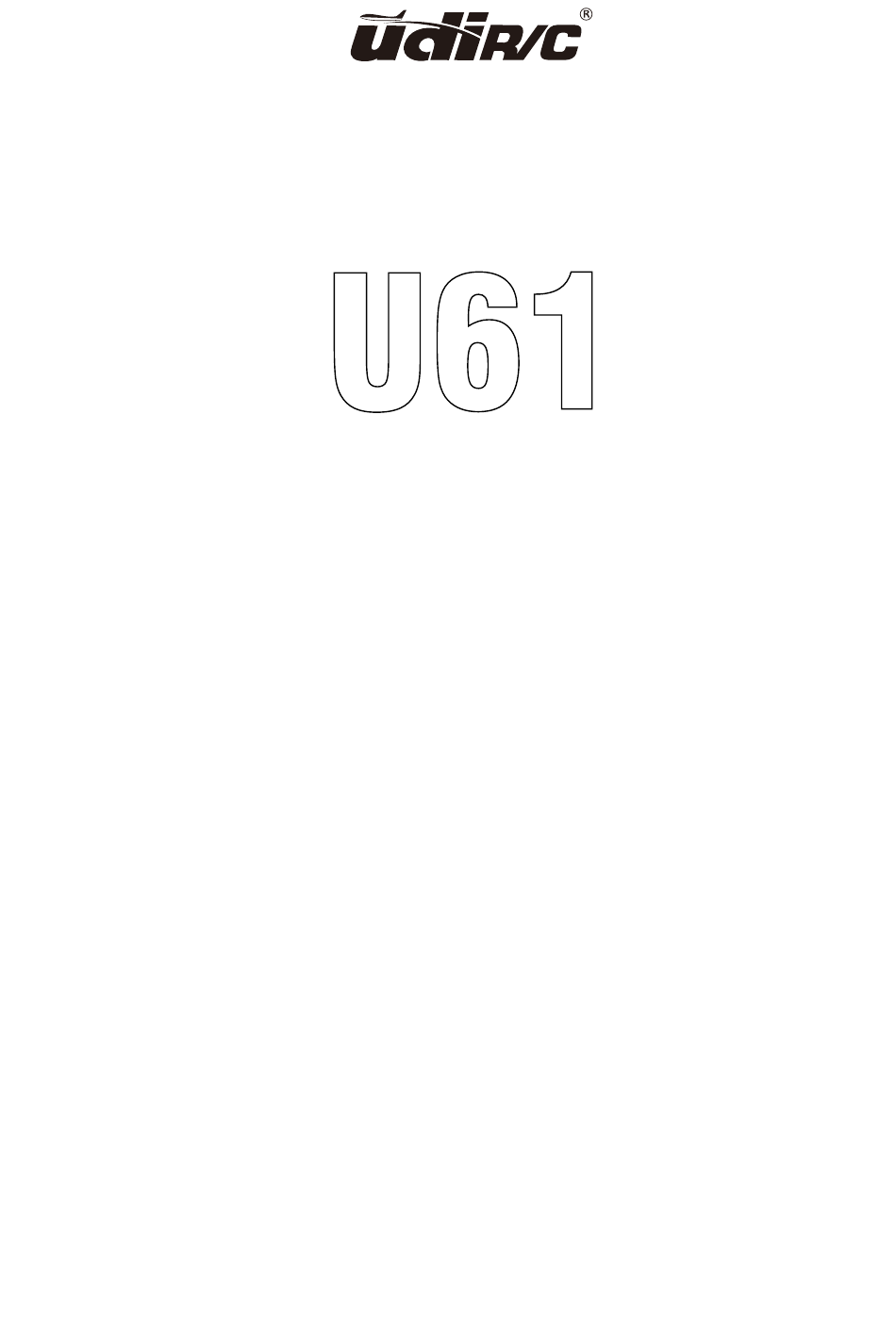

  • Page 1 USER MANUAL Suitable for indoor flight ▲This product is suitable for users over 14 years old. ▲Stay away from the rotating propeller ▲Read the<important statement and safety guidelines >carefully.
  • Page 2 Ready Before Take Off Drone preparation Front (Prow) Main frame Propeller B Propeller A Drone Cover Housing Propeller A Propeller B Rear (Tail) Camera ON OFF Power Switch Drone LED Front (Prow) Rear (Tail)
  • Page 3 Charging Instruction Battery power is insufficient in the original plant. It must be charged saturated before it can be used. Connect the original charging cable with the drone, and then connect other USB charging port. The drone red LED keeps bright when charging and the light turns green when fully charged.
  • Page 4 Transmitter Preparation Phone Holder Jack Heading Hold Mode Photo Video Take Off / Landing/ Power-LED Emergency Stop Left Stick Right Stick Trimmer Speed switching (Press Down) (Press Down) Power Switch Phone (not include) Notice: Taking photo and recording video are available after connecting with smart phone.

  • Page 5: Flight Operations

    Mobile Phone Installation ① Take out the phone holder and insert into the transmitter. ② Pull out upper lamp of the holder and put the phone into the holder, then release the clamp, and the phone will be fixed on the holder. Please make sure that the button on phone is not clamped.
  • Page 6 Transmitter connect with Drone Frequency Pairing ① Turn on the prower on the transmitter, the transmitter indicator light will flash quickly. Press down ② Pull the left stick until bottom and then release, the transmitter power-LED will flash slowly, and enter frequency pairing.
  • Page 7 Right stick Forward Fly to the left Backward Fly to the right Take off After the frequency pairing is successful, press the "take off/land" button, the transmitter will sound "di", and the drone will automatically rises and flies at an altitude of about 1.2 meters.
  • Page 8 Heading Hold Mode The default setting is NOT Heading Hold Mode. Heading Hold Mode means that the user can operate the aircraft without having to distinguish directions. This mode is suitable for beginners, or when it is difficult to distinguish the forward and backward direction of the drone. ①...
  • Page 9 Speed mode switch Medium speed default Press down the right stick in the center button, the transmitter will sound "di" to enter the Low Press down Speed Mode "L". Press down again, the transmitter will sound "di.di" to enter the Medium Speed Mode "M". Press down again, the transmitter will sound "di.di.di"...
  • Page 10 Flying Trimmer Forward / Backward Trimmer During the flight, if the drone tilts forward, Press down press down the left stick in the center button, and push the right stick backwards. Otherwise push forwards. Left and right turning trimmer During the flight, if the drone head rotates to Press down left,then press down the left stick in the center button and push the left stick to right.
  • Page 11 Unlocking/locking the motor Push the left and right stick inward to the 45 degree angle simultaneously. ① In standby, unlocked the motor and working. ② In Working, locked the motor and stop rotating. Altitude Hold Mode Intelligent flight control system calculates the hovering position, more stable control feature, makes it easier for beginners to control.

  • Page 12: Parts Replacement

    Parts Replacement Propeller Replacement Disassembly: hold the propeller vertically and then pull the propeller out. Installation: mount propeller aim the central shaft of the motor and press down. There is different A and B remarks on the propeller. Be sure that the propellers are installed to the correct motors, which remarked the Letters to identify on the motor holder, if not, then the drone can not work normally.
  • Page 13 Parameter Drone APP / Live View Model App Name Flyingsee Weitht 63g (typical value) Image transmission 2.4GHz wifi Maximum 7 minutes(calm) system flight time Real time image 480 P@20 fps WIFI Distance 30m (indoor and transmission unobstructed) Operation System This software is Operating 0°C to 40°C suitable for mobile...

  • Page 14: Troubleshooting Guide

    Troubleshooting Guide Problem Problem Cause Solution 1. Low battery. 1. Replace the transmitter battery. 2. The battery positive pole and 2. Install the battery in accordance with transmitter negative pole are in reverse order. the user manual. indicator light is off 3.

  • Page 15: Fcc Note

    FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 16 The equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device. This device complies with Part 15 of the FCC Rules.
