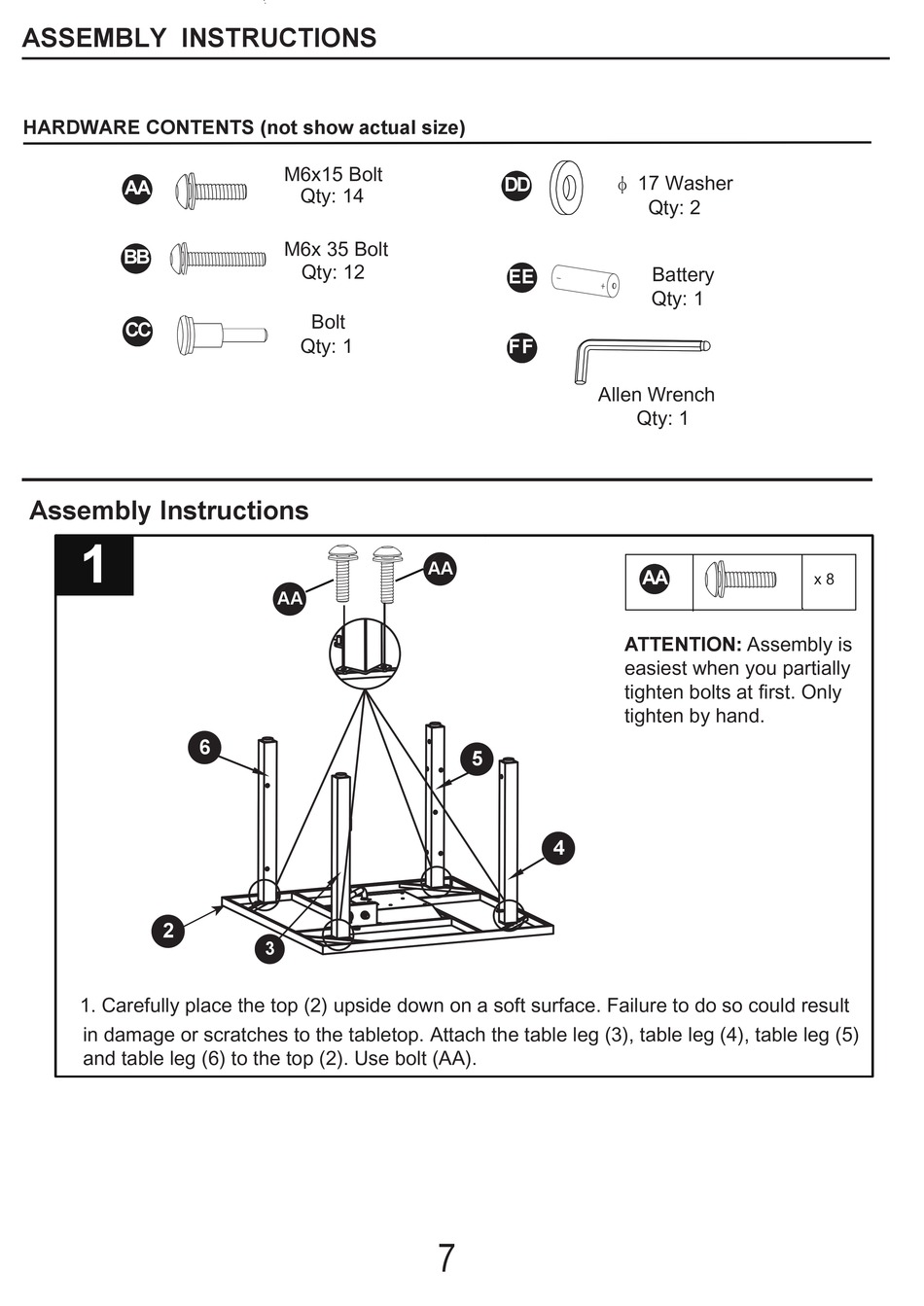

ASSEMBLY INSTRUCTIONS

HARDWARE CONTENTS (not show actual size)
AA
AA AA
AA
BB
AA AA
AA
CC
AA AA
AA
Assembly Instructions
1
1. Carefully place the top (2) upside down on a soft surface. Failure to do so could result
in damage or scratches to the tabletop. Attach the table leg (3), table leg (4), table leg (5)
and table leg (6) to the top (2). Use bolt (AA).
M6x15 Bolt
Qty: 14
M6x 35 Bolt
Qty: 12
Bolt
Qty: 1
7
DD
φ 17 Washer
AA AA
AA
Qty: 2
EE Battery
AA AA
AA
Qty: 1
FF
AA AA
AA
Allen Wrench
Qty: 1
AA
AA AA
AA
ATTENTION: Assembly is
easiest when you partially
tighten bolts at first. Only
tighten by hand.
x 8
