ALLEN + ROTH and logo design are trademarks
or registered trademarks of LF, LLC. All rights
reserved.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside non-enclosed
area) Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do
NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
INSTALLER: Leave this manual with the
appliance. CONSUMER: Retain this manual
for future reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
DANGER
• This appliance can produce carbon monoxide which has
no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a
camper, tent, car or home.
A TTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com.
AS21274
1

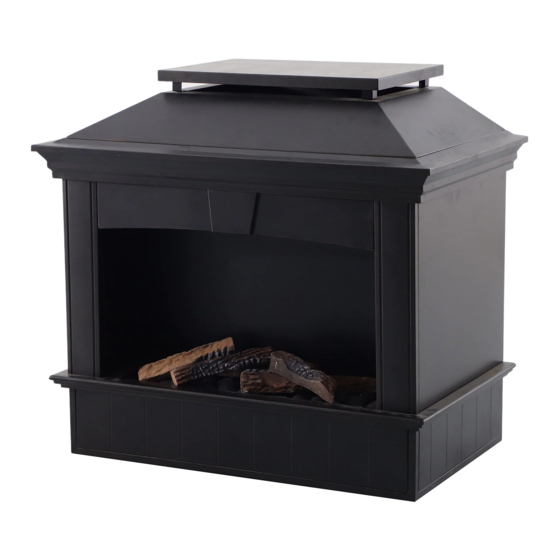

Outdoor Fireplace
CARBON MONOXIDE HAZARD
Purchase Date
ITEM # 3836921
3836922
MODEL
# FHTS80246-1
FHTS80246
Español p. 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the FHTS80246-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allen + Roth FHTS80246-1

  • Page 1 ITEM # 3836921 3836922 Outdoor Fireplace ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All rights MODEL # FHTS80246-1 reserved. FHTS80246 Español p. 14 WARNING FOR YOUR SAFETY: For Outdoor Use Only (outside non-enclosed area) Do Not Use For Cooking.
  • Page 2: Table Of Contents

    Table of Contents ............. .
  • Page 3 Top Lid Decorative Plate Top Cover Rectangular Bowl Top Frame Burner Head Back Panel Pilot Housing Left Panel Manual Electric Igniter Right Panel Control Knob Base Regulator/Hose Assembly Polyester Cover AAA Battery Left Clapboard Pumice Stone Right Clapboard Log 1 Log 2 Back Clapboard Log 3...
  • Page 4: Important Safety Information

    HARDWARE CONTENTS (not shown actual size) M6 x 15 mm Allen Wrench Combination Bolt Qty . 34 Qty. 1 IMPORTANT SAFETY INFORMATION WARNING FIREPLACE IS FOR OUTDOOR USE ONLY Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person.
  • Page 5 IMPORTANT SAFETY INFORMATION (Continued) · Do not store or use gasoline or other flammable vapors an d liquids within 25 feet (7.62m) of this or any other appliance. · Do not store any combustible materials in the base enclosure. · The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely operate this outdoor fireplace.
  • Page 6: Propane (Lp) Dangers And Warnings

    PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product. Propane Characteristics: • Flammable, explosive under pressure, heavier than air and settles in pools in low areas. •...
  • Page 7: Caution

    CAUTION CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the log and pumice stone tback to heir proper position, being careful to avoid the flame. CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF”, wait 5 minutes, fan with a newspaper or magazine and repeat lighting procedure.
  • Page 8: Hose & Regulator Assembly And Replacement

    HOSE & REGULATOR ASSEMBLY AND REPLACEMENT 1. This fireplace comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fireplace must be used. Only a hose and regulator specified by manufacturer can be used for replacement.
  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Attach the gas tank barrier (13) to the base (7) by using M6 x 15 mm ATTENTION: Assembly is combination bolts (AA). easiest when you partially tighten bolts at first. Only Hardware Used tighten by hand. Attach the left panel (5) and the right panel (6 ) to the base (7) by using M6 x 15 mm combination bolts (AA).
  • Page 10 ASSEMBLY INSTRUCTIONS Attach the left clapboard (9) and the right clapboard (10) to the back clapboard (11) by using M6X15mm combination bolts (AA). Hardware Used 5. Attach the assembled left, right and back clapboard (9, 10 & 11) to the base (7) by using M6X15mm combination bolt (AA). Hardware Used Attach the left front baffle plate (14) and the right front baffle plate(15)
  • Page 11 ASSEMBLY INSTRUCTIONS Attach the top clapboard (12) to the assembled left, right and back clapboard (9, 10 & 11) by using M6x15mm combination bolt (AA) as per right shown. Hardware Used 9. Attach the pin (BB) to the back panel (4) and the decorative plate (16) as per right shown.
  • Page 12 ASSEMBLY INSTRUCTIONS 12.. Attach the assembled top lid (1) and the top cover (2) to the assembled top frame (3) as per right shown. Place on the pumice stone (24) and the log (25, 26, 27, 28 & 29) to the burner bowl. CAUTION: To ensure proper function, the screen on this burner should be free of pumice stone.
  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS Installing LP Gas Tank To operate ,you will need one precision-filled standard girll LP gas tank with external valve threads. CAUTION: LP gas tank must be properly disconnected and removed 20 lb prior to moving this outdoor fireplace. 9 Kg 12.2 in.
  • Page 14 OPERATING INSTRUCTIONS (CONTINUED) Operating Instructions Checking for Leaks WARNING: Before using this outdoor fireplace, make sure you Figure 1 have read, understand and are following all information provided LP Gas in the “Important Safety information” section on page 4. Connection Failure to follow those instructions can cause death, serious, injury or property damage.
  • Page 15: Cleaning And Care

    OPERATING INSTRUCTIONS (CONTINUED) 12. If igniter does not light burner: a. Wearing heat-resistant gloves, position a long lit match or long lit butane lighter near the pilot housing. b. Push and turn control knob to “ON ” C. Remove match/lighter once burner is lit. 13.
  • Page 16: Troubleshooting

    CARE AND MAINTENANCE 1. Cleaning your fireplace on a consistent and regular basis will help aid in a longer lasting top. 2. Cover your fireplace with the included cover when not in use to protect it from the elements. 3. We recommend that your fireplace be stored indoors during the winter months. 4.
  • Page 17 ONE-YEAR LIMITED WARRANTY We warrant to the original end user purchaser that all aspects of this product will be free of defects in material and workmanship for one (1) year from the date of purchase. If within the stated warranty period a product is found to be defective in material or workmanship, the purchaser must contact the manufacturer's customer service department at 1-866-439-9800.
  • Page 18 PRODUCT REGISTRATION For faster warranty service, please register your product immediately. Please call 1-866-439-9800, 8 a.m. - 8 p.m., EST. Monday- Sunday.You could also contact us at partsplus@lowes.com or visit www.lowespartsplus.com. REPLACEMENT PARTS For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m.
