3. Connections

3.1 Connect to AC power

element X is compatible with AC100-120V and AC220-240V power specifications.

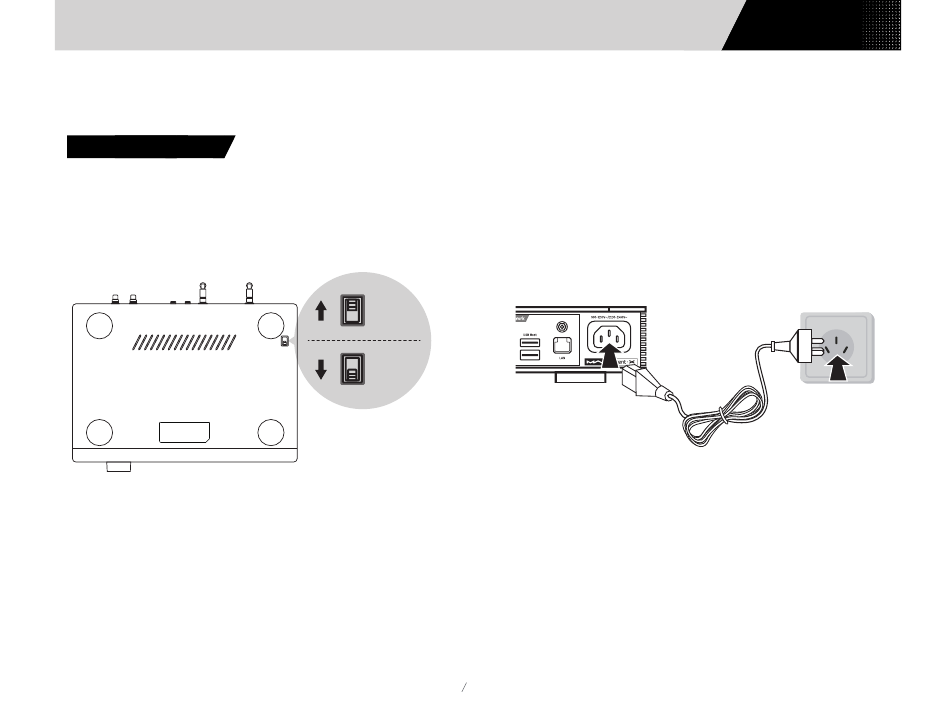

Please make sure to switch the bottom power voltage according to your local valtage
enviroment before using. As shown:
The two sections of the voltage switch are 115V and 230V, each section for:
115V position is fit for AC100V-120V 50/60Hz
230V position is fit for AC220V-240V 50/60Hz
AC 220-240V
230
XLR XLR
RCA RCA
R L
115
AC 100-120V
Please use the right three-phase power cable which includes the ground terminal and
ensure the ground is correctly connected, or you will have the possibility of electric
shock when you touch it.
Please unplug the power cable, if you need the element X to be disconnected from the
power.
