Clas Ohlson EMW100TM Quick Start Manual

Remote Control with LCD,
Art. no. 36-2349, Model EMW100TM
Please read the entire instruction manual before using and save it for
future use. We apologise for any text or photo errors and any changes
of technical data. If you have any questions concerning technical pro-
blems please contact our Customer Service Department
Product Description
Remote control with LCD intended for use with remote switch 36-1183.
- Turn on and off devices connected to electrical sockets.
- Control up to 8 different channels.
- Turn on or off each channel separately or all at once with one
press of a button.
- 6 on and off settings can be programmed per channel/switch.
- Maximum range approx. 60 metres.
- Display with background light.
- Indoor use only.
Remote control batteries (1x 6LR61) are required.

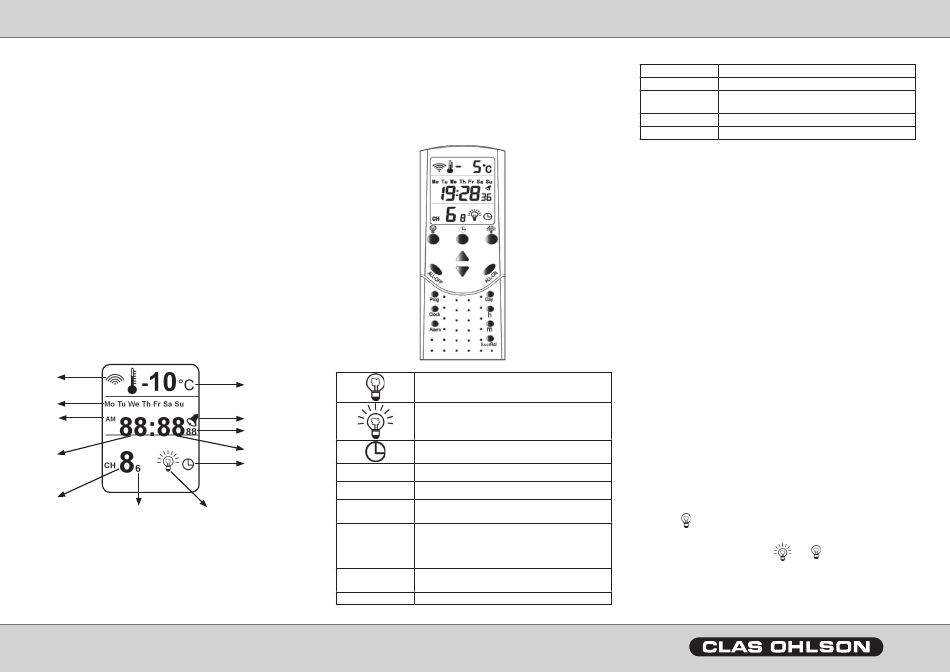

Buttons and Functions
Description of Display
1
2
3
4
5
6 7
1. Sender status 7. Channel on/off
8. Timer status
2. Day
3. AM / PM 9. Minutes
4. Hours 10. Seconds
5. Channel number 11. Alarm status
6. Timer number 12. Temperature
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service. Internet: www.clasohlson.co.uk
Display Lighting
The backlit display is activated by pressing ▲ or ▼. The display
automatically turns off after a few seconds.
Description of Buttons
Deactivate remote switch / Configure channel
12
for remote switch.
Activate remote switch.
11
10
Activate timer for selected channel.
9
8
▲
Channel up.
▼
Channel down.
Prog
Activate programming mode for switching on
and off.
Clock
1. Activate time setting.
2. Return to normal time display.
3. Press and hold to switch between 12 and
24 hour display.
Alarm
Press and hold for 3 seconds to set alarm
time.
Day
Select weekday.
ENGLISH
h
Adjusts hours.
m
Adjusts minutes.
Esc / Rcl
Activates or deactivates the alarm (in alarm
setting mode).
ALL-OFF
Deactivates all channels simultaneously.
ALL-ON
Activates all channels simultaneously.
Getting Started
Inserting the battery
A battery type 6LR61 (9V) is required to use the remote control.
- Open the battery cover on the back of the unit. Insert a new
battery, type 6LR61, and replace the battery cover. Ensure that
the battery cables are not trapped when replacing the battery
cover.
Note Programmed remote switches will be lost if the battery replace-
ment takes longer than 10 seconds.
Setting the Time
Correct time must be set to use the timer functions on the remote
control. The time display can be switched between 12- and 24-hour
display. To change the display, press and hold [ Clock ] for 3 seconds
during normal time display. AM or PM to the left of the display indica-
tes 12-hour display.
1. Press [ Clock ] once. The dots stop flashing, but the seconds
continue to count.
2. Press [ h ], [ m ] and [ Day ] once or repeatedly to set hours,
minutes and weekday.
3. Press [ Clock ] again to exit the programming mode.
Programming the remote control for remote switches
1. Select channel using the ▲ and ▼ buttons.
2. Press and hold the "ON/OFF Learning Code" button on the
remote switch to be programmed until the red indicator lights up.
3. Press until the indicator goes out on the remote switch.
The remote control and the remote switch are now programmed.
4. Test the function by pressing
and
deactivate the remote switch.
Note. The remote switch automatically returns to programming mode
after 15 seconds.
to activate and
