Operating manual
(Translation of the original version)
KSV 910
Stolzenberg GmbH & Co. KG
Reinigungsmaschinen - Maschinenbau
Hamburger Str. 15 - 17
D-49124 Georgsmarienhütte
Telefon +49 (0 54 01) 83 53-0
Telefax +49 (0 54 01) 83 53-11
E-Mail: info@stolzenberg.de
Internet: www.stolzenberg.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSV 910 and is the answer not in the manual?

Questions and answers

Summary of Contents for STOLZENBERG KSV 910

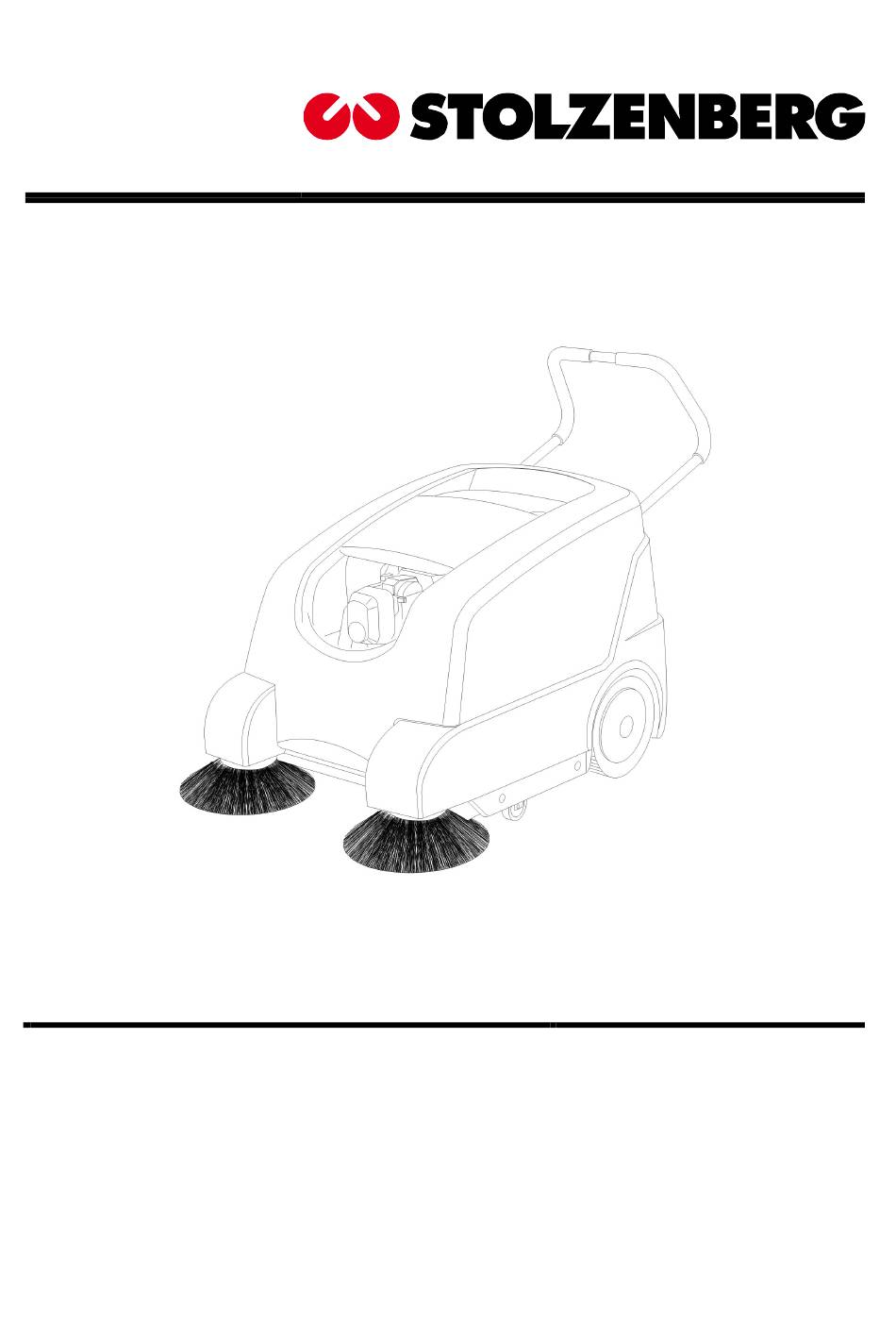

  • Page 1 Operating manual (Translation of the original version) KSV 910 Stolzenberg GmbH & Co. KG Reinigungsmaschinen - Maschinenbau Hamburger Str. 15 - 17 D-49124 Georgsmarienhütte Telefon +49 (0 54 01) 83 53-0 Telefax +49 (0 54 01) 83 53-11 E-Mail: info@stolzenberg.de...
  • Page 2 KSV 910 11/06/2010...
  • Page 3: Table Of Contents

    Removing the Sidebrushes ................13 Changing the sweeping rollers ..................13 5.7.1 Dismantling the sweeping roller................. 13 5.7.2 Assembling the sweeping roller................. 14 Maintenance chart ......................15 5.8.1 Maintenance daily....................15 5.8.2 In addition, after every 50 running hours............15 11/06/2010 KSV 910...
  • Page 4 5.10 Technical Data ........................17 5.11 Product marking........................ 17 5.12 Disposal ..........................17 5.13 Accessories and spare parts .................... 18 5.14 Service ..........................18 5.15 Transport........................... 18 EC Declaration of conformity (Translation of the original version) .......... 19 KSV 910...
  • Page 5: Introduction

    The risk is that of the user alone. Usage conformant with intended purpose also includes compliance with the operating manual and the inspection and maintenance specifica- tions. Drive the sweeper only along expressly marked routes and spaces. 11/06/2010 KSV 910...
  • Page 6: Safety Information

    Caution: loose clothing can be caught and drawn in on rotat- ing parts. Personal safety equipment, particularly hearing protection, must be worn when operating the machines. The machine should only be used outdoors or in ade- quately-ventilated rooms. KSV 910...
  • Page 7: Safety Device

    Warning: parts of the machine become hot during use. There is a risk of burn injuries. Safety device The hood switch prevents the machine from getting switched on when the hood is open and switches off the machine if it is opened during operation 11/06/2010 KSV 910...
  • Page 8: Sweeper Description

    1 operating lever, left side brush 2 key switches 3 operating lever, sweeping rollers 4 operating lever, right side brush 1 Cold-start device (Choke) 2 Recoil starter 3 Oil dipstick KSV 910...
  • Page 9: Initial Start-Up

    Push the driving hoop -1- into the receptacles till the cross hoop is at hip height (ergonomically correct height). Tighten the driving hoop screws -2-. Set the side brush arms to the top position and mount the side brushes. Close the hood again. The sweeper is ready for operation. 11/06/2010 KSV 910...
  • Page 10: Operation

    With the machine switched off, open the hood and fasten it. To close the fan shutter, rotate the lever -1- to the front position. To open the fan shutter, you must get the lever -1- into the rear position. KSV 910...
  • Page 11: After Sweeping

    Turn the key in the anticlockwise direction to switch off the motor • and pull out the key. Caution! Improper handling of the suction sweeper can result in harm to persons and property! Prevent unauthorised usage of the suction sweeper, by: 11/06/2010 KSV 910...
  • Page 12: Emptying The Dustbin

    Lift the dustbin securing device -1- and pull the dustbin on the han- dle -2- from the frame of the machine. Empty the dustbin into a suitable container. Push the dustbin back into the machine. Do not park the sweeper with a full dustbin. KSV 910...
  • Page 13: Maintenance

    Place a clean funnel in the inlet of the tank Pour some fuel in the funnel and wait until the fuel has run through. Repeat the process until the tank is full. Remove the funnel. Close the tank Carefully wipe off any spilt fuel. 11/06/2010 KSV 910...
  • Page 14: Cleaning

    Changing the filter 5.5.1 Dismantling the filter E Remove the dustbin. Press the filter holders –1-inwards in such a way that they point to one another. Take out the filter downwards KSV 910...
  • Page 15: Filter Mounting

    To dismantle the sweeping roller, follow the procedure below: Remove the dustbin. Support the machine securely (for example: second person). Rotate the sweeping rollers till the threaded joints on the sweeping rollers become visible. Loosen and remove these threaded joints. 11/06/2010 KSV 910...
  • Page 16: Assembling The Sweeping Roller

    Then, screw each set of brushes with 3 screws each, till you can no longer see a gap between the split shells KSV 910...
  • Page 17: Maintenance Chart

    Check all bearings for wear. Check all seals as to damage and tightness. Check cable joints for firmness, replace faulty cables. Check the dust filter and replace if necessary. Check dust suction for foreign objects, and clean. 11/06/2010 KSV 910...
  • Page 18: Malfunctions / Error Messages And Troubleshooting

    Filter used up / Filter material Check and replace filter worn Filter not correctly fitted Correct filter position Leaks and result suction of im- Check for suction of impure air pure air in the area of the filter chamber KSV 910...
  • Page 19: Technical Data

    Suctionsweeper Tandem KSV 910 Power: 2,9kW Serialnumber: 0607058 Build in: 2007 Weight: 87 kg Stolzenberg GmbH & Co. KG Hamburger Straße 15-17 D-49124 Georgsmarienhütte 5.12 Disposal Dispose of faulty parts, especially electrical components, batteries and plastic parts according to the locally applicable waste disposal specifica- tions.
  • Page 20: Accessories And Spare Parts

    Accessories and spare parts must conform to the requirements of the manufacturer. This is ensured by using genuine replacement parts. 5.14 Service Stolzenberg GmbH & Co. KG Hamburger Straße 15-17 D-49124 Georgsmarienhütte Telefon: 0049 / (0)5401 83 53-0 Fax: 0049 / (0)5401 83 53-11 www.Stolzenberg.de...
  • Page 21: Ec Declaration Of Conformity (Translation Of The Original Version)

    EC Machine Directive 2006/42/EC, Appendix II, No. 1A Mr. Kai Stolzenberg – Management of the Stolzenberg GmbH & Co. KG, Hamburger Straße 15-17, D-49124 Georgsmarienhütte - is authorized to arrange technical information. We hereby declare that the machine described below corresponds, in its...
