STOLZENBERG Tandem 900 KSE Operating Instructions Manual

Sweeping and suction machine

Advertisement

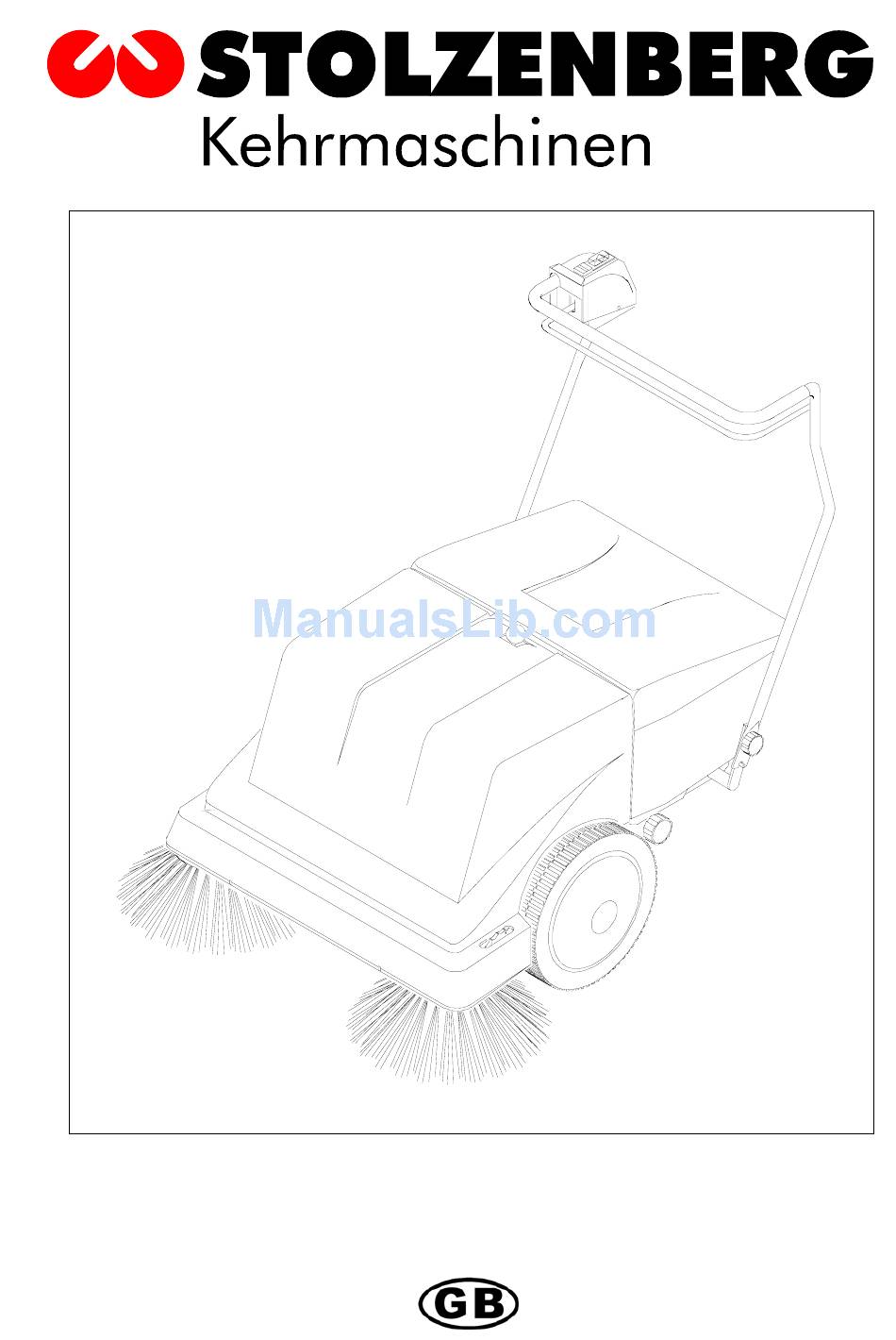

Operating instructions for
Sweeping-/ Suchtionmachine Tandem KSE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tandem 900 KSE and is the answer not in the manual?

Questions and answers

Summary of Contents for STOLZENBERG Tandem 900 KSE

  • Page 1 Operating instructions for Sweeping-/ Suchtionmachine Tandem KSE...
  • Page 2: Table Of Contents

    Operating Instructions for the Sweeping and Suction Machine Tandem 900 KSE ! Please read this before operating the sweeping machine! Contents: Page 1. Safety Information 2. Technical Data 3. Unpacking and Assembling 4. Starting Up/Operating 5. Service Work / Troubleshooting 6.
  • Page 3: Safety Information

    1. Safety Information: Application: Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition. This sweeping and suction machine is intended exclusively for operation on solid, level, and dry surfaces with an inclination not exceeding 2%.
  • Page 4: Technical Data

    Accessories and spare parts: Only use accessories and spare parts which have been approved by the manufac- turer. Original accessories and spare parts guarantee that the unit can be oper- ated safely and without any breakdowns. Battery-operated units: Always comply with the operating instructions of the battery manufacturer. Observe the recommendations of the legislator when handling batteries.
  • Page 5: Starting Up/Operating

    First roll the machine from the box and from the pallet. Afterwards, put the steering handle in the upright position, pull it downwards into the two tappets completely (see Figure) and tighten it with the two thumb screws. Note: before you carry out the following steps, please ensure that the safety switch on the steering handle is put in position "0"...
  • Page 6 Steering drive: The machine starts moving when you carefully pull the steering handle towards you. Check the behaviour of the steering drive especially when it is used for the first time so that the machine remains under control. We recommend that you loosen your grip on the steering handle slightly when going around curves to lower the speed in the curve.
  • Page 7: Service Work / Troubleshooting

    5. Service Work / Troubleshooting Service Schedule for Tandem KSE 900: Daily sweeping brush check the height adjustment and if there are possibly stuck or rolled up objects Vacuum: brush on top clean / check for damage Monthly Battery check level of liquid and refill if necessary Belt check for defects and voltage sweeping roller and side brush...
  • Page 8: The Eu Declaration Of Conformity

    6. EU Declaration of Conformity in accordance with the EU Machinery Directive 89/392/EU, Appendix II A Stolzenberg GmbH & Co. KG Reinigungsgeräte D-49124 Georgsmarienhütte Sweeping suction machine Tandem KSE Serial Number:__________________________________ (see data plate; to be entered by customer) Applicable EU Directives: •...
  • Page 9: Electrical Switching

    . Electrical Switching 20 A 250 W, 16 A 12 V Tandem KSE 900 Wiring Plan legend: R = red S = black R/S = red/black B = blue W = white Page 8...
