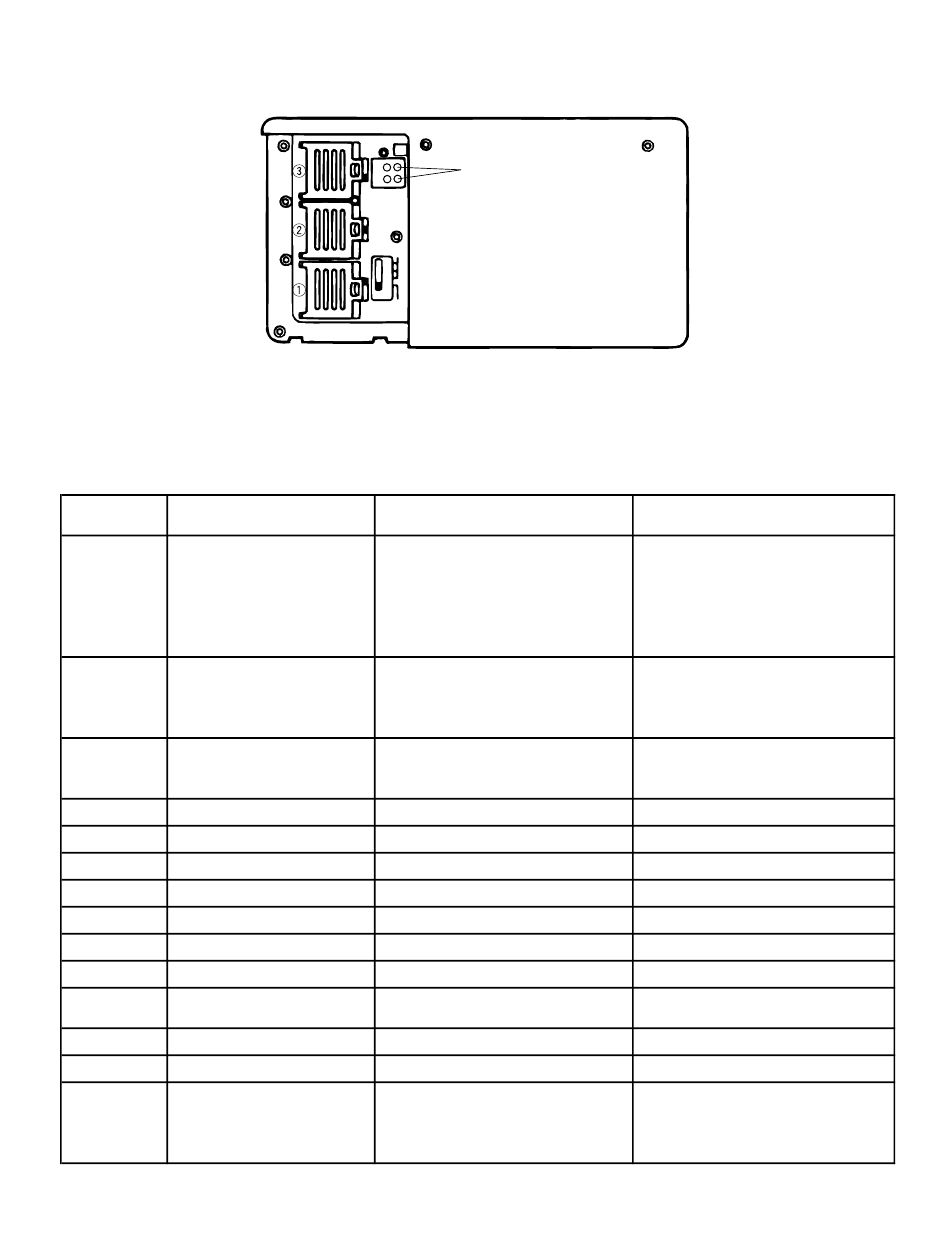

DIAGNOSTIC PROGRAM

To enter the diagnostic program, proceed as follows;
1 : Turn the power switch ON and open the battery cover.
2 : Press Reset Button while shorting the Test pad.
S T E P
O P E R A T I O N
Enter the
Press ON while shorting
diagnostics
the Test pad.
Main menu
OK
Display
1
Check
1
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
Test Pad
Bottom View
DISPLAY
///// SELF TEST PROG /////
PRESS OK KEY
QUIT BY OFF KEY
CASIO MAR 1996
TEST
4 BUZZER
1 DISP
5 I/F
2 MEMORY
6 CONT
3 KEY
7 RESET
DISPLAY
1 DISPLAY
2 FRAME FREQ.
No color, no display
Orange color is displayed
Green color is displayed
Blue color is displayed
Checkers are displayed
Reverse checkers are displayed
Frame is displayed
Dots at the 4 corners are
displayed
Vertical 4 colors are displayed
Horizontal 4 colors are displayed
TEST
4 BUZZER
1 DISP
5 I/F
2 MEMORY
6 CONT
3 KEY
7 RESET
