Introduction

5.1

General

ID2982/07062007

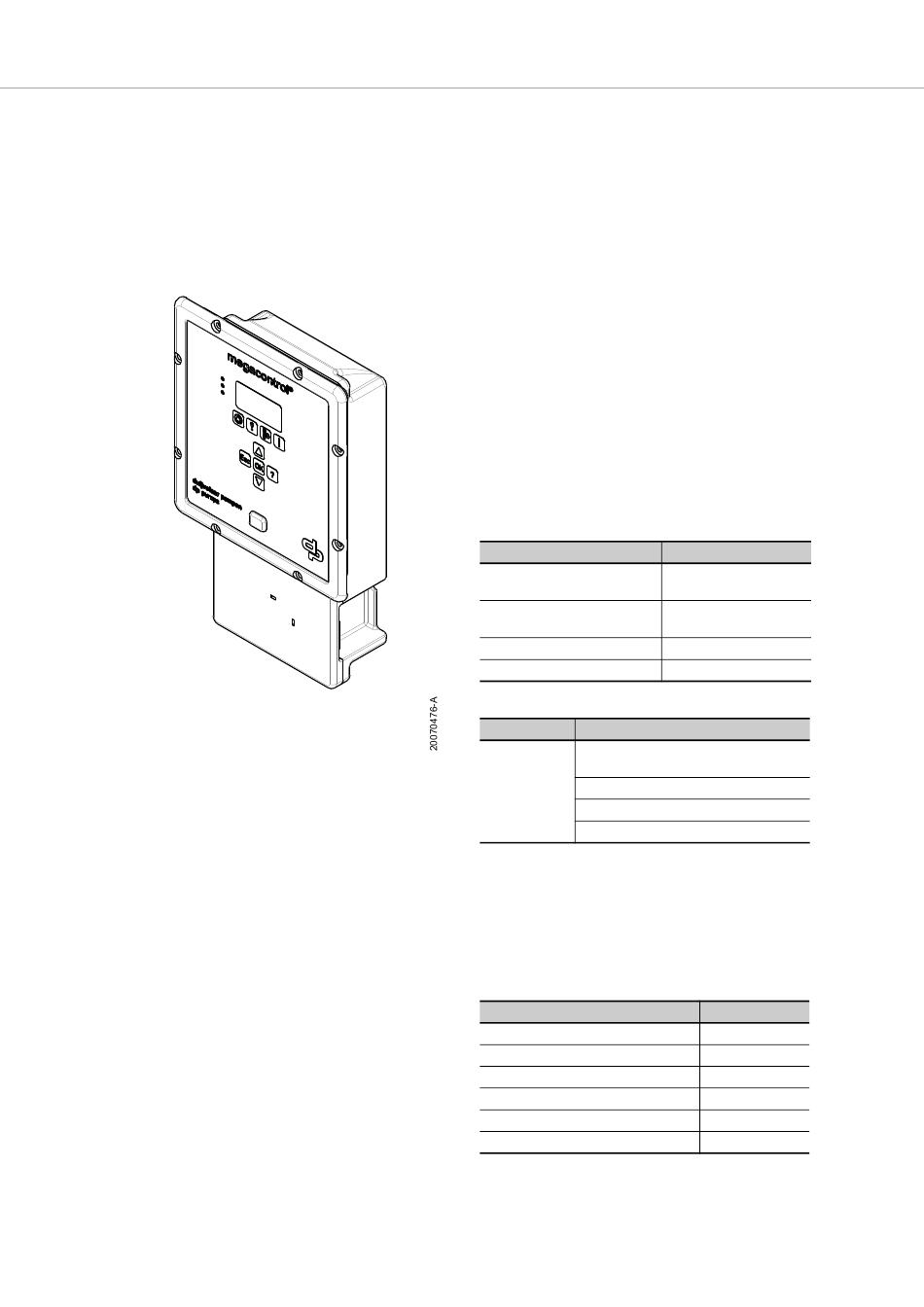

Figure 1: Control units of the type
Megacontrol
Control units of the type Megacontrol are
manufactured by DP-Pumps.
5.2

Intended use

The control unit is suitable for controlling a Hydro-Unit
consisting of 1, 2, 3, 4, 5 or 6 pumps within the
indicated working range (see "Working range").
Any other or further use of the control unit is not in
8
conformity with its intended use. DP-Pumps does not
accept any liability for any damage or injury resulting
from this. The control unit has been produced in
accordance with the current standards and
guidelines. Use the control unit exclusively in a
perfect technical state, in conformity with the intended
use described below.
The Intended use as laid down in ISO 12100:2010 is
the use for which the technical product is intended
according to the specifications of the manufacturer.
The use of the product has been described in the
available documentation / information. Always
observe the instructions given in the installation and
operating instructions. When in doubt the product
must be used as becomes evident from its
construction, version and function.
5.3

Working range

The working range of the control unit can be
summarized as follows:
Table 5: Working range of the Megacontrol
Type
Maximum ambient temperature
[°C]
Relative atmospheric humidity
[%]
Voltage [V]
Frequency [Hz]
Table 6: Specific applications of the Megacontrol
Type Application area
Megacontrol Building possible in the installations
listed below:
•
Hydro-Unit® with 1 - 6 pumps
•
Break-Unit with 1 - 6 pumps
•
Fire-Unit with 1 - 6 pumps
5.3.1 WSD-Sensor (option)
The working range of the WSD-Sensor can be
summarized as follows:
Table 7: Working range of the WSD-Sensor
Type
Maximum ambient temperature [°C]
Relative atmospheric humidity [%]
Voltage [V]
Frequency [Hz]
Medium temperature [°C]
Switching flow [l/min]
Megacontrol
50
20 - 90 (no condensation)
1 x 230 V AC ± 5%
50/60
WSD-Sensor
30
-
-
-
5 - 30
± 14
