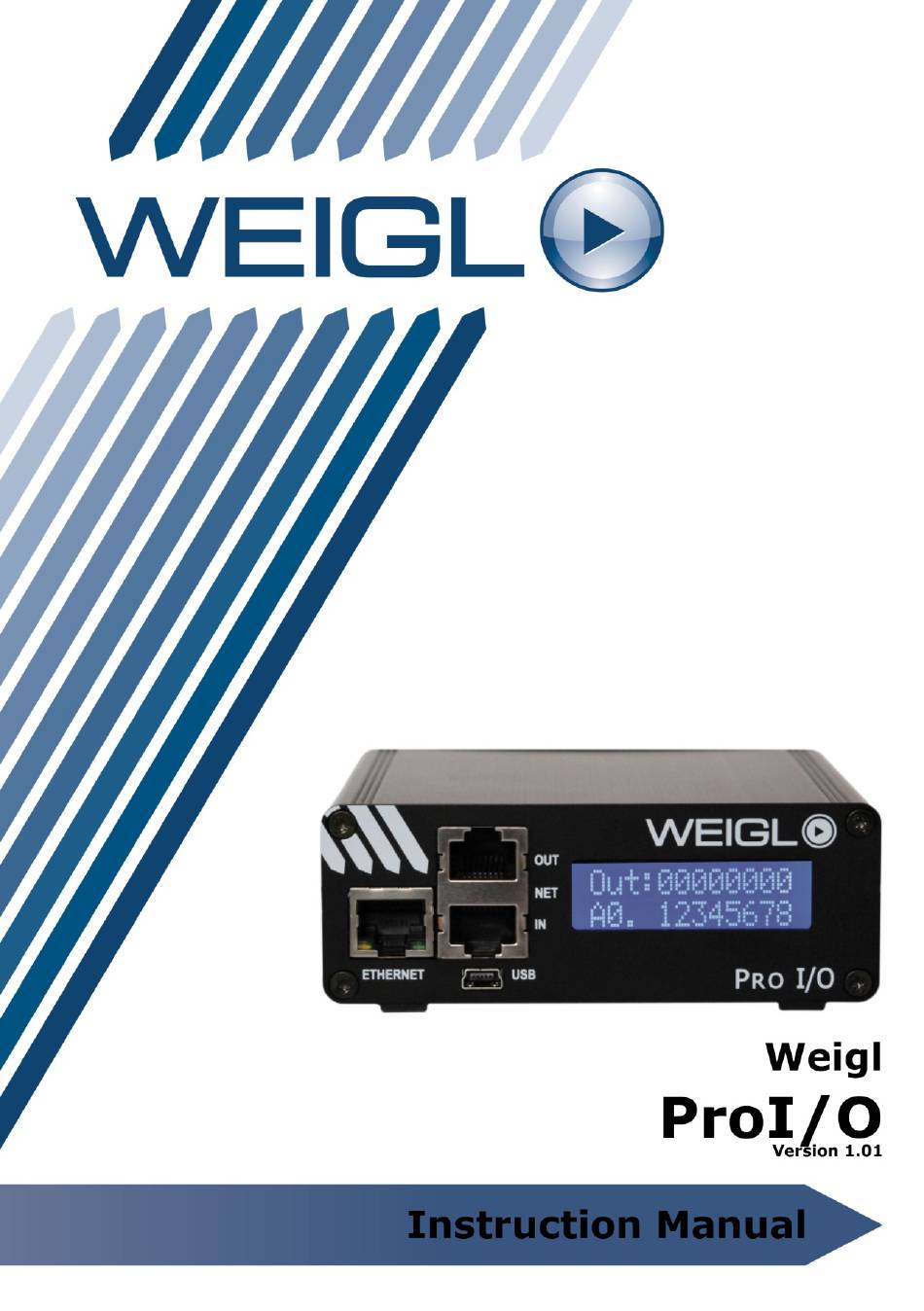

Summary of Contents for WEIGL ProI/O Series
- Page 2 +43 (0) 650 84 333 48 www.Weigl-EM.at Office@Weigl-EM.at Weigl-EM is the hardware manufacturer and European distributor Weigl Works, LLC 440-941-5849 www.WeiglWorks.com Info@WeiglWorks.com Weigl Works, LLC is the exclusive North American distributor of Weigl-EM products © 2011 – 2013 - Weigl – Elektronik & Mediaprojekte...
-
Page 3: Table Of Contents
Contents 1 Important Information and Safety Tips ......... 5 1.1 FCC and CE Compliance ............6 1.2 FCC Instruction to User ............7 1.3 FCC DECLARATION OF CONFORMITY ........9 1.4 CE DECLARATION OF CONFORMITY ........10 2 Warranty ................11 3 FRONT ................ - Page 4 6 Glossary ................25...
-
Page 5: Important Information And Safety Tips
Important Information and Safety Tips 1 Important Information and Safety Tips The Weigl ProI/O is an electronic device that can fail, in part or in full despite careful testing. Therefore, it must not be used in applications where personal safety could be at risk due to the malfunction of the device. -
Page 6: Fcc And Ce Compliance
In addition, correct polarity must be utilized to avoid damage to the ProI/O. Failure to do so will void the warranty and Weigl Works, LLC or Weigl will not be liable for any resulting damages. When connecting solenoids, a freewheeling diode for each solenoid is required. -
Page 7: Fcc Instruction To User
Important Information and Safety Tips The ProI/O is low voltage DC devices and therefore, neither UL nor CE require safety testing. For fireproofing or additional radio frequency interference shielding, the ProCommander can 1.2 FCC Instruction to User be rack mounted in a 19" rack space with optional hardware. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. - Page 8 Important Information and Safety Tips maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with nonapproved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
-
Page 9: Fcc Declaration Of Conformity
Equipment Class: Commercial Light Industrial Model: Weigl ProI/ Year of Manufacture: 2011 I the undersigned, hereby declare that the equipment specified above conforms to the above directive(s) and standard(s). Place: Gramastetten, Date: December 13 , 2011 Full Name: Manfred Weigl... -
Page 10: Ce Declaration Of Conformity
1.4 CE DECLARATION OF CONFORMITY Important Information and Safety Tips Weigl ProI/O which are hardware revision 1.10 or later have been tested to comply with CE requirements. Model: Weigl ProI/O This product herewith confirmed to comply with the requirements set out in the Council Directive on the approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive 2004/108/EC. -
Page 11: Warranty
The customer will pay all shipping costs to and from Weigl Works, LLC or Weigl should parts be repaired or replaced in the ProI/O. The transport of the ProCommander is at the risk of the customer. - Page 12 Warranty By not following the instructions (i.e. connection to the wrong voltage or incorrect input or output circuit) Damage caused by negligent handling, misuse, or improper use of ProI/O.
-
Page 13: Front
FRONT 3 FRONT A Pro I/O device can be addressed through two different ways, either via a daisy chain connection or via a network connection. Therefore different commands are needed to be sent from the ProCommander, to address the Pro I/Os correctly. The ProCommander decreeds an intern chart, which match for every device or Sub-device-address an IP address... -
Page 14: Wemc-Dio32
FRONT 3.2 WEMC-Dio32... -
Page 15: Network
3.3 Network FRONT For a network connection in contrast to the daisy chain connection, each Pro I/O device needs a separate Address. - Page 16 FRONT...
-
Page 17: Back
BACK 4 BACK 4.1 ProI/O Analogue 8 4.2 ProI/O Digital 32... -
Page 18: Proi/O Dmx 512
4.3 ProI/O DMX 512 BACK 4.4 ProI/O Relay 8... -
Page 19: Pro I/O Open-Collector
4.5 Pro I/O Open-Collector BACK 4.6 Pro I/O Remote... -
Page 20: Pro I/O Servo
4.7 Pro I/O Servo BACK... -
Page 21: Usb-Update And Driver Installation
USB-update and driver installation 5 USB-Update and driver installation To run the ProI/O devices through USB you need two different drivers. One driver you need to connect the ProI/O device as RS232 interface with the computer. The other driver you need to run the update via the USB. Here you will find the two ways to install the two drivers. - Page 22 USB-update and driver installation In the display of the ProI/O you should see "UPDATE UNIT! PLEASE WAIT!" If you run the update for the first time, the device firmware upgrade driver (DFU-driver) is not installed at this moment. So you will get a DOS-window like this: If the request for the driver installation is not shown ...
-
Page 23: Usb-Update
USB-update and driver installation After installing the second driver, run the PROIO_UPD.bat again. You are asked for the COM port. Now you can enter the number, probably you get an error message, that the port cannot be opened, but after a few seconds you should get this window. - Page 24 USB-update and driver installation After starting configurator, press "Scan for Devices" to find the network connected device. Choose the device, where you want to run an update and press "FW Update Network". In the upcoming dialog choose the ProIO_Vxxx.HEX upgrade file and the upgrade procedure starts.
- Page 25 Glossary 6 Glossary Sub-Device-ID Device address. Each device has its own device address it is required to issue commands, which are sent to a device to be correctly handled.
