Mounting and operating instructions
CONTOIL
VZF II / VZFA II, DN 15 - 50
Table of Contents
1
Safety............................................................................................................................. 2
1.1
Intended Use ............................................................................................................................................................ 2
1.2
Notes on safety rules and symbols .................................................................................................................. 2
1.3
Safety rules and precautions .............................................................................................................................. 3
1.4
About the operating manual .............................................................................................................................. 3
2
Product description ..................................................................................................... 4
2.1
Flow meter configuration .................................................................................................................................... 4
3
Scope of delivery an accessories ................................................................................ 5
4
Mounting ...................................................................................................................... 6
4.1
Mechanical installation ....................................................................................................................................... 12
4.2
Electrical Installation ............................................................................................................................................ 14
4.3
Engineering notes ................................................................................................................................................. 15
5
Handling and operation ............................................................................................ 16
5.1
Commissioning ...................................................................................................................................................... 17
5.2
Display and operation ......................................................................................................................................... 17
5.3
Parameterizing ....................................................................................................................................................... 18
5.4
Main Menu .............................................................................................................................................................. 18
5.5
Setup menu structure .......................................................................................................................................... 20
5.6
Output assignment settings ............................................................................................................................. 22
5.7
Description of menu items ................................................................................................................................ 24
6
Maintenance and Repair ........................................................................................... 27
6.1
Calibration ............................................................................................................................................................... 27
6.2
Service maintenance ............................................................................................................................................ 27
6.3
Maintenance ........................................................................................................................................................... 29
6.4
Spare parts .............................................................................................................................................................. 30
7
Troubleshooting......................................................................................................... 31
7.1
Error messages VZF II / VZFA II ....................................................................................................................... 32
7.2
Alarm messages VZF II / VZFA II ..................................................................................................................... 33
8
Decommissioning, Dismantling and Disposal ........................................................ 34
8.1
Decommissioning ................................................................................................................................................. 34
8.2
Dismantling ............................................................................................................................................................. 34
8.3
Return of materials ............................................................................................................................................... 35
8.4
Disposal .................................................................................................................................................................... 35
9
Technical data ............................................................................................................ 36
9.1
Hardware characteristics .................................................................................................................................... 36
9.2
Parameterizing the VZF II / VZFA II outputs ............................................................................................... 38
10
Appendix ..................................................................................................................... 43
10.1
Dimensional drawings ......................................................................................................................................... 43
10.2
Default settings VZF II / VZFA II ...................................................................................................................... 44
11
Certificates .................................................................................................................. 47
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aquametro Oil & Marine CONTOIL VZF II
Summary of Contents for Aquametro Oil & Marine CONTOIL VZF II
-
Page 1: Table Of Contents
Mounting and operating instructions CONTOIL ® VZF II / VZFA II, DN 15 – 50 Table of Contents Safety..........................2 Intended Use ................................2 Notes on safety rules and symbols ........................2 Safety rules and precautions ..........................3 About the operating manual ..........................3 Product description ..................... -
Page 2: Safety
1 Safety 1.1 Intended Use The device CONTOIL ® fuel oil meter is designed and solely intended for for the flow measurement of Diesel oil to Heavy Fuel Oil according to ISO 8217-2010. Improper or non-intended use of the device may compromise operational reliability of the device. The manufacturer accepts no liability for any resulting personal injury or material damage. -
Page 3: Safety Rules And Precautions
1.3 Safety rules and precautions The manufacturer accepts no responsibility if the following safety rules and precautions are disregarded: Any modifications of the device implemented without the prior written consent of the manufacturer will result in the immediate termination of product liability and warranty. Installation, operation, maintenance and decommissioning of this device must be carried out by trained, qualified specialists, authorised by the manufacturer, operator or owner of the facility. -
Page 4: Product Description

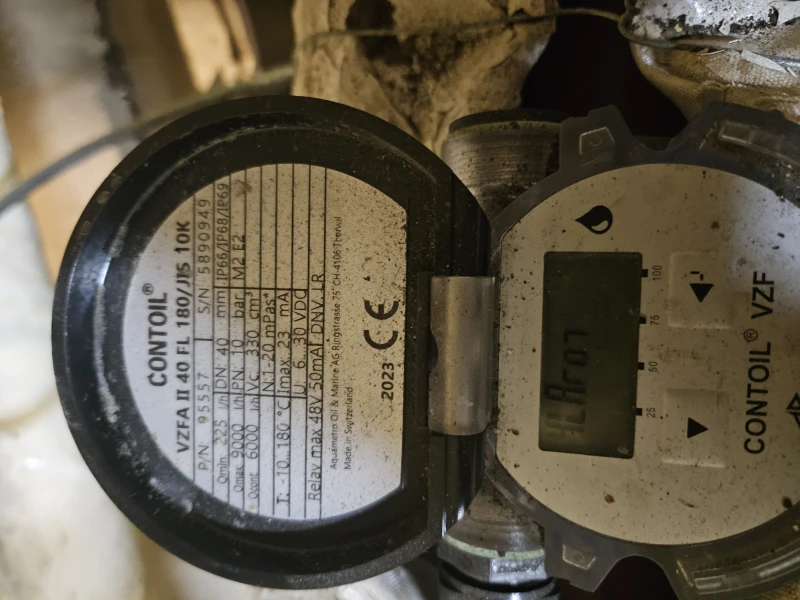

2 Product description Thank you for purchasing this high-quality Product. 2.1 Flow meter configuration The CONTOIL ® flow meters consist of a hydraulic part, a coupling with temperature sensor included and an electronic display unit. The hydraulic part determines the nominal size of the flow meter. The flow meters are calibrated before they leave the factory. -
Page 5: Scope Of Delivery An Accessories
3 Scope of delivery an accessories The scope of delivery is described on the delivery note. Please check all components and parts delivered promptly after receipt of goods. Transport damages shall be reported immediately on receipt of the goods. 1 Flow meter with electronic display unit 1 Mounting and operating instruction... -
Page 6: Mounting
4 Mounting CAUTION The surfaces of the device and the medium may be hot. Risk of burns! Carry out work only on cooled systems. Work may only be performed by authorized specialists in accordance with the applicable regulations. Use appropriate protective equipment. WARNING The pipe and the device may be under pressure. - Page 7 NOTE The layout of piping must ensure that the flow meter is filled with liquid at all times and that no inclusions of air, foam or gas may occur. Aquametro Oil & Marine recommends to install bypass valves. The quantities from all consumers must be registered by the flow meter. Correct layout of flow meter and accessories If the flow meter is used for viscosities higher than 5 mPas, or if it is mounted on the suction side of a pump, the pressure loss and the flow rate that can still be attained should be determined...
- Page 8 Dirt filter, Safety filter Filters should be fitted to prevent any damage to the flow meter from impurities in the oil. Maximum mesh width for filters Nominal size Flow meter type VZOA DN 15 0.250 mm 0.100 mm DN 20 0.400 mm 0.100 mm DN 25...
- Page 10 Special requirements - differential measurements For differential measurements, one flow meter is installed in the supply line pipe and one in the return line pipe. The flow difference between these meters determines the consumption. If ordered with the "differential measurement" option, VZFA II flow meters are calibrated in accordance with the indicated supply and return flow volumes.
- Page 11 Installation of the flow meter on the suction side of a pump If the flow meter is installed on the suction side of a pump, consideration must be given to avoid air-intake or foam. Installation of the flow meter on the pressure side of a pump Special requirements - filling and dosing units For filling and dosing, the valve must be fitted between flow meter and discharge.
-
Page 12: Mechanical Installation
4.1 Mechanical installation WARNING Leakage or rupture due to connections being made using force. Risk of severe injury! Risk of substantial property damage! Never attempt to overcome misalignments (lateral, angular, longitudinal, torsional) using force. Make sure the pipings are flexible enough, if not: use compensators. Consider the effects of thermal contraction and expansion. - Page 13 CAUTION Unauthorized start-up while mounting Risk of injury! Make sure that unauthorized start-up is not possible while mounting. Comply with the appicable working regulations during all work on the system. NOTE When existing systems are altered: Take the flow meter out of operation in order to flush the system clean of debris. Flushing information on page 11.
-
Page 14: Electrical Installation
4.2 Electrical Installation NOTICE Electrical connection to the supply voltage and/or connections to other systems. Risk of malfunction or damage! Review of technical data, chapter 9, on page 36. Electrical connection - Display unit options VZF II, VZFA II Sensor area! (Sensor dome) No cables, wires or other installation material must be present in this area. -
Page 15: Engineering Notes
Cable gland Strain relief: Version A according to EN 62444 Thread: M25x1.5 Clamping range: 10 - 17 mm Key width: 29 mm Mounting of electronic display unit NOTE The display can be rotated +/-270° in 90° steps during installation to improve readability. -
Page 16: Handling And Operation
5 Handling and operation NOTE Modification of operation settings may result in faulty or wrong measuring results. Multiple output functions are available, any of these functions can be used simultaneously. 2 potential-free digital outputs (Out.1 + Out.2), each freely programmable The passive current loop is also used to power the flow meter at the same time. -
Page 17: Commissioning
5.1 Commissioning Startup and commissioning of mechanical part of flow meter, without programming any electronic counter (VZF II and VZFA II). Open valves slowly, fill pipework gradually. Vent the instal- lation well. Startup and commissioning of mechanical part of flow meter (VZO, VZOA). Open valves slowly, fill pipework gradually. -
Page 18: Parameterizing
The display data and parameters are split into two menu groups: Main Menu: displays measured data, accesses other menus, tests display segments and displays error or alarm messages (if present). Setup Menu: displays parameter settings for the display, output signals, additional information about the flow meter and operating status. - Page 19 Use the Step key to scroll through all the menu items, as follows: Visible when mass calculation is turned on: Mass tot Totalizer Mass Subtotalizer Mass Mass Subtot Mass flow (actual) Mass Flow Main Totalizers and displays Totalizer Totalizer Volume Subtotalizer Voume* Subtotal* Flow rate Volume or Norm-Volume...
-
Page 20: Setup Menu Structure
5.5 Setup menu structure Setup Menu: shows settings for parameters, units and output signals. Unit vol L,m3,G Unit ti h,min,s Unit °t °C,°F Unit m kg,t,lb dn xx Mass off 15,20,25,40,50 Vc x.xx per dn Oil Fuel Oil Lube Trip res yes / no °t Limit LFC xx.xx... - Page 21 o1 State o1 Off o2 Limit o2 State o2 Off 5 Qmax hidden with user code view only Standard Volume Compensation visible when Mass Calc is on...
-
Page 22: Output Assignment Settings
5.6 Output assignment settings Use Step key to scroll through output 1 / 2 options (volume, flow / frequency, mass, mass flow, limit, state and off). Technical output specifications can be found on page 38. Output 1 settings o1 Volume Sim off Si value o1 Flow... - Page 23 Act Pulse Err FMA Sim off Si value Act __ Hz Act Pulse Err FMA Sim off Si value Act __ Hz Si value Sim off Activ Act Pulse Err FMA Sim off Si value Act __ Hz Act Pulse Err FMA Sim off Si value...
-
Page 24: Description Of Menu Items
5.7 Description of menu items As they appear in the menu structure Possible parameter units are described on page 44 Main Menu Mass Tot totalizer of mass flow in selected units Mass Subtot subtotalizer of mass flow Mass Flow mass flow Totalizer main totalizer of volume flow Subtot... - Page 25 Used rng Range where the counter been used in hours (h) Total hours of operation (h) hours of operation in preferred range (Qmin – Qcont) hour of operation in upper flow range (Qcont – Qmax) hours of operation above Qmax (h) duration since last recorded flow (h) maximum registered flow rate since start of operation U Code*...
- Page 26 see Technical output specifications on page 38 for more details Outputs oX = o1 or o2 oX Volume select when volume pulses are required (digital pulse) oX Flow select when flow is required (frequency) oX Mass select when mass pulses are required (digital pulse) oX mFlo select when mass flow is required (frequency) oX Limit...
-
Page 27: Maintenance And Repair
6 Maintenance and Repair Calibration Alle unsere Durchflussmengenzähler werden werkseitig kalibriert. All our flow meters are calibrated in the factory. An accuracy check and recalibration is offered at Aquametro Oil & Marine, this is usually dependent on customer, operator or regulation requirements. - Page 28 Before working on the hydraulics: put the system or section out of operation close the stop valves release the pressure put a suitable tray underneath the connection to be worked on be prepared for spillage, have absorbent at hand Cleaning of flow meter: do not use any aggressive solvents rinse hydraulic part of flow meter thoroughly Aquametro Oil &...
-
Page 29: Maintenance
6.3 Maintenance NOTICE Warranty will be void, if the flow meter is being opened during the warranty period by a non Aquametro Oil & Marine certified person. Check connections periodically for tightness and if necessary retighten. For control and cleaning, ®... -
Page 30: Spare Parts
NOTICE If opening is necessary: Risk of malfunction! Observe positions during disassembly Follow assembly instructions Check proper function at start up Recalibration is recommended after service For more information about maintenance, see Spare part list and Maintenance instructions. Opening and closing For instruction on opening and closing the flow meter please refer to separate manual. -
Page 31: Troubleshooting
7 Troubleshooting Fault symptoms Possible causes Procedures No reading / blank display No power supply Check wiring, polarity Electronic counter defective Replace electronic counter Mention SN during order Counter runs backwards Meter mounted in wrong Install meter with arrow direction pointing in flow direction Counter not running Flow rate outside allowed... -
Page 32: Error Messages Vzf Ii / Vzfa Ii
7.1 Error messages VZF II / VZFA II The electronic module performs a self-test about every 5 minutes. If an error is detected which impairs the reliability or accuracy of the measurement, [ERROR] message will appear every 2 seconds on the display. Error messages are messages from the electronic module. -
Page 33: Alarm Messages Vzf Ii / Vzfa Ii
CAUTION , Totalizer value is lost. [E-EEPTRP] EEPROM error in Trip Totalizer. Trip Totalizer value may be incorrect. Action: Go to [DEFAULTS] correct Trip Totalizer memory block (under USER Code). CAUTION, Trip Totalizer is lost. [E-EEPFAT] EEPROM error in File System. Action: electronic module must be replaced. -
Page 34: Decommissioning, Dismantling And Disposal
8 Decommissioning, Dismantling and Disposal CAUTION The surfaces of the device/system and the medium may be hot. Risk of burns! Carry out work only on cooled devices/systems. Work may only be performed by authorized specialists in accordance with the applicable regulations. Use appropriate protective equipment. -
Page 35: Return Of Materials
8.3 Return of materials Never send a device/system back if you are not absolutely certain that all traces of hazardous substances have been removed, e.g. substances which have penetrated crevices or diffused through plastic. Costs incurred for waste disposal and injury (burns, etc.) due to inadequate declaration and/or cleaning will be charged to the delivering company or the operator. -
Page 36: Technical Data
9 Technical data 9.1 Hardware characteristics Hydraulics Meter DN size Nominal diameter DN mm inch Installation length Nominal pressure threaded ends Nominal pressure flanges 25 / 40 25 / 40 25 / 40 25 / 40 25 / 40 Maximum medium temperature °C 130, 180 Maximum flow rate... - Page 37 Outputs 3 (2 pulse / frequency, 1 analog 4 - 20 mA) freely selectable, totally independent of each other Pulse output volume or mass pulse 0 - 200 pulse/sec. (50 % duty cycle) Current 4 - 20 mA volume flow, mass flow or temperature signal Frequency Qmin, volume flow, mass flow or temperatur...
-
Page 38: Parameterizing The Vzf Ii / Vzfa Ii Outputs
9.2 Parameterizing the VZF II / VZFA II outputs In order to set the parameters, the device must be unlocked with the user code Volume pulse output for summing the flow volume (totalizer) Setup menu: function for Output1 or Output2 Pulse width (t): The pulse width limit can be set between 2…500 ms Pulse witdh... - Page 39 Flow / Frequency output Setup menu: function for Output1 or Output2 Frequency range and proportionality of the signal across the desired flow rate / temperature measurement range Q1/T1 - Q2/T2 Signal behavior: If the flow falls below the set lower flow rate value, a proportional decrease to 0 Hz will occur, which is then maintained until the flow rises over the lower flow rate again.
- Page 40 Limiting output Setup menu: function for Output1 or Output2 The function Limit allows you to set an alert whenever Flow rate predefined flow rates are exceeded. active Q Lim Hysteresis % of Q Lim Signal behavior: inactive inactive Limit defines upper (Q Lim ) and lower (Q Lim ) flow rate active...
- Page 41 State output according to signal faults Setup menu: function for Output1 or Output2 Whenever an error or an alarm occurs, you can send it with Work State this selected output. Any fault (Error, Alarm or power loss) can be sent to a active remote control or alarm system.
- Page 42 Analog current loop (4...20mA) Setup menu: Analog current loop The current signal is proportional to the flow rate or temperature range of Q1/T1 to Q2/T2 20.0 Signal behavior: when a relevant flow meter error occurs: Value falls below the set lower flow rate / temperature value Q1/T1: proportional decrease to 3.8mA which is then maintained.
-
Page 43: Appendix
10 Appendix 10.1 Dimensional drawings All flow meters with threaded ends are according to ISO 228-1. DN 15, 20, 25: with threaded ends DN 40: with threaded ends All flow meters with flanges are according to EN 1092-2, ASME B16.5 or JIS B2239. DN 15, 20, 25: with flanged ends DN 40, 50: with flanged ends Electronic counter... -
Page 44: Default Settings Vzf Ii / Vzfa Ii
10.2 Default settings VZF II / VZFA II unit selected in Unit volume Total counter mass unit selected in Unit volume Trip counter mass unit selected in Unit volume and Unit time Actual mass flow unit selected in Unit volume Total counter unit selected in Unit volume Trip counter... - Page 45 Mass output Pulse width 50ms , 2...500ms Unit per pulse 1UPP , 0.001...1000UPP [0.1UPP...DN15] Simulation , on Sim value 0…Qmax (max. 9999.9) Actual output display flashes [Act Pulse] when active Mass Flow output Min Flow Qmin , 0...Qmax Min Frequency 20Hz , 1...200Hz Max Flow...
- Page 46 , enabled Analog Output Temperature disabled Min Value , 0...Tmax Max Value 100°C / 212°F , 0...Tmax (Tmax = 200°C / 392°F) tAU value , 0...9 Error behavior , High, Low Simulation , on Sim value 0…Qmax (max. 9999.9) Actual output displays actual current on output [Act mA] when active disabled , enabled...
-
Page 47: Certificates
11 Certificates All the below mentioned certificats/approvals, can be found on our web site www.aquametro-oil-marine.com. Class approvals Det Norske Veritas Norway – Germany - German Lloyd Lloyds Register United Kingdom Russian River Register RMRS Russian Maritime Register of Shipping China Classification Society Versions with type approval and metrological CE approval ®... - Page 48 Aquametro Oil & Marine AG Aquametro Oil & Marine GmbH info@aquametro-oil-marine.com CH-4106 Therwil, Switzerland DE-18119 Rostock, Germany www.aquametro-oil-marine.com Phone +41 61 725 44 00 Phone +49 381 382 530 00...
