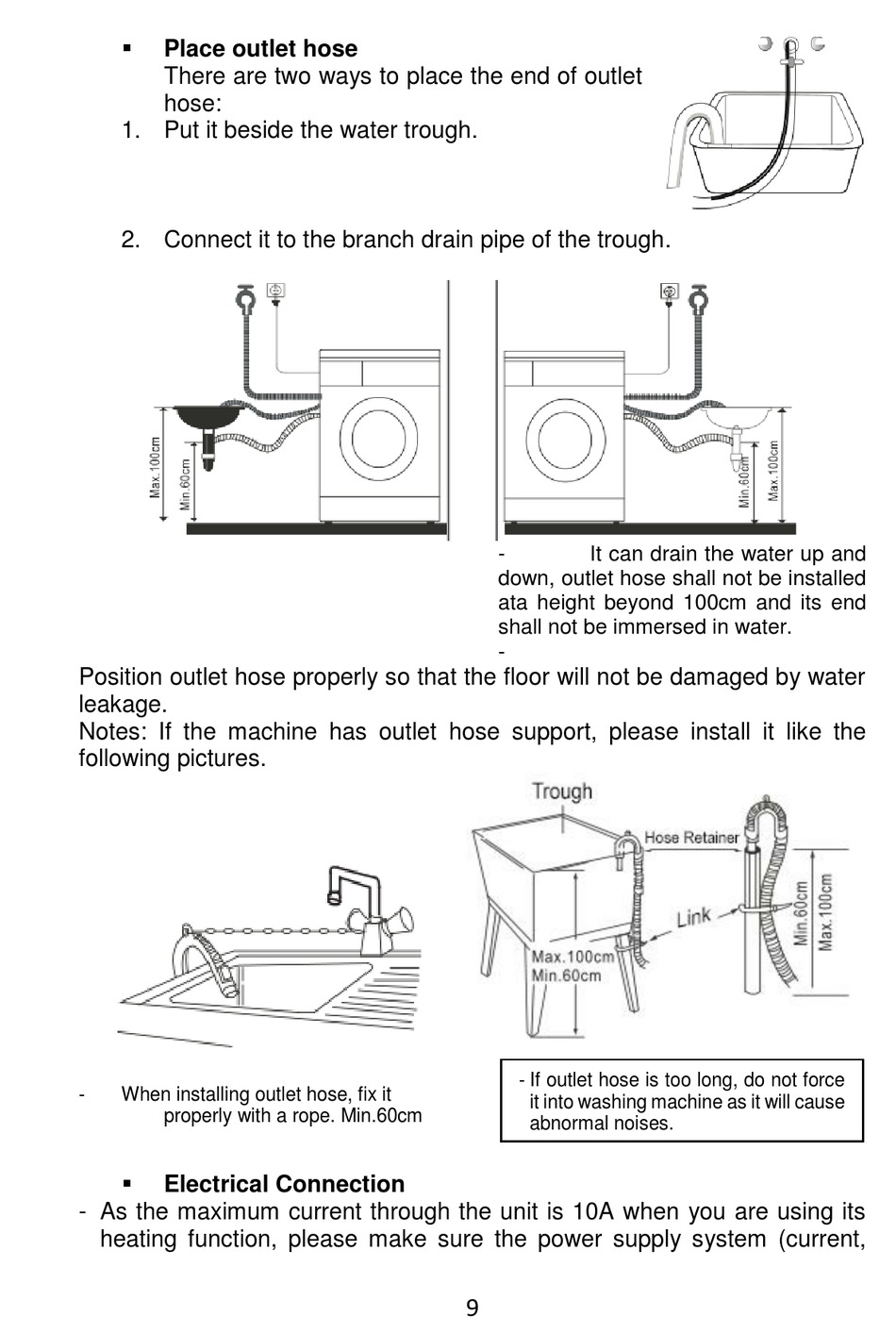

Place outlet hose
There are two ways to place the end of outlet
hose:
1. Put it beside the water trough.
2. Connect it to the branch drain pipe of the trough.
Position outlet hose properly so that the floor will not be damaged by water
leakage.
Notes: If the machine has outlet hose support, please install it like the
following pictures.
- When installing outlet hose, fix it
properly with a rope. Min.60cm

Electrical Connection
- As the maximum current through the unit is 10A when you are using its
heating function, please make sure the power supply system (current,
- It can drain the water up and
down, outlet hose shall not be installed
ata height beyond 100cm and its end
shall not be immersed in water.
-
- If outlet hose is too long, do not force
it into washing machine as it will cause
abnormal noises.
9
