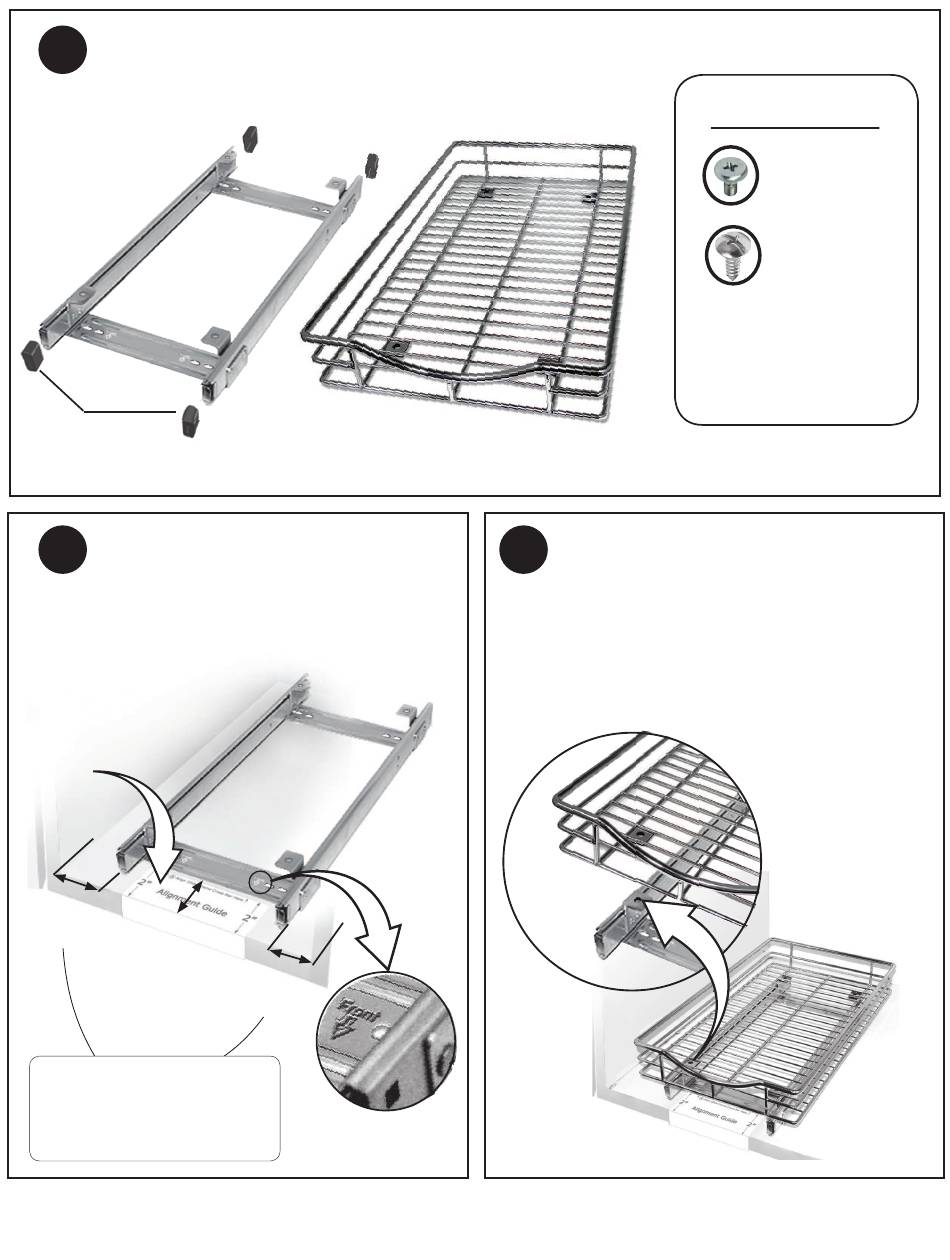

1
Glide Frame
Discard
4 places
2
Aligning Glide Frame
Align glide frame in cabinet as shown
using alignment guide found in parts bag
Alignment
Guide
2"
min.
50.8mm
2"
min.
50.8mm
20" Drawers require
4" min.
101.6mm
clearance on sides
Roll-Out Drawer
R14 If you have questions, please call 800-733-5965.
2"
min.
50.8mm
Make sure arrows
are pointing to the
front of the cabinet
www.lynkinc.com
Drawer
3
Checking Cabinet Clearance
Set drawer onto glide frame with
holes in drawer and glide aligned
Check for adequate cabinet and
door clearance
Adjust glide frame position if needed
Mounting
holes
®
© 2016 Lynk , Inc.
Parts Bag Includes
Mounting
Screws (4)
Wood
Screws (4)
•
Instructions
•
Alignment
Guide
8241 Melrose Drive, Lenexa, KS 66214
