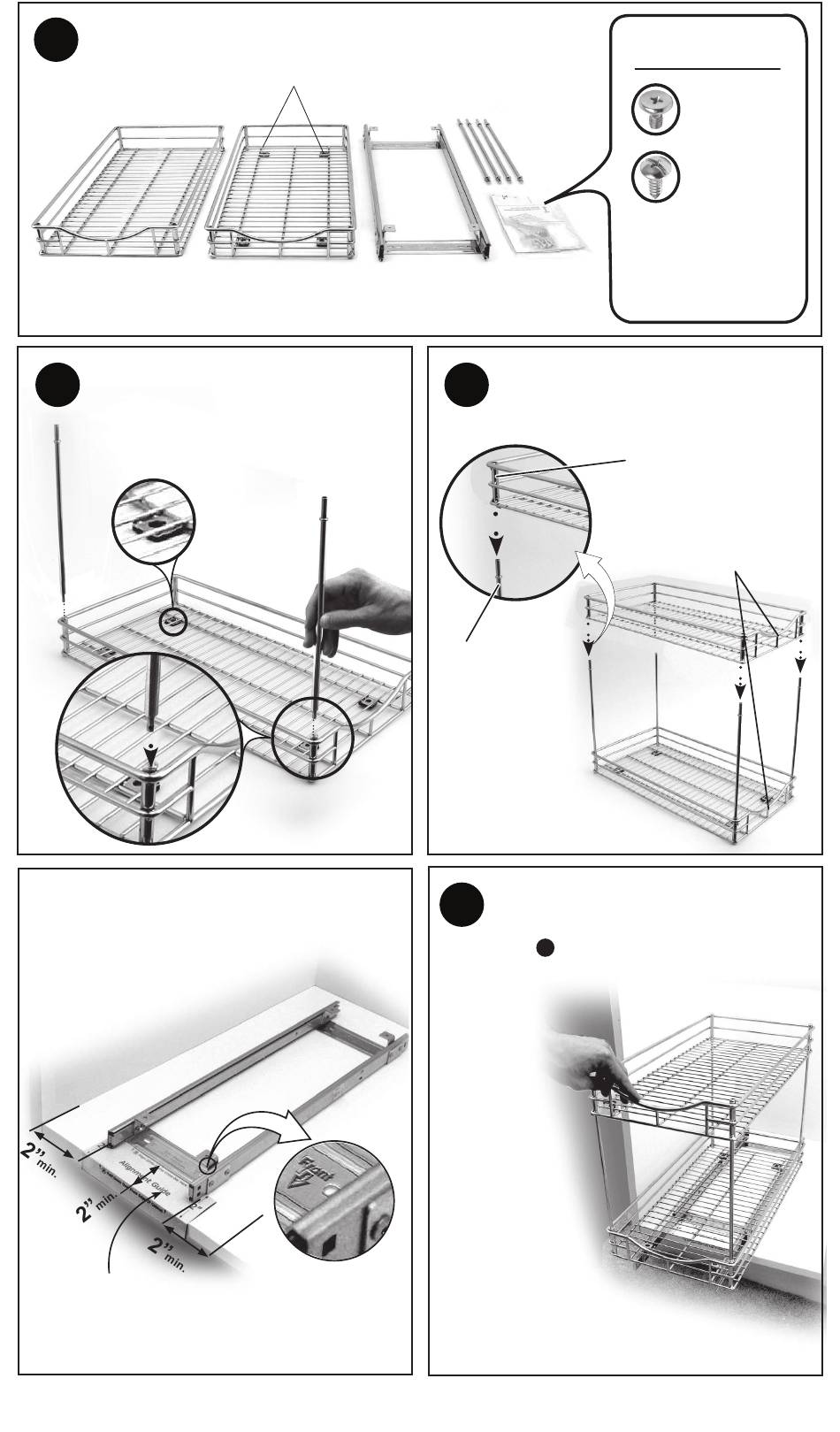

1
Unpack
Upper Drawer
Insert Rods
2
into lower drawer (4 places)
Lower drawer indicated
by mounting plates.
Align Glide Frame
4
in cabinet using Alignment Guide found
in parts bag
Alignment
Guide
Roll-Out Double Drawer
REV 9
Lower Drawer Indicated by
Mounting Plates
Lower Drawer
Make sure
arrows are
pointing to
the front of
the cabinet.
If you have questions, please call 800-733-5965.
www.lynkinc.com
Rods
Glide
Parts Bag
Slide Upper Drawer...
3
onto tops of rods until upper
drawer is fully in place
Rod
Check For Clearance
5
Temporarily place drawer from
step
3
onto glide frame with holes
in drawer and glide aligned.
Check for adequate clearance
around cabinet and doors
(Adjust glide frame position as needed.)
© 2014Lynk , Inc.
®
Parts Bag
Mounting
Screws (4)
Wood
Screws (6)
•
Instructions
•
Alignment
Guide
Corner
Tube
Note: Face drawer fronts
in same direction.
8241 Melrose Drive, Lenexa, KS 66214
