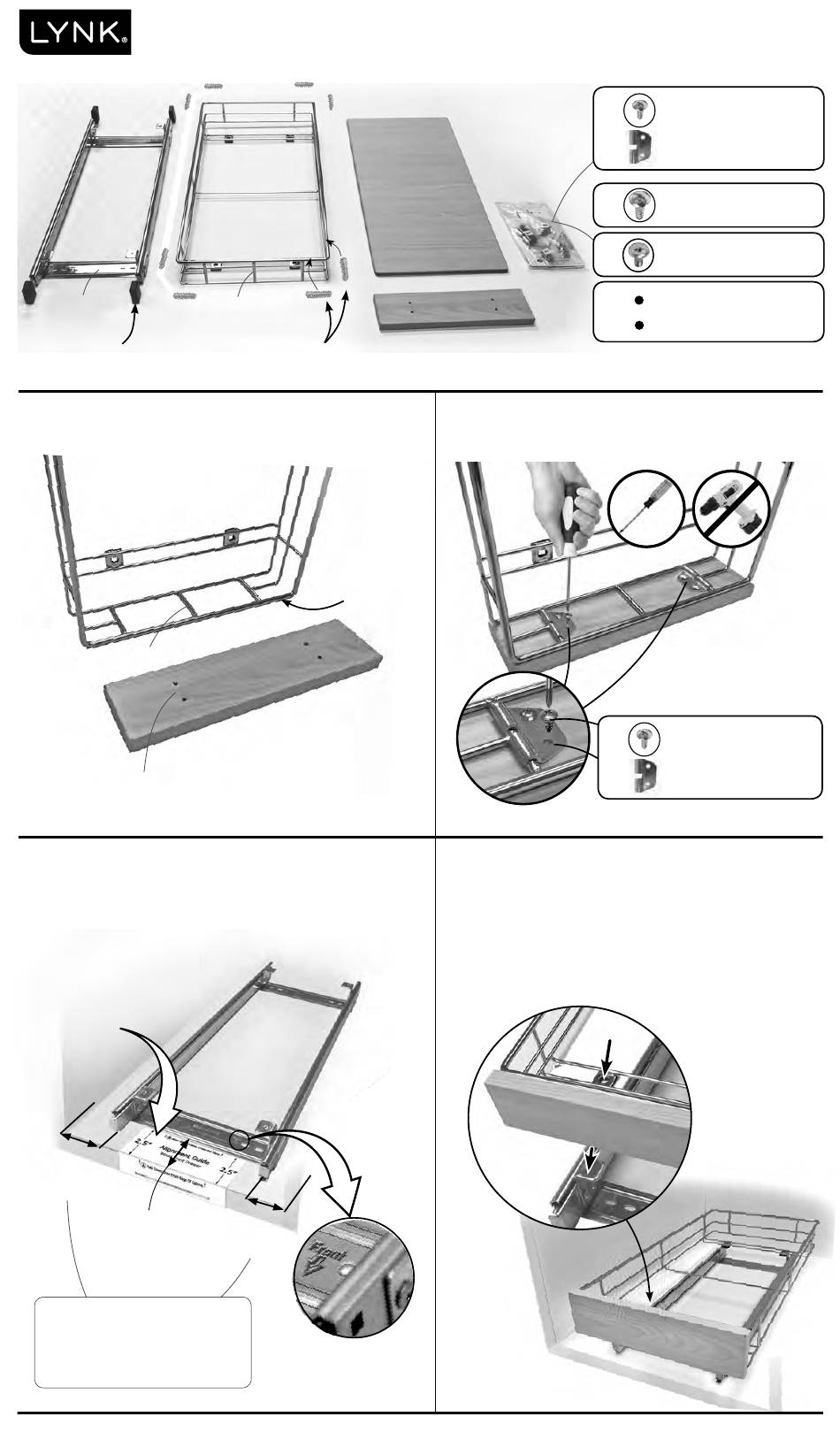

Lynk 421121 Installation Instructions

Roll Out Wood Drawers
1
Unpack
Glide
Frame
Front
Discard
4 places
2
Align Wood At Front of Drawer
Front
Holes (4)
4
Align Glide Frame
As shown using alignment guide
found in parts bag
Alignment
Guide
2"
min.
50.8mm
2.5"
min.
63.5mm
20" Drawers require
more side clearance
4" min.
101.6mm
#421121DS – #421421DS – #421721DS – #422021DS Roll Out Wood
Drawer
Front
Discard
8 places
No
packing
materials
2"
min.
50.8mm
Make sure arrows
are pointing to the
front of the cabinet
Parts
Bag
Wood
Floor
Wood Front
3
Attach Wood Front
Using #1 small wood screws and brackets
5
Check Cabinet Clearance
Set drawer onto glide frame with holes
in drawer and glide aligned
Check for adequate cabinet and
door clearance
Adjust glide frame position if needed
4 Mounting
holes
1
© 2019 Lynk, Inc. 8241 Melrose Dr. Lenexa, KS 66214
R1
1
Small Wood Screw (4)
#
Bracket (2)
2
Large Wood Screw (4)
#
3
Mounting Screw (4)
#
Instructions
Alignment Guide
Do not over tighten
1
Small Wood Screw (4)
#
Bracket (2)
