Remove The Thermal Sensor Fpc - Lenovo ThinkBook Plus Hardware Maintenance Manual

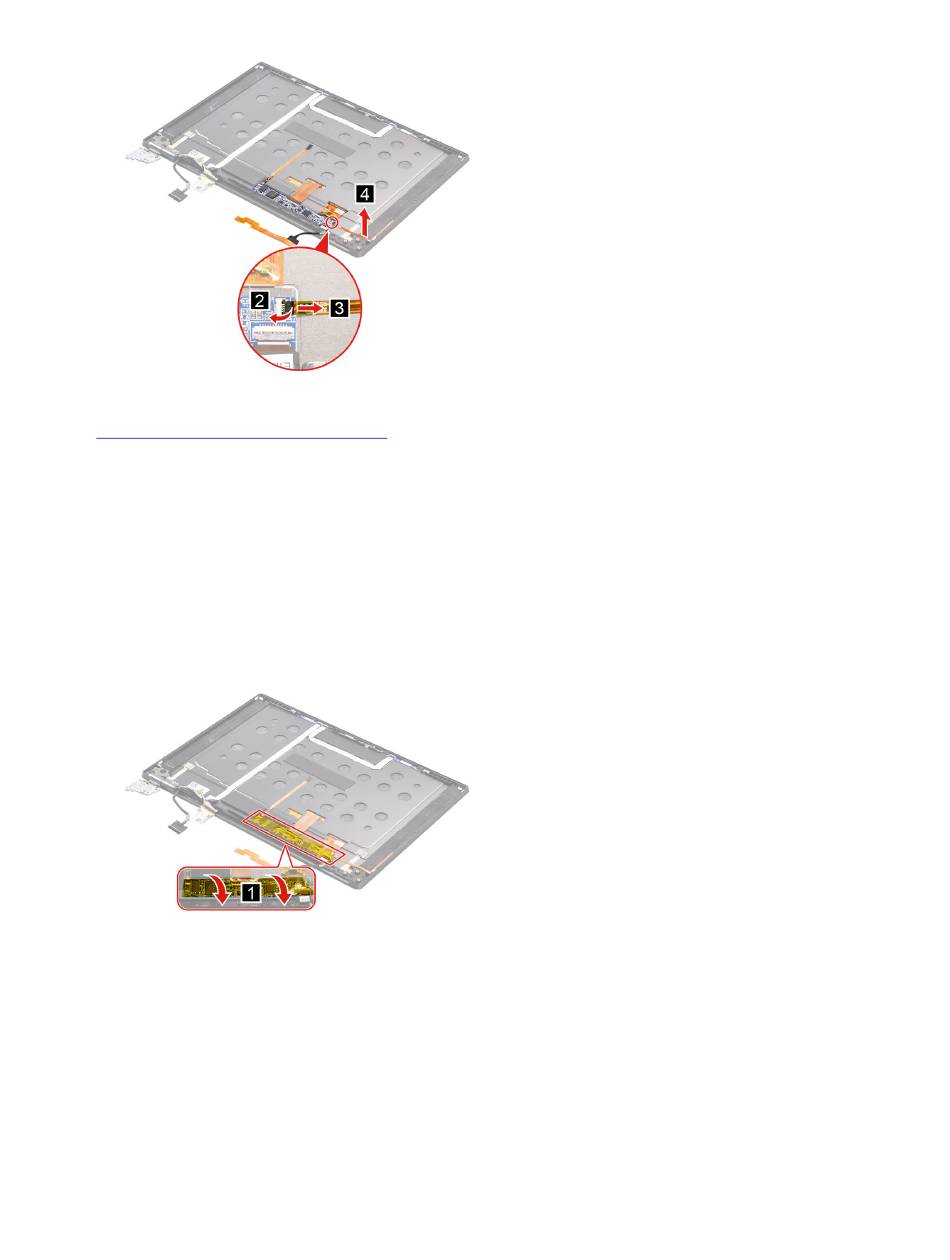

Figure 35. Remove the LED FPC
Go to
https://support.lenovo.com/partslookup
replacement part:
LED FPC

Remove the thermal sensor FPC

Make sure the following FRUs (CRUs) have been removed.
"Remove the LCD panel" on page 43
Step 1. Remove five screws and then remove the right hinge.
Step 2. Peel off the mylar.
Figure 36. Peel off the mylar
Step 3. Detach the thermal sensor FPC connector and then remove the thermal sensor FPC.
46
Hardware Maintenance Manual
to look up the Lenovo part numbers of the following
