Applications:
Years
Make
2016-Current*
Chevrolet
Equipment Required:
15 mm
Safety
Ratchet
Sockets
Glasses
Torque
Utility
Marker
Wrench
Knife
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
Installation Instructions
PART NUMBERS: 24943, 77330, CQT24943
Installation Time:
Models
The time listed above is the average time
for professional installers. If you do not
Cruze
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
7 mm
Star
6'' Socket
Driver
Extension
T15
Max Gross Trailer Weight
2000 lb. (908 kg)
N/A
80 min
Max Tongue Weight
200 lb. (90.8 kg)
N/A
Representative Vehicle Photo
Front of
Vehicle

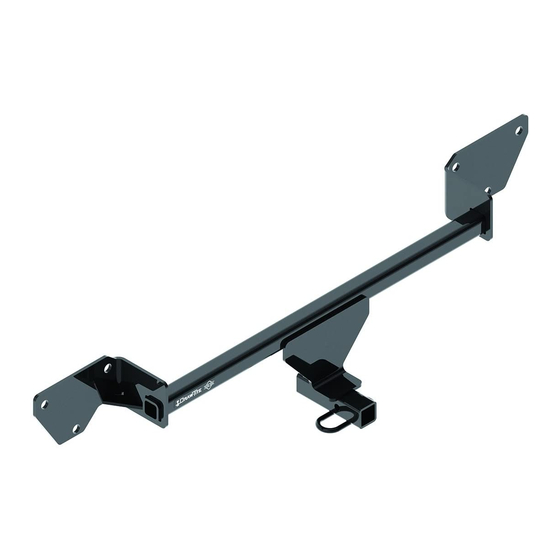

Trailer Hitch
Illustration
Advertisement
Table of Contents
Related Manuals for Draw tite 24943
Summary of Contents for Draw tite 24943

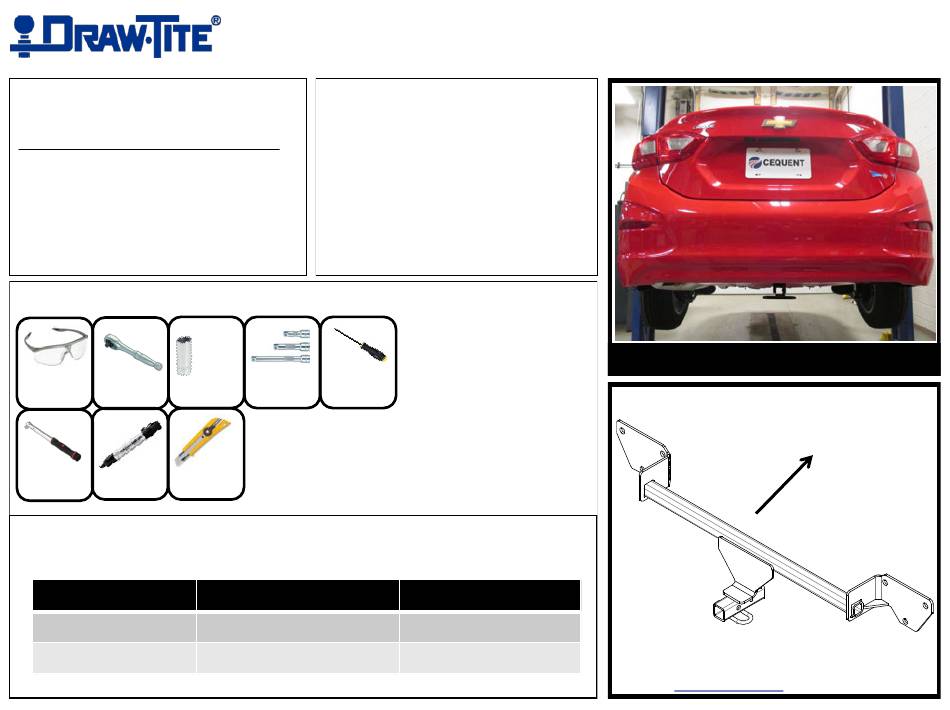

- Page 1 Installation Instructions PART NUMBERS: 24943, 77330, CQT24943 Applications: Installation Time: 80 min Years Make Models The time listed above is the average time for professional installers. If you do not 2016-Current* Chevrolet Cruze feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
- Page 2 Always wear SAFETY GLASSES Installation Instructions when installing hitch PART NUMBERS: 24943, 77330, CQT24943 (Sold separately) Drawbar Kit: 3593 Drawbar must be used in the RISE position only. Bumper 3.5’’ end panel Existing bumper 4.5’’ flange nuts Figure 3 Reuse all...
- Page 3 1. Fascia removal – use 7 mm socket to remove (4) bolts from bottom fascia. Use T15 driver and 7 mm socket to remove (4) bolts from wheel well each side, see Figure 2. Open the trunk and gently remove the fascia. Carefully set the bumper fascia aside. 3.
- Page 4 4. Tighten all fasteners with torque wrench to 53 Lb.-Ft. (72 N*M). Proper torque is needed to keep the hitch secure to the vehicle when towing. 5. Bottom fascia trimming – locate the center of bottom panel and trim 4.5’’ tall by 3.5’’...
