Applications:
Years
Make
2012-Current*
Toyota
Equipment Required:
12 mm
13 mm
Safety
Ratchet
Glasses
Sockets
Flat
Head Screw
6'' Socket
Torque
Extension
Wrench
Driver
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
Installation Time: 20 min
Models
The time listed above is the average time
for professional installers. If you do not
Prius C
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
Max Gross Trailer Weight
2000 lb. (908 kg)
N/A
Installation Instructions
PART NUMBERS: 24971, 77971, CQT24971
Max Tongue Weight
200 lb. (90.8kg)
N/A
Representative Vehicle Photo
Hitch Illustration
Advertisement
Related Manuals for Draw tite 77971
Summary of Contents for Draw tite 77971
-
Page 1: Installation Instructions

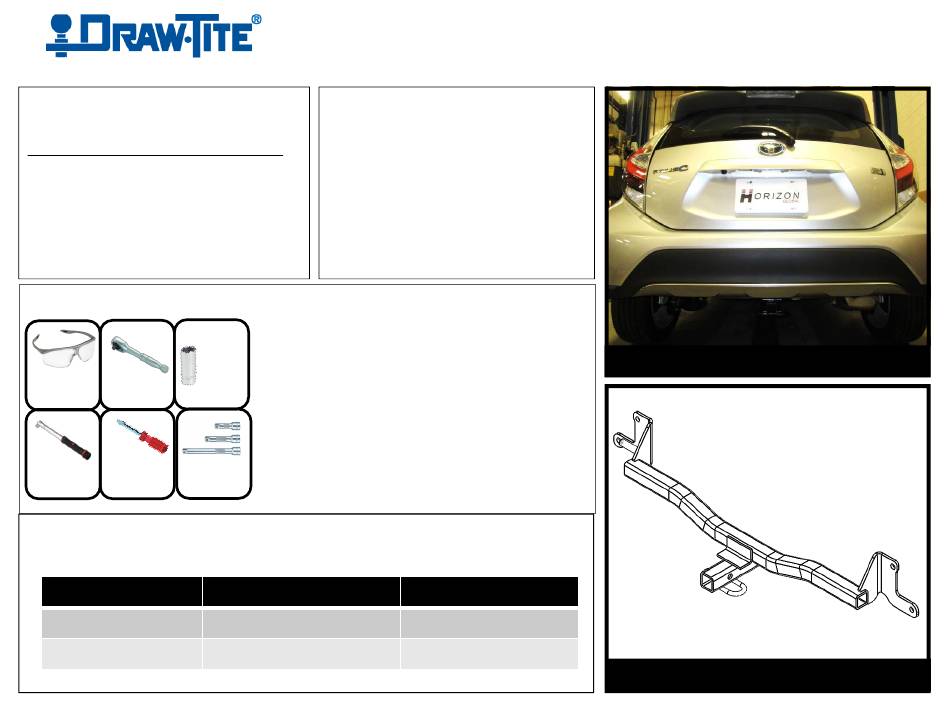

Installation Instructions PART NUMBERS: 24971, 77971, CQT24971 Applications: Installation Time: 20 min Years Make Models The time listed above is the average time for professional installers. If you do not 2012-Current* Toyota Prius C feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer. - Page 2 Installation Instructions Fastener Kit: 24971F Always wear SAFETY GLASSES when installing hitch PART NUMBERS: 24971, 77971, CQT24971 Qty. (4) Hex Bolt M8x1.25x30mm Outer Bolt CL10.9 Do not Remove BUMPER Qty. (4) Conical Washer 3/8” Part# 01292006 BULK HEAD Fasteners typical...
- Page 3 Remove Appearance Panel – Note: Panels may vary based on vehicle year. Using a flat head screwdriver remove (2) plastic appearance panels from the driver side. (4) push pins per panel (8 push pins total). Then remove the (5) push pins from the center appearance panel. Finally remove the remaining (2) push pins attaching the fascia tabs. NOTE: Return the center appearance panel and 5 push pins to the vehicle owner.
- Page 4 Torque Fasteners – Using a 13mm socket Torque all 8mm fasteners to 27 ft-lb (37 N-M) Proper torque is needed to keep the hitch secure to the vehicle when towing. Reinstall Appearance Panels – Reinstall the (2) driver side appearance panels removed in step one. Then reattach the (2) fascia tabs from step one. On our website you can discover more about trailer hitches and towing.
