Applications:
Years
Make
2017-Current* Nissan
Equipment Required:
Safety
Glasses
Ratchet
Sockets
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing
Installation Time: 30 min.
Models
The time listed above is the average time
for professional installers. If you do not
Titan
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
17mm
19mm
Torque
6" Socket
Wrench
Extension
Max Gross Trailer Weight
8000 Lb. (3632 Kg)
12,000 Lb. (5448 Kg)

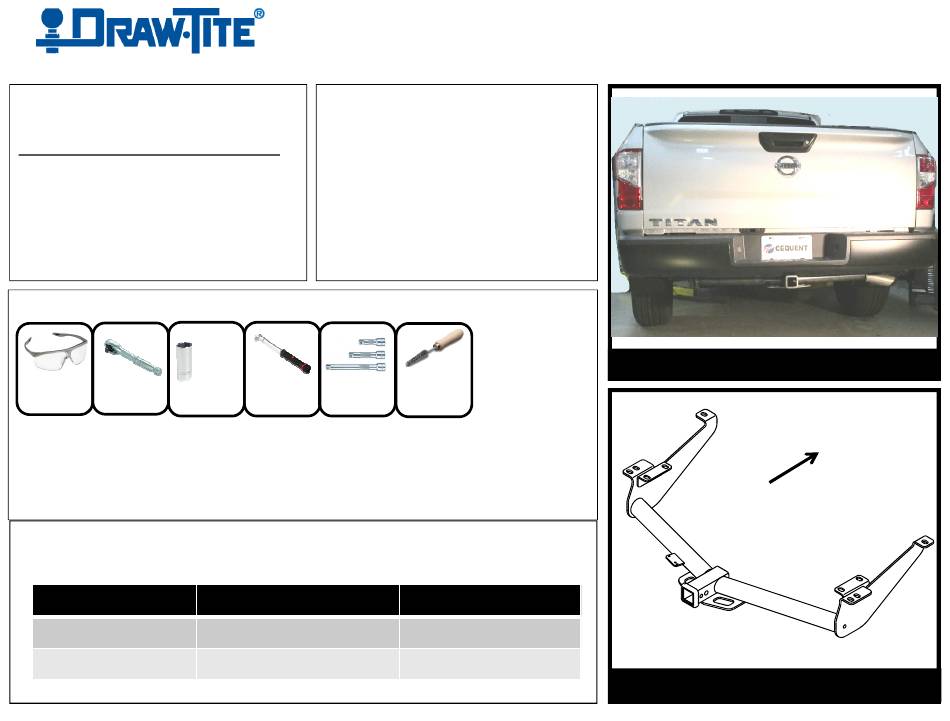

Installation Instructions
PART NUMBERS: 76154, 84154, CQT76154
Wire
brush
Max Tongue Weight
800 Lb. (363 Kg)
1200 Lb. (545 Kg)
Representative Vehicle Photo
Front of
Vehicle
Hitch Illustration
Advertisement
Table of Contents
Related Manuals for Draw tite 76154
Summary of Contents for Draw tite 76154
- Page 1 Installation Instructions PART NUMBERS: 76154, 84154, CQT76154 Applications: Installation Time: 30 min. Years Make Models The time listed above is the average time for professional installers. If you do not 2017-Current* Nissan Titan feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
- Page 2 Fastener Kit: 76154F Installation Instructions Bolt M12 X 1.25 X 40 CL10.9 ① Qty. (10) PART NUMBERS: 76154, 84154, CQT76154 Part no. 04263040 Conical washer ½ ② Qty. (6) Part no. 01292008 Flat Washer ½ (Hardened) ③ Qty. (4) Part no. 3306QAD...
- Page 3 1. Remove tow hook brackets – Using a 17mm socket, remove factory tow hook brackets (if present) by removing (10) M12 flange head bolts. Return bolts & brackets to vehicle owner. See Figure 2. NOTE: For vehicles without factory tow hook brackets, it may be necessary to clean the existing weldnuts in frame using a wire brush or compressed air.
- Page 4 3. Tighten all M12 CL10.9 fasteners with torque wrench to 76 Lb.-Ft. (103 N*m) Proper torque is needed to keep the hitch secure to the vehicle when towing. Check out a selection of trailer hitches and towing offered in our online store.
