Applications:
Years
Make
2016 -Current* Chevy
Equipment Required:
13 mm
Safety
Ratchet
Sockets
Glasses
Phillips
Plastic
Tape
Screwdriver
Trim Tools
Measure
DO NOT EXCEED LOWER OF TOWING VEHICLE
MANUFACTURER'S RATING OR:
Hitch Type
Weight Carrying
Weight Distributing

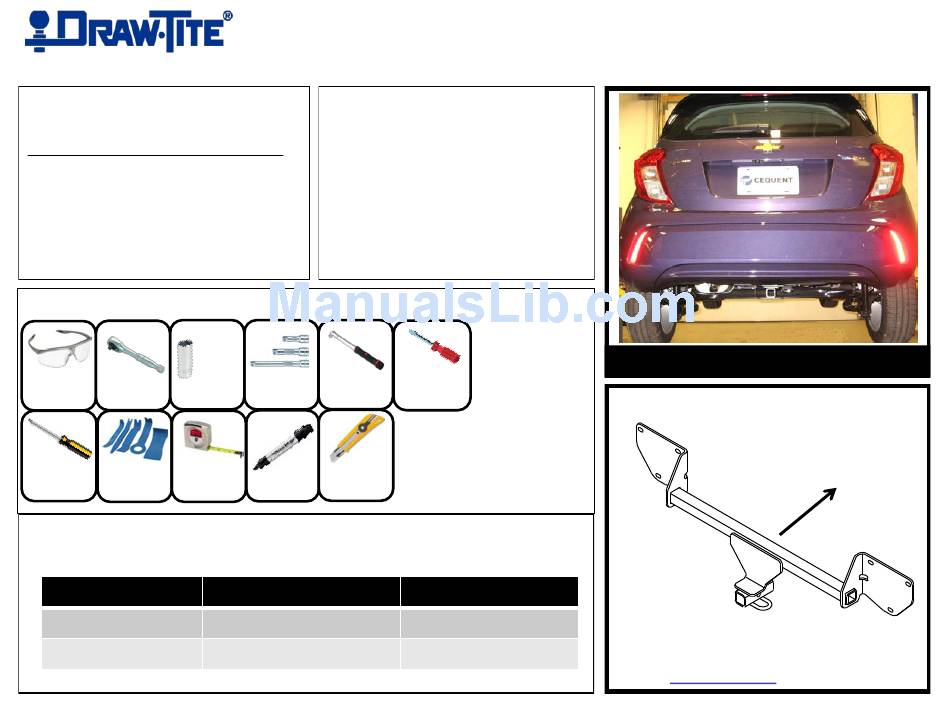

Installation Instructions
PART NUMBERS: 24941, 77328, CQT24941
Installation Time:
Models
The time listed above is the average time
for professional installers. If you do not
Spark
feel comfortable performing this
installation on your own or are in need of
assistance, please contact a professional
installer.
7 mm
Torque
6'' Socket
Wrench
Extension
Utility
Marker
Knife
Max Gross Trailer Weight
2000 lb. (908 kg)
X
45 min
Flat
Head Screw
Driver
Max Tongue Weight
200 lb. (90.8 kg)
X
Representative Vehicle Photo
Front of
Vehicle
Trailer Hitch
Illustration
Advertisement
Table of Contents
Related Manuals for Draw tite 24941, 77328, CQT24941
Summary of Contents for Draw tite 24941, 77328, CQT24941
-
Page 1: Installation Instructions
Installation Instructions PART NUMBERS: 24941, 77328, CQT24941 Applications: Installation Time: 45 min Years Make Models The time listed above is the average time for professional installers. If you do not 2016 -Current* Chevy Spark feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer. - Page 2 Installation Instructions (Sold separately) Drawbar Kit: 3593 PART NUMBERS: 24941, 77328, CQT24941 Drawbar must be used in the RISE position only Bumper end panel Figure 2 Bumper beam Figure 3 Rear Existing M8-1.25 flange nuts 3-1/4” 2-1/4” (6) Places Figure 4...
- Page 3 1a. Remove fascia 1b. Remove fascia using a flat head screw driver, remove (2) plastic retainers at the using a 7 mm socket, remove (1) screw inside of rear wheel well, and (5) screws holding splash guard to fascia, both sides. bottom center of Fascia.
- Page 4 1e. Remove fascia 2. Remove bumper beam – using a 13mm socket with extension, remove (6) flange nuts attaching bumper beam to end panel. using a plastic trim panel tool, gently remove the plastic fascia starting at the wheel wells first. 3.
- Page 5 5. Tighten all fasteners with torque wrench to 6. Trim fascia – measure, mark, and trim fascia as shown 20 Lb.-Ft. (27 N*M) Proper torque is needed to keep the hitch secure to the vehicle when towing. 3-1/4” 2-1/4” Figure 4 CENTERLINE OF BUMPER Bottom View of Bumper Fascia 7.
