For technical assistance or troubleshooting please call
1-855-994-383 or visit www.sibrandssupport.com
This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 77 lbs. See apparatus
instructions. Using with an apparatus heavier than the maximum weight indicated may result in instability and cause possible
injury.
READ THIS FIRST Read this entire manual! Do not attempt to install this product if you do not understand the instructions.
Contact a qualified mount installer if you have any doubts about a safe and secure mount installation, or if you are not sure what
specific wall materials you are attaching this mount to. Check all the parts carefully to make sure there are no missing or
damaged parts. Improper installation may result in damage to your TV, property, and personal injury.

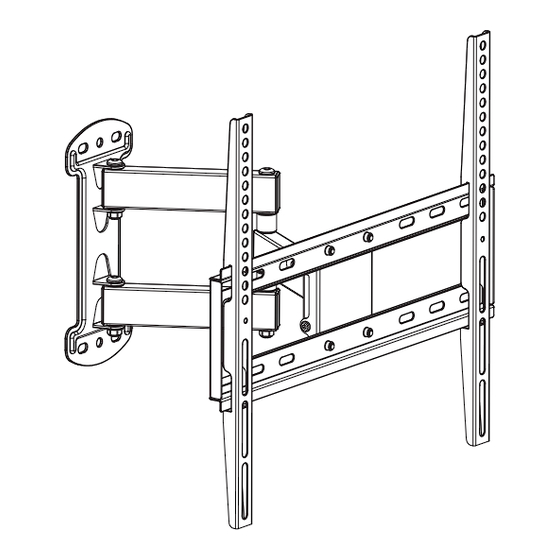

Tilting & Swiveling
Flat Panel Wall Mount
Installation Guide
Model: EXSM2455
• Supports most 24" - 55" Flat Panel TVs
• Maximum weight capacity: 66 lbs.
• Supports VESA Sizes up to 400X400
• Easy installation
Tilt range: +5 to -15 degrees
•
•
Swivel range: 180 degrees
Extension range: 3.2" to 14.6"
•
• Rotation range: +5 to -5 degrees
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Etec EXSM2455
Summary of Contents for Etec EXSM2455
- Page 1 Tilting & Swiveling Flat Panel Wall Mount Installation Guide Model: EXSM2455 • Easy installation Tilt range: +5 to -15 degrees • • Swivel range: 180 degrees Extension range: 3.2” to 14.6” • • Rotation range: +5 to -5 degrees • Supports most 24” - 55” Flat Panel TVs •...
- Page 2 Schoenfeld International Inc. and ETEC are not responsible for personal injury or product damage due to mishandling, incorrect mounting, incorrect assembly, or incorrect use of this product.
-
Page 3: Wall Plate
Wall Plate Brackets Concrete Anchor M5/M6 spacers M4x12mm bolts M5x12mm bolts M8 spacers 10mm spacers M6x12mm bolts M8x25mm bolts 2.5mm spacers M4x30mm bolts M4/M5 washers M5x30mm bolts M6 washers M6x35mm bolts M8 washers M8x35mm bolts Allen Wrench M8x50mm bolts Bubble Level The actual appearance and quantity of parts may be different than shown in the illustration. - Page 4 Center the Brackets (2) vertically on the rear of the TV. Attach the Brackets (2) to the rear of the TV using four of the bolts (D-L) with the proper size washers (Q-S) as shown in Fig. 1a. Do not over tighten. If the back of the TV is not flat, or if the bolts are too long, it may be necessary to use Spacers (M-P) as shown in the Fig.
- Page 6 in the exact center of the stud. Use a wrench, the two long bolts (A), and Washers (C), to attach the wall mount to the wall. Do not use wall anchors in wood stud walls. 5. Use the magnet level on the front of the mounting plate to level the wall mount, repositioning as necessary, then securely tighten the bolts.
-
Page 7: Concrete Wall
2.5” Use a wrench the two long bolts (A), and Washers (C), to attach the wall mount to the wall. 5. Use the magnet level on the front of the mounting plate to level the wall mount, repositioning as necessary, then securely tighten the bolts. 2.5”... - Page 8 Step 4. Hang the Television Display A large television requires two people to lift. Schoenfeld International Inc. and ETEC are not responsible for equipment damage or personal injury due to mishandling. 1. Lift the Television display with the brackets attached and carefully hook the Brackets (2) over the top flange of the Wall Plate (1) as shown in (Fig.
-
Page 9: Step 5. Adjusting The Tilt
Step 5. Adjusting the Tilt To adjust the Tilt Angle of your TV you may need to loosen the Tilt Adjustment Screw as shown in Fig. 5. 1. Use the Allen Wrench (T) to loosen the Tilt Adjustment Screw about 1/2 turn. Then adjust the Tilt Angle of the TV to your liking. - Page 10 This page blank...
- Page 11 We warrant this product to you, the original purchaser at the time of purchase printed on a dated store receipt from an authorized ETEC retailer and for a period of six-years thereafter that our wall mount product and all it’s parts and components are free of defects in material and workmanship under normal use.
- Page 12 Schoenfeld International Inc. and ETEC 5001 American Boulevard West Suite 275 Bloomington, MN 55437 ©Schoenfeld International Inc. 2017 PN: EXSM2455 Rev 1.0 May, 2017...
