Swiveling, Tilting, Rotating
For technical assistance or troubleshooting please call
1-855-994-3832 or visit www.sibrandssupport.com
This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 77 lbs. See apparatus
instructions. Using with an apparatus heavier than the maximum weight indicated may result in instability and cause possible
injury.
READ THIS FIRST Read this entire manual! Do not attempt to install this product if you do not understand the instructions.
Contact a qualified mount installer if you have any doubts about a safe and secure mount installation, or if you are not sure what
specific wall materials you are attaching this mount to. Check all the parts carefully to make sure there are no missing or
damaged parts. Improper installation may result in damage to your TV, property, and personal injury.

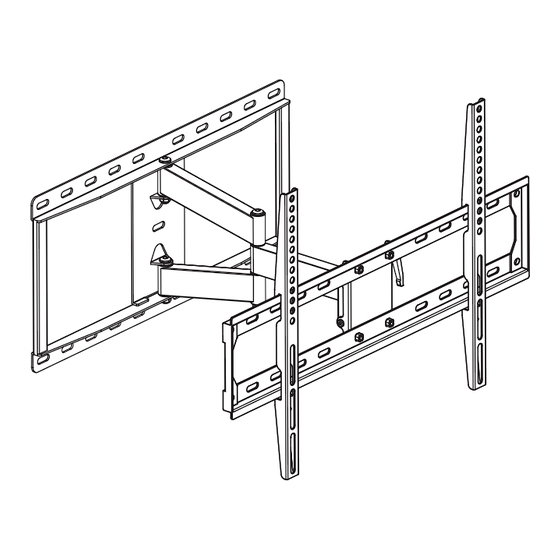

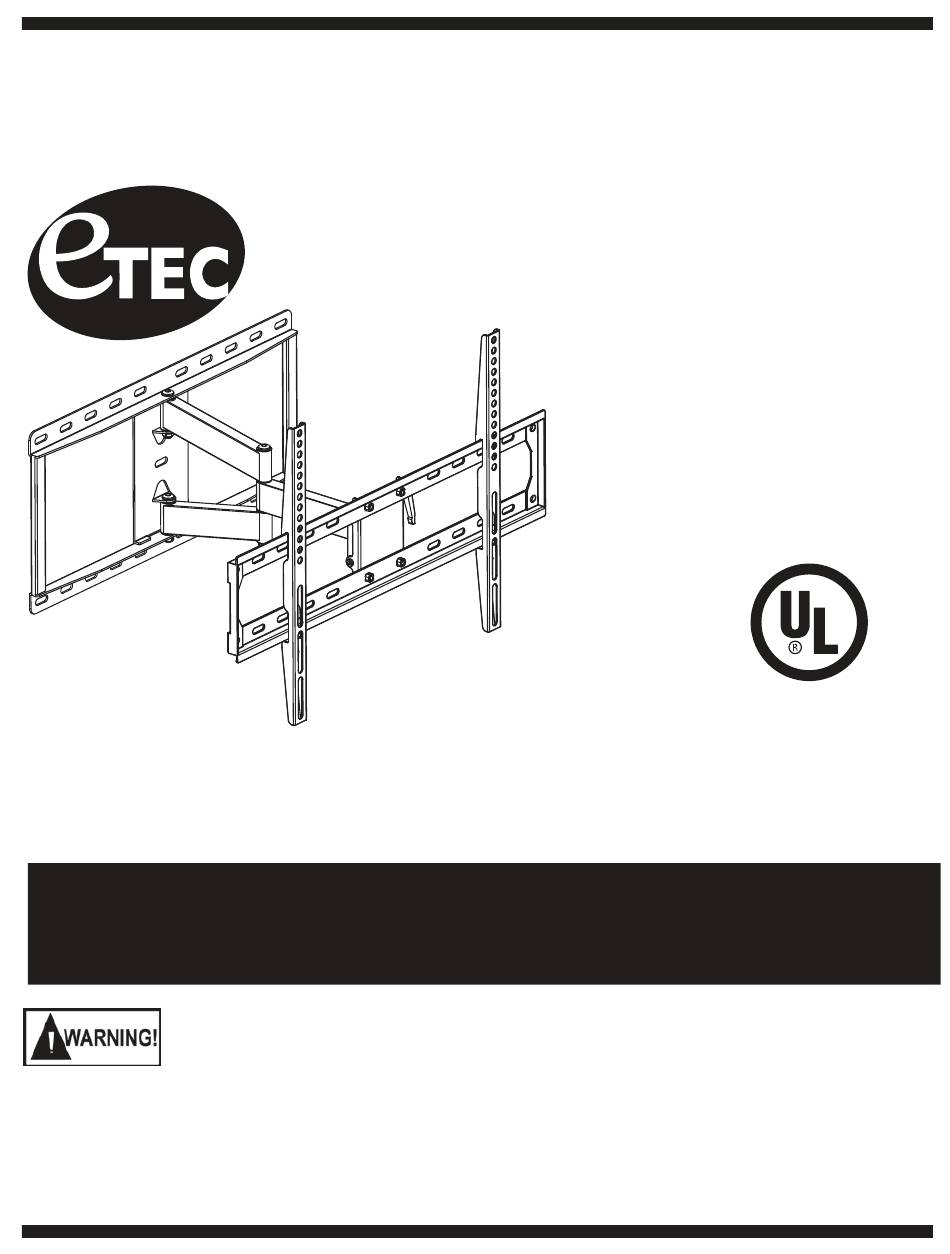

Flat Panel Wall Mount
Installation Guide
Model: EXTA7032
• Supports most 32" - 70" Televisions
• Maximum weight capacity: 77 lbs.
• Supports VESA Sizes up to 600x400
• Easy installation
• Tilt range: +5 to -15 degrees
• Swivel range: 180 degrees
• Extension range: 3.1" to 15.8"
• Rotation range: +5 to -5 degrees
Advertisement
Related Manuals for Etec EXTA7032
Summary of Contents for Etec EXTA7032
- Page 1 Swiveling, Tilting, Rotating Flat Panel Wall Mount Installation Guide Model: EXTA7032 • Easy installation • Tilt range: +5 to -15 degrees • Swivel range: 180 degrees • Extension range: 3.1” to 15.8” • Rotation range: +5 to -5 degrees • Supports most 32” - 70” Televisions •...
- Page 2 This product is intended only to mount a television of the indicated size and weight. Using this product to mount televisions heavier than the maximum weight capacity can damage equip- ment and cause personal injury. How and where you use your television wall mount is extremely important for Child Safety As you set up and use your new product, keep all of these safety tips in mind.
- Page 3 Brackets Wall Plate Concrete Anchor M4x12mm bolts M5/M6 spacers M5x12mm bolts M8 spacers M6x12mm bolts 10mm spacers M8x25mm bolts 2.5mm spacers M4x30mm bolts M4/M5 washers M5x30mm bolts M6 washers M6x35mm bolts M8 washers M8x35mm bolts Allen Wrench M8x50mm bolts Bubble Level...
- Page 4 Center the Brackets (2) vertically on the rear of the TV. Attach the Brackets (2) to the rear of the TV using four of the bolts (D-L) with the proper size washers (Q-S) as shown in Fig. 1a. Do not over tighten. If the back of the TV is not flat, or if the bolts are too long, it may be necessary to use Spacers (M-P) as shown in the Fig.
- Page 6 four four Fig. 3b Fig. 3a 2-1/2” (65mm) Make sure the Adjustment Handle is located in the Upper Right Side as shown in Fig. 3c Fig. 3c...
- Page 7 four are level and parallel. Make sure the horizontal holes are no closer than 16”. four 2.5” four 2.5” (65mm) Fig. 3d Make sure the Adjustment Handle is located in the Upper Right Side as shown in Fig. 3e Fig. 3e Step 4: Hang the television display...
- Page 8 1. Lift the Television display with the brackets attached and carefully hook the Brackets (2) over the top flange of the Wall Plate (1) as shown in (Fig. 4a) and carefully swing the display down so the lower part of the Brackets (2) fit over the lower bar of the Wall Plate (1) . Figure 4a 2.
-
Page 9: Step 5. Adjusting The Tilt
Step 5. Adjusting the Tilt 1. To adjust the Tilt Angle of the TV simply loosen the Tilt Adjustment Handle on the side of the wall mount by slowly turning the handle to release the tension. 2. Once the tension is released adjust the tilt of the TV to your desired setting and re-tighten the Tilt Adjustment Handle. -
Page 10: Step 7. Adjusting The Rotation
Step 7. Adjusting the Rotation 1. If necessary, the TV can be rotated from -5° to +5° by adjusting the two screws which connect the Wall Plate (1) to the TV Plate (2) as shown in Fig. 6. 2. To adjust the rotation, loosen these two screws with the Allen wrench (T) about 1/2 turn each, and gently slide the TV Plate (2) to the left or right depending on your needs. - Page 11 We warrant this product to you, the original purchaser at the time of purchase printed on a dated store receipt from an authorized ETEC retailer and for a period of six-years thereafter that our wall mount product and all it’s parts and components are free of defects in material and workmanship under normal use.
- Page 12 Schoenfeld International Inc and ETEC 5001 American Boulevard West Suite 275 Bloomington, MN 55437 ©Schoenfeld International Inc. 2017 PN: EXTA7032 Rev 1.0 May 2017...
