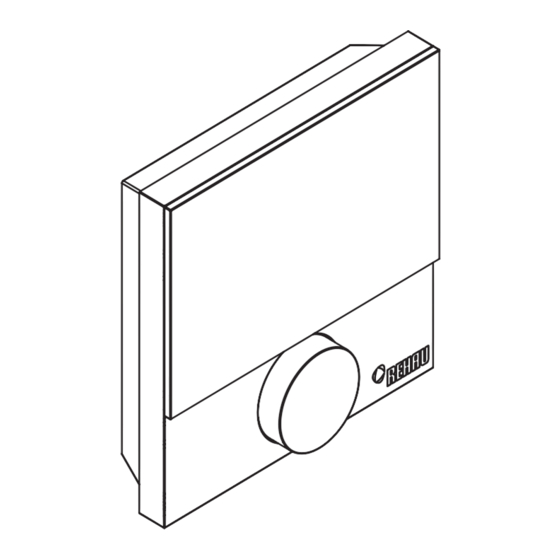

- Page 1 NEA SMART R ROOM CONTROL DISPLAY UNIT Installation and operating manual...
-
Page 2: Table Of Contents
CONTENT Safety More information on the NEA Smart control system and all Used symbols documentation available for download can be found at www.rehau.uk/neafamily Intended use General safety warnings Versions Technical data Compliance Installation Box contents Installation Operation Overview and display Operation Commissioning (incl. -
Page 3: General Safety Warnings
There is danger to life and limb. Intended use The NEA Smart R room control display unit (in the following abbrevi- ated as room control unit D) is a room control unit for the base station NEA Smart R 230 V. -
Page 4: Versions
Target temp. setting range 5 up to 30°C Target temp. resolution 0.2 K Actual temp. measuring 0 up to 40°C (int. sensor) range Measuring accuracy of internal NTC ±0.3 K Tab. 2-1 Technical data NEA Smart R room control unit D... -
Page 5: Installation
3 INSTALLATION Box contents Installation ~ 30 cm ~150 cm NEA Smart remote sensor Accessories: NEA Smart remote sensor Fig. 3-1 Box contents Fig. 3-2 Information on the mounting location of the room control unit D... - Page 6 5b 5 5b 6 Ø 3,5 mm Fig. 3-3 Installation and connection of the room control unit D...
-
Page 7: Operation
4 OPERATION Overview and display Display with function icons Room temperature Time Control knob Fig. 4-1 Technical data NEA Smart R room control unit D Symbol Meaning Symbol Meaning Menu "Lifestyle" active Night mode active Menu "Parameters" active Condensation detected, cooling deactivated Menu "Service"... -
Page 8: Operation
Table 4-3 (page 9). 2. Activate the pairing function at the base station for the desired heating zone (see manual NEA Smart R base station 230 V). It may take up to 10 minutes before changes of global lifestyle 3. -
Page 9: Lifestyle Functions
Lifestyle functions Overview parameters This menu is needed only for basic setup. Lifestyle functions Symbol Steps - Press the control knob. Party - Activate by pressing. - Select the menu “Parameters” and activate it by pressing again. Deactivates the - Set the duration in hours (hh) temperature setback for - Confirm your entry by XX hours... -
Page 10: Parameters
Parameters Parameters Symbol Steps Parameters Symbol Steps Temperature for - Activate and set the desired Base station software - Displays the software presence in temperature. version XX-XX version of the base station heating mode - Confirm by pressing. - Displays the software Temperature - Activate and set the desired Software version... -
Page 11: Troubleshooting, Cleaning And Decommissioning
5 TROUBLESHOOTING, CLEANING AND DECOMMISSIONING Troubleshooting Changing the batteries Error messages are displayed with the corresponding symbols Danger to life in case of swallowing flashing. Small children can swallow batteries/control knobs. Do not leave the room control unit unattended during a battery change. Display Meaning Handling... - Page 12 Working conditions and use under conditions for which the product was not intended and over which we have no influence exclude any claim resulting from our information. We recommend that a suitable check is made as to whether the REHAU product is suitable for the envisaged purpose. Application, use and processing of the products is carried out beyond the scope of our control and are therefore carried out exclusively at your own responsibility.
