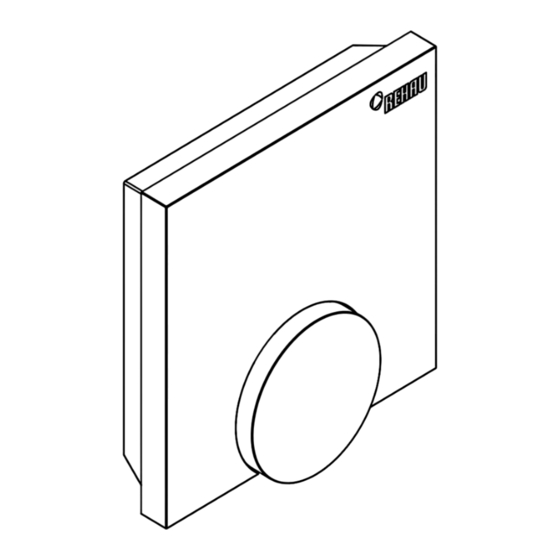

- Page 1 NEA SMART R ROOM CONTROL UNIT Installation and operating manual...
-
Page 2: Table Of Contents
CONTENT Safety More information on the Nea Smart control system and all Used symbols documentation available for download can be found at Intended use General safety warnings www.rehau.com/neasmart Versions Technical data Compliance Installation Box contents Installation Operation Overview and display Commissioning (incl. -
Page 3: Safety
R 230 V. The device is intended - for the control of the base station Nea Smart R 230 V. - the registration of the room temperature and the setting of the desired target temperature in the allocated heating zone. -
Page 4: Versions
85 x 85 x 26 mm Target temp. setting range 10 to 28 °C Target temp. resolution 0.25 K Actual temp. measuring range 0 to 40°C (int. sensor) Measuring accuracy of ±0.3 K internal NTC Tab. 2-1 Technical data Nea Smart R room control unit... -
Page 5: Installation
3 INSTALLATION Box contents Installation ~30cm ~150cm Fig. 3-1 Box contents Fig. 3-2 Notes on the mounting location of the room control unit... - Page 6 Ø 3,5 mm Fig. 3-3 Installation and connection of the room control unit...
-
Page 7: Operation
2. Activate the pairing function at the base station for the desired At the base station, the heating zone connected to this room control heating zone (see manual base station Nea Smart R 230 V). unit is changed for 1 minute, in other words switched on or off 3. -
Page 8: Troubleshooting, Cleaning And Decommissioning
5 TROUBLESHOOTING, CLEANING AND DECOMMISSIONING Troubleshooting Changing the batteries The error signalling is carried out via the heating zones LED on the Danger to life in case of swallowing base station assigned to the room control unit. Small children can swallow batteries/rotating knobs. Do not leave the room control unit unattended during a battery change. - Page 9 Guangzhou, +86 20 87760343, guangzhou@rehau.com Beijing, +86 10 64282956, beijing@rehau.com Shanghai, +86 21 63551155, shanghai@ rehau.com Chengdu, +86 28 86283218, chengdu@rehau.com Xian, +86 29 68597000, xian@rehau.com Shenyang, +86 24 22876807, shenyang@rehau.com QingDao, +86 Bogota, +57 1 898 528687, bogota@rehau.com Praha, +420 272 190111, praha@rehau.com...
