Sureguard Pingg-String User Instructions page 5

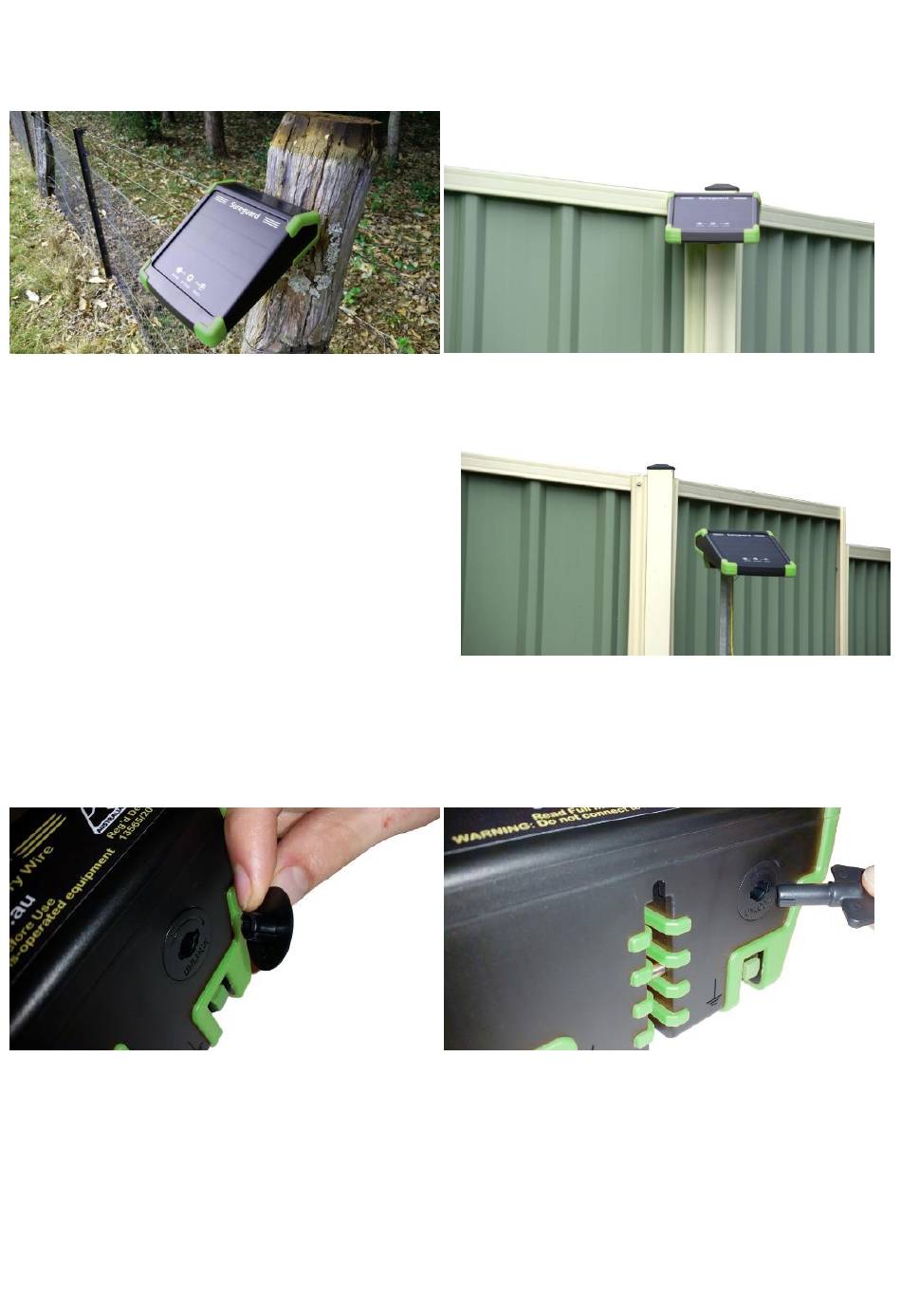

Screw Mounting
Insert a single M4 screw (4mm with head no more than 9mm) into timber, steel or plastic
fencing or posts to hang the Energiser using the screw mounting option (see Key #3 above).
Steel Post Anti-Theft Mounting
You can mount the Energiser on top of most
sizes of steel posts (see Key #4 & #2 above).
The Energiser locks to the post using the
supplied key to open the internal mounting
bolt. Locking Procedure: 1/ Remove the
rubber sealing plug and insert the supplied
key (see Key #2). 2/ Align the mounting bolt
(see Key #4) with the top hole in the post. 3/
Rotate the key anticlockwise to open the
mounting bolt. 4/ Push the Energiser onto the post. 5/ Rotate the key clockwise to lock. 6/
Make sure the mounting bolt is passing through the hole in the steel post. The Energiser
should not come off. Remove the key. 7/ Put the rubber sealing plug back into the keyhole
as a weather seal.
5
