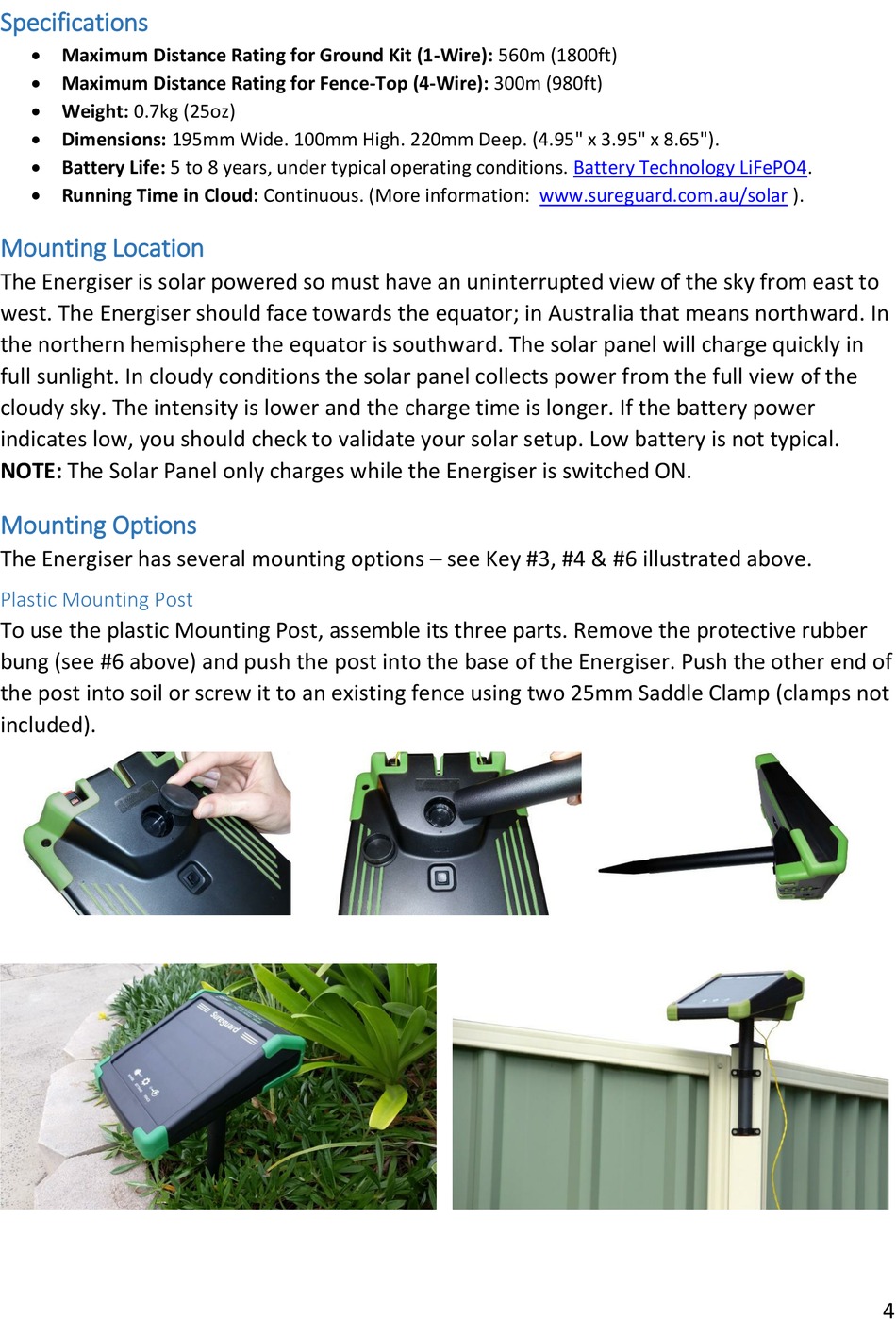

Specifications

 Maximum Distance Rating for Ground Kit (1-Wire): 560m (1800ft)
 Maximum Distance Rating for Fence-Top (4-Wire): 300m (980ft)
 Weight: 0.7kg (25oz)
 Dimensions: 195mm Wide. 100mm High. 220mm Deep. (4.95" x 3.95" x 8.65").
 Battery Life: 5 to 8 years, under typical operating conditions.
 Running Time in Cloud: Continuous. (More information:

Mounting Location

The Energiser is solar powered so must have an uninterrupted view of the sky from east to
west. The Energiser should face towards the equator; in Australia that means northward. In
the northern hemisphere the equator is southward. The solar panel will charge quickly in
full sunlight. In cloudy conditions the solar panel collects power from the full view of the
cloudy sky. The intensity is lower and the charge time is longer. If the battery power
indicates low, you should check to validate your solar setup. Low battery is not typical.
NOTE: The Solar Panel only charges while the Energiser is switched ON.

Mounting Options

The Energiser has several mounting options – see Key #3, #4 & #6 illustrated above.
Plastic Mounting Post
To use the plastic Mounting Post, assemble its three parts. Remove the protective rubber
bung (see #6 above) and push the post into the base of the Energiser. Push the other end of
the post into soil or screw it to an existing fence using two 25mm Saddle Clamp (clamps not
included).
Battery Technology
www.sureguard.com.au/solar
LiFePO4.
).
4
