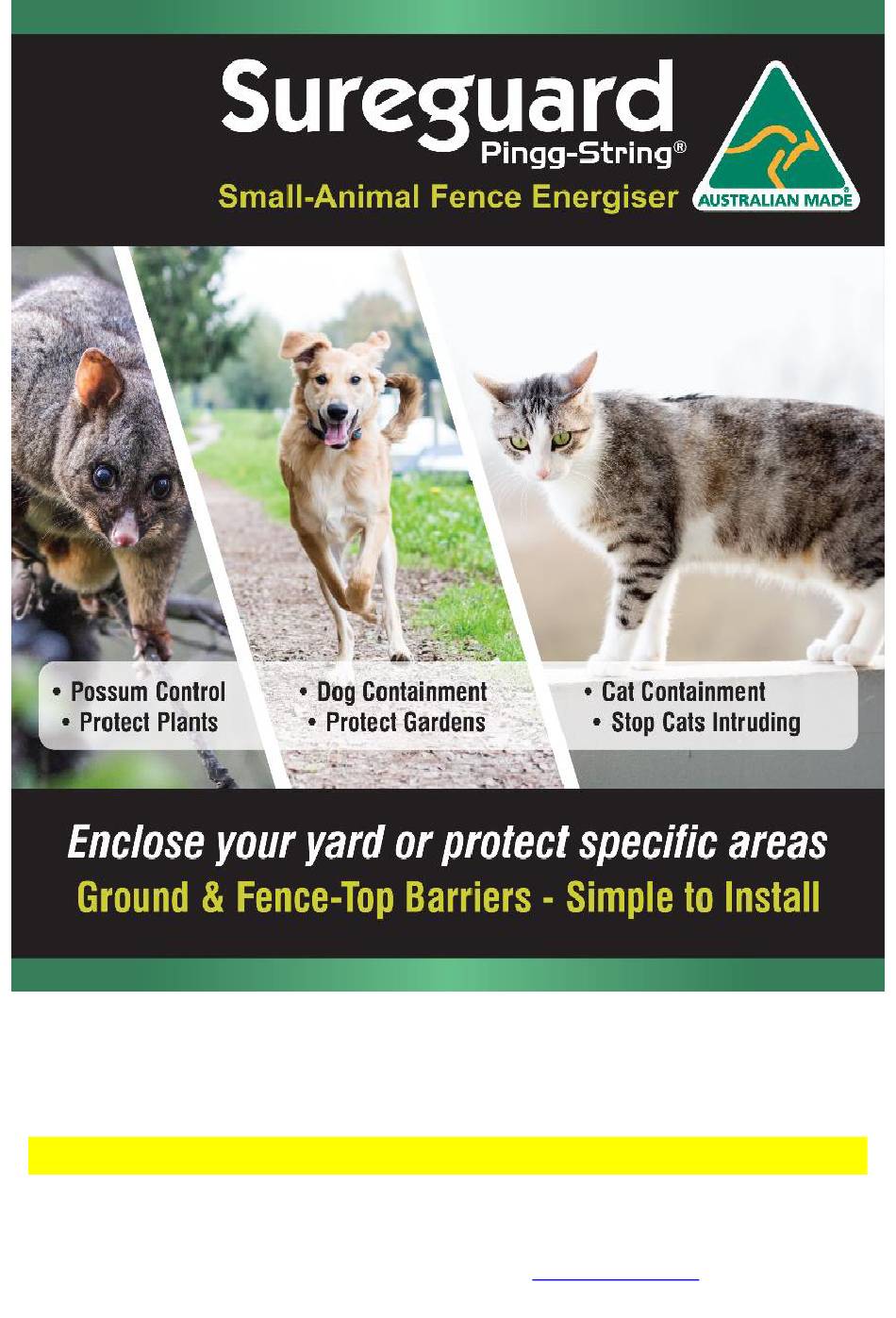

- Page 1 User Instructions To be read in conjunction with the Pingg-String Installation Guide © Sureguard 2016 www.sureguard.com.au – Revision #3A August 2016...
- Page 3 Fence-Top Barrier (for Cats & Possums) Both are powered by this Pingg-String Energiser. The barrier kits are sold separately so you only need to buy what you need. For details, refer to the Pingg-String Installation Guide. Solar Powered Fence Energiser...
-
Page 4: Specifications
Battery Technology LiFePO4. Running Time in Cloud: Continuous. (More information: www.sureguard.com.au/solar Mounting Location The Energiser is solar powered so must have an uninterrupted view of the sky from east to west. The Energiser should face towards the equator; in Australia that means northward. In the northern hemisphere the equator is southward. - Page 5 Screw Mounting Insert a single M4 screw (4mm with head no more than 9mm) into timber, steel or plastic fencing or posts to hang the Energiser using the screw mounting option (see Key #3 above). Steel Post Anti-Theft Mounting You can mount the Energiser on top of most sizes of steel posts (see Key #4 &...
- Page 6 Energiser to the Pingg-String fence. Please refer to Figure 24 of the Pingg-String Installation Guide for wiring details. Cut two pieces of Pingg-String Cable of suitable length to connect each terminal of your Energiser to your Pingg-String fence. Remove at least 12mm of insulation off the end you will place into the terminals.
- Page 7 GREEN Normal operation. The Pingg-String Wire is active. Pingg-String fence wire has low power. FENCE Pingg-String fence wire has very low power. Rectify immediately! RED FLASHING BLUE You have selected the ON/OFF Timer. The fence is currently inactive. BLUE FLASHING Only happens when switched ON.
- Page 8 Touch once (Function #1): Reset all options to factory default, then test hardware in the following order: 1/ LEDs. 2/ Alarm Buzzer. 3/ Solar charger. 4/ Reboot automatically after 20 seconds. Touch twice (Function #2): Timer is switched OFF. Energiser will operate 24 hours a day.
- Page 9 Live wire is too much; see Specifications for details. It could also be caused by a fault condition on the fence. TIP: If you substituted non-standard fence materials or cable then replace them with the properly engineered parts from Sureguard.
- Page 10 Comprehensive Troubleshooting Guide: Please visit Sureguard’s troubleshooting webpage for more help with fence and animal control issues.: www.sureguard.com.au/page/troubleshooting Full Terms and Conditions at www.sureguard.com.au/terms...
