AquaSpense™
and AquaSpense SL™
User's Manual
Whip Mix Corporation
361 Farmington Ave. • P.O. Box 17183 • Louisville, KY 40217-0183 USA
502-637-1451 • 800-626-5651 • Fax 502-634-4512 • www.whipmix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaSpense and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whip Mix AquaSpense

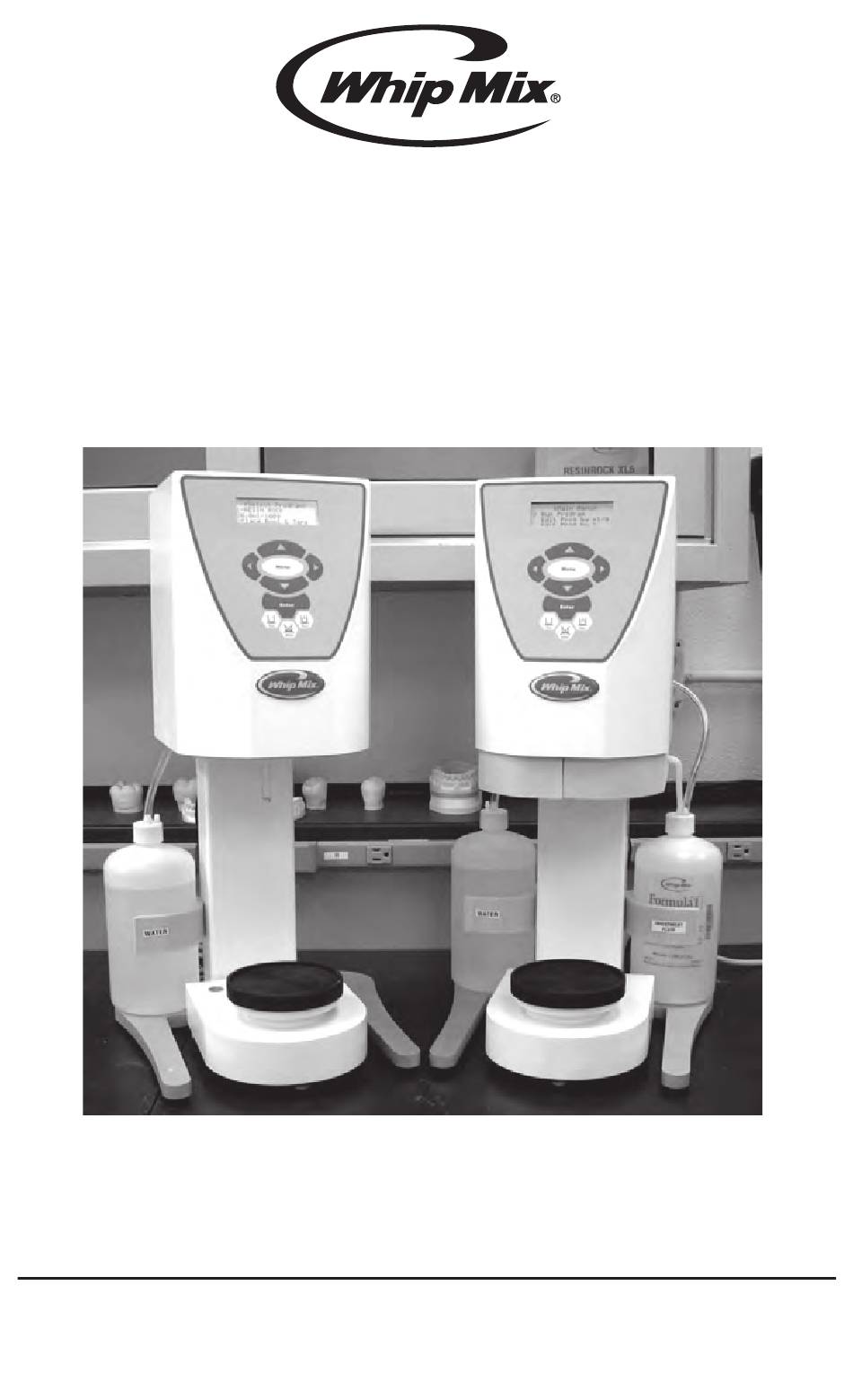

  • Page 1 AquaSpense™ and AquaSpense SL™ User’s Manual Whip Mix Corporation 361 Farmington Ave. • P.O. Box 17183 • Louisville, KY 40217-0183 USA 502-637-1451 • 800-626-5651 • Fax 502-634-4512 • www.whipmix.com...
  • Page 3: Table Of Contents

    Special Liquid Hose and Bottle Hose) 09552 TABLE OF CONTENTS Front/Rear View ..............2-3 Set Up ..................4 Programming the AquaSpense SL ..........5 Programming the AquaSpense (Water only) ......6 Running a Program ..............6 Special Functions Calibration ..............7 Scale Mode ..............8 Set Language ..............8 Erase a Program ............8...
  • Page 4 FRONT VIEW Note: Water only units do not have the Arm to Access Hose or the Special Liquid bottle or holder. ARM TO ACCESS HOSE SCALE SPECIAL LIQUID DISTILLED WATER...
  • Page 5: Front/Rear View

    REAR VIEW SCALE SOCKET ON/OFF SWITCH POWER CORD SOCKET SPECIAL LIQUID DISTILLED WATER...
  • Page 6: Set Up

    SET UP After unpacking the dispenser and all of its accessories, please follow these installation instructions. Place the dispenser on a level surface. Position scale between the base legs of the dispenser (shown on page 2). Align scale so that the scale cover is directly beneath the dispensing hose.
  • Page 7: Programming The Aquaspense Sl

    PROGRAMMING THE AQUASPENSE SL Programs can be added or edited in two ways. The first method is g/mL, a program based on grams of powder and mL of water and/or liquid (i.e. 100 grams of powder - 18 mL special liquid and 5 mL water). The second method is by grams of powder and percentage (%) of special liquid (i.e.
  • Page 8: Programming The Aquaspense (Water Only)

    20% water). 10. Press the Enter button. 11. The screen should display Program Saved. PROGRAMMING THE AQUASPENSE (WATER ONLY) 1. Press the Menu button. 2. Use the arrow buttons to select Add Program. 3. Press the Enter button.
  • Page 9: Special Functions

    6. Remove the bowl from the scale and place the desired powder into the bowl. 7. Return the bowl to the scale 8. Press the Start button. The dispenser will begin to dispense the liquids separately, beginning with water and finishing with special liquid. The display will indicate when the program is finished and the unit will beep until the bowl is removed from the scale.
  • Page 10: Scale Mode

    16. The screen will display Yes or No. If yes is selected, the unit will begin to calibrate the scale. If no is selected, the display will return to the main menu. 17. Check calibration with the weight from above using Scale Mode. Scale Mode: Scale mode will cause the unit to operate like a laboratory scale.
  • Page 11: Purge Liquid (Sl Units Only)

    Purge Liquid (SL Units only): This function allows you to flush the special liquid hose. This may be useful if changing between bottles that contain differing liquids, while using the same cap and hose assembly. 1. Press the Menu button. 2.
  • Page 12: Replacing The Special Liquid Hose

    Replacing the Special Liquid Hose: Fig. 1 To replace the special liquid hose, losen the SL bottle cap to depressurize the bottle and swing open the arm as shown. Remove the white hose from the center nodule of the cap, place your thumb on the hose nearest the white pinch valve (Fig.
  • Page 13: Troubleshooting

    TROUBLESHOOTING If you are unable to resolve a problem with your unit, please contact technical service at 1-800-626-5651 x. 269. Problem Solution Screen lights up, but no Check the scale cable connection words are displayed Will not dispense water - Ensure there is sufficient water in the container OR Out of Water error - Ensure the clear hose is fully seated on the center of the bottle cap...
  • Page 14: Specifications

    SPECIFICATIONS Dimensions: 30 cm W x 59 cm H x 33.5 cm D (11 3/4’’ W x 23 1/4” H x 13 1/8” D) Weight: 9.3 kg (20.5 lbs.) Voltage: (SL Unit) 110-120 VAC, 50/60 Hz, 1A (SL Unit) 200-240 VAC, 50/60 Hz, .5A (Water Only) 100-240 VAC, 50/60 Hz, 1A User Programs: Display Characters:...
  • Page 16 MPL5600 11/06...
