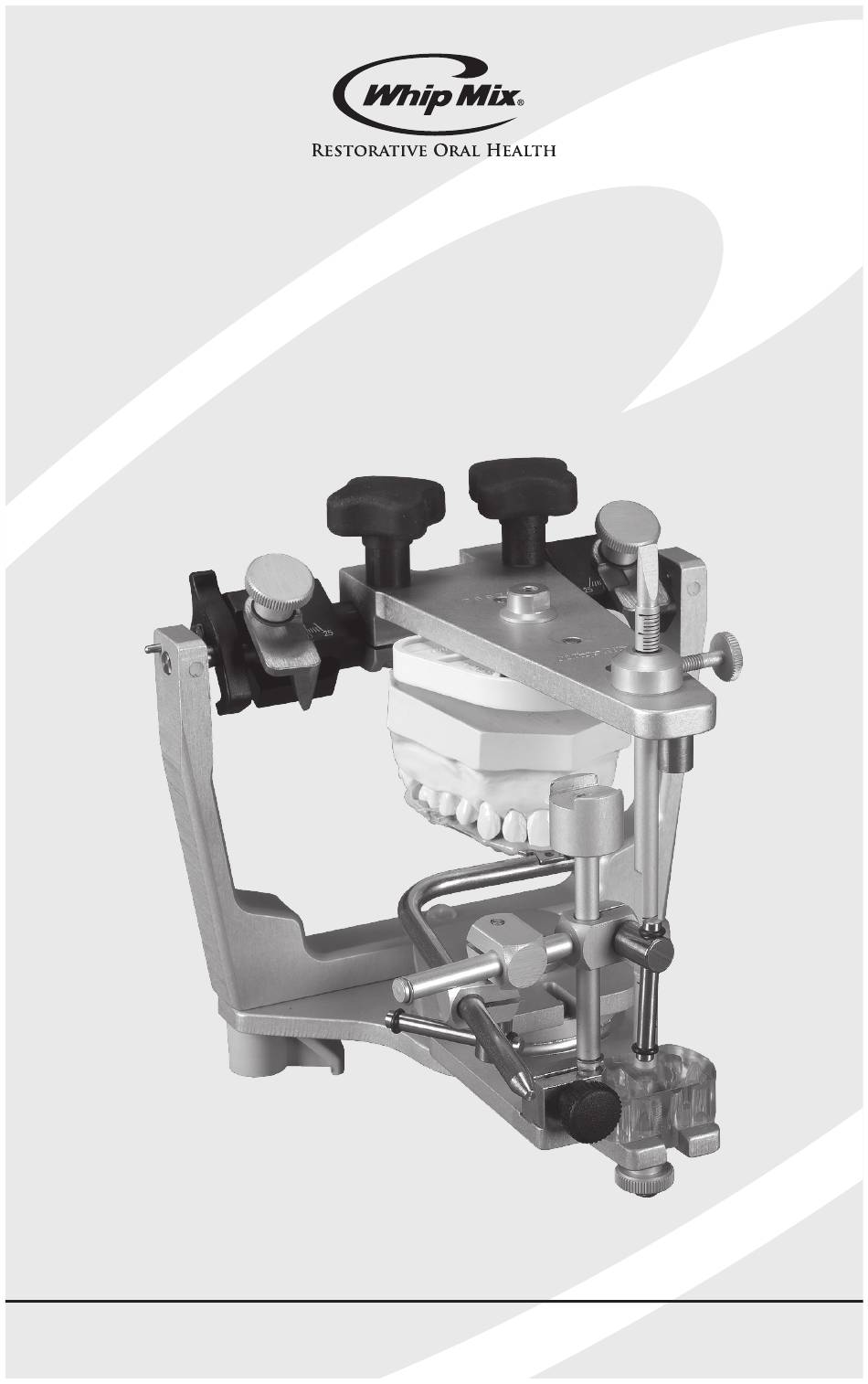

- Page 1 Facebow Registration Instructions Whip Mix Corporation • 361 Farmington Ave. • P.O. Box 17183 • Louisville, KY 40217-0183 USA 502-637-1451 • 800-626-5651 • Fax 502-634-4512 • www.whipmix.com...
- Page 2 (Figure 2 and 3) Figure 2 Figure 3 A rubber band may be easily positioned on the facebow to aid in its manipulation. (Figure 4) Note: The nasion relator assembly moves left and right along the crossbar, and the facebow caliper design allows the arms to move equal distances during the opening and closing motions.
- Page 3 Center the nasion relator assembly on the crossbar of facebow. Loosen the thumbscrew on top of the facebow that allows both arms to slide apart. If using the Whip Mix metal facebow, you will need to loosen the three thumbscrews on top of the facebow.
- Page 4 Support the horizontal bar with one hand and tighten the thumbscrew on the horizontal rod. (Figure 10) Verify the facebow is level and all thumbscrews are tight. 10. Remove the facebow from the patient in a similar manner. Loosen the thumbscrew and slide the nasion relator away from the patient’s nose.
- Page 5 Instructions for Attaching Facebow Transfer Assembly 11. With the patient’s help, loosen the center thumbscrew and remove the facebow from the patient’s ears. 12. Together, remove the facebow and bitefork from patient. Note: The transfer jig and biteforks for all...
- Page 6 Slide the nasion relator assembly to the patient’s left, away from the center of the horizontal crossbar. Loosen the center thumbscrew on the top of the facebow. Continue to use the rubber band on the facebow as it aids in manipulation.
- Page 7 Figure 21 Because the guidance of this instrument is part of the upper frame and the facebow is, in effect, one piece with this fram, the facebow bitefork is in fixed relation to the upper frame. (Figure 22) Figure 22...
- Page 8 Whip Mix Corporation 361 Farmington Avenue Louisville, KY USA 40209 Toll-Free: 800-626-5651 Phone: 502-637-1451 Fax: 502-634-4512 www.whipmix.com MPL30101 Rev A (01/2017)
